PA-2100/2200
CD CASSETTE AMPLIFIER
4
PA-2100/2200
CD CASSETTE AMPLIFIER

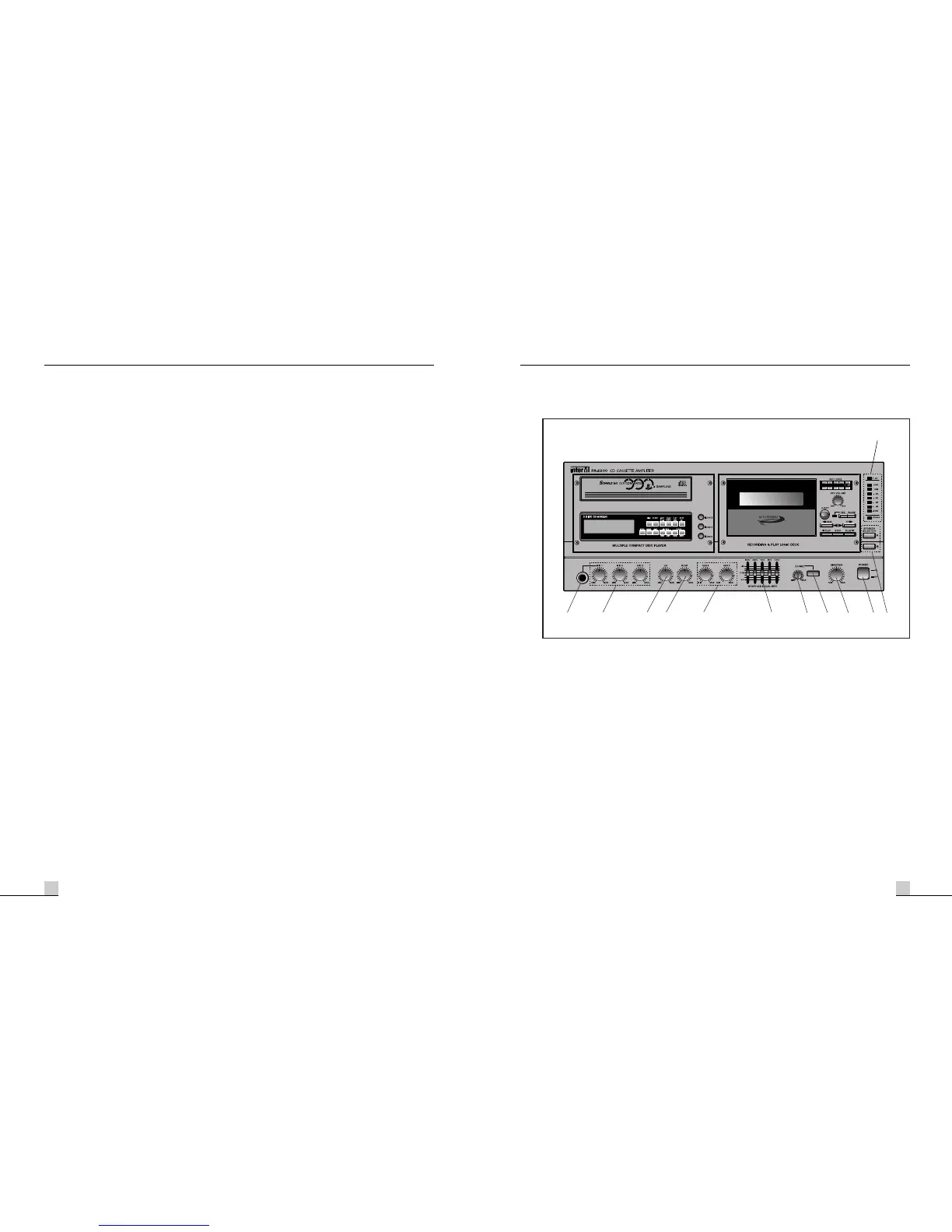

Front Panel
Front Panel
1. 5-BAND GRAPHIC EQUALIZER
A 5-band graphic equalizer is provided for tonal-quality adjustments to the main output.
2. CHIME SWITCH
Depressing this switch will cause a 4-tone chime signal to be applied to the main output. This is useful prior to
paging (via mic1) to get the attention of the listeners.
3. CHIME VOLUME CONTROL
This permits signal-level control of the Chime relative to the other inputs.
4. MASTER VOLUME CONTROL
This determines the main output signal level of the unit.
5. OUTPUT LEVEL INDICATOR
This indicates the main output signal level relative to the rated power output which is marked as 0dB.
6. SPEAKER SELECTION SWITCH
These switches assign the main output signal to the corresponding speaker output terminals on the rear of the
unit. Both outputs may be used at the same time, but caution should be used so that you do not overload the
capability of the amplifier. If both “A” and “B” are switched OFF no signal will be present on the speaker
output(s).
1112 10 98 13247
5
6
3
7
10
13
-12 -5 0 +3 6
R
Description
Description
- PA-2100/2200
A CD, cassette, mixer/amp capable of delivering 100/200 Watts of power.
Features
Features
- CD magazine capable of holding 3 CDs
- Cassette deck with play and record capabilities
- 4 ohm, 70 Volt, or 100 Volt outputs
- 5-band equalizer
- Record level indicator
- Individual Power and Protect mode indicators
- Main output level indicator
Accessories
One detachable AC power cord is provided for use with this product.
