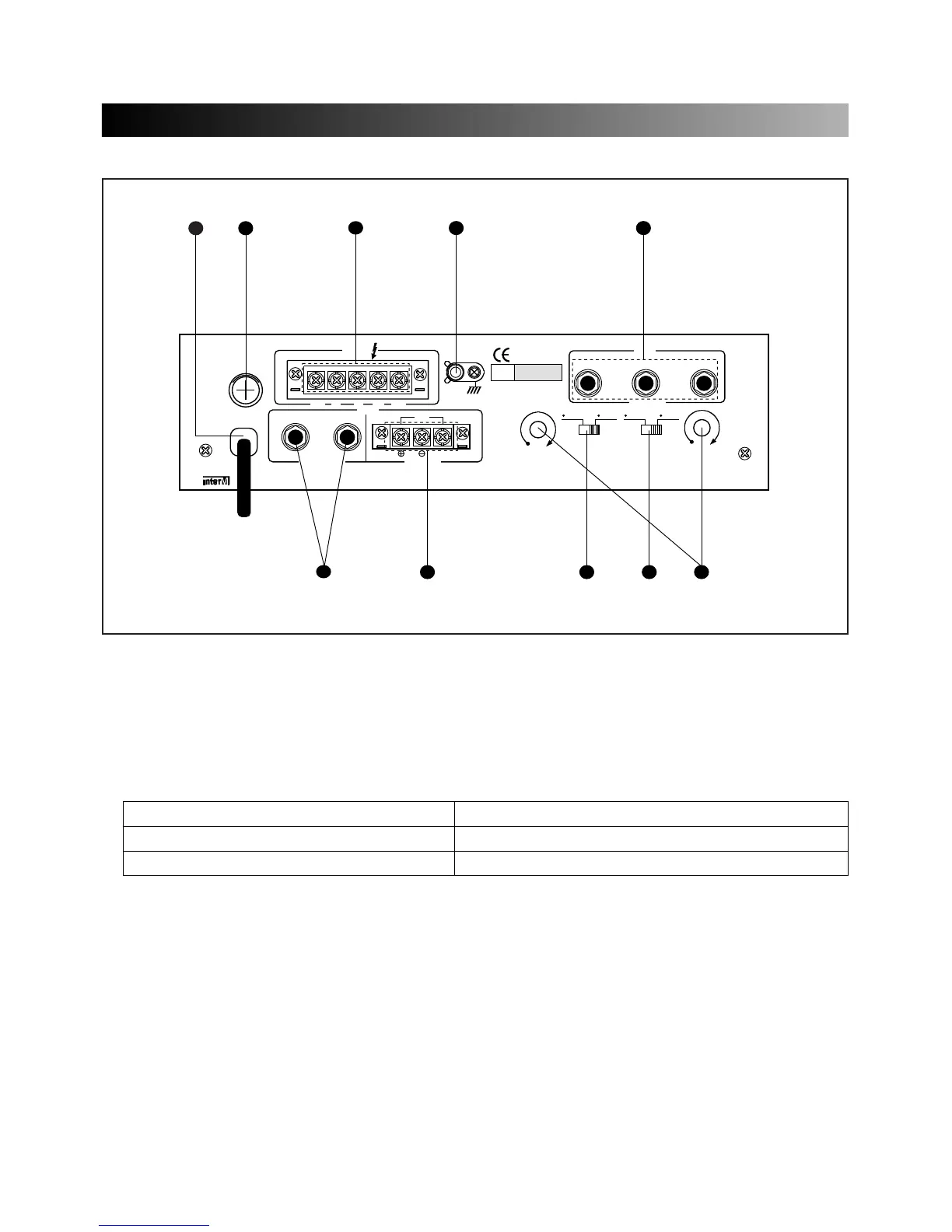

REAR PANEL CONTROLS
89
10
1. AC CORD
Plug this AC input cord into AC outlet.
2. FUSE HOLDER (AC)
This fuse holder contain AC fuse, replace only with same type fuse when it is blown out. If it continuously
blow, stop replacing fuse and refer servicing to qualified personnel.
3. SPEAKER OUTPUT TERMINAL
This terminal is for speaker wire connection. You can select one of 4 ohms, 8 ohms, 70 volts and 100 volts.
Be sure not to make the total impedance less than rated impedance.
4. GND TERMINAL
This is ground terminal to be connected with chassis of the turntable etc, to reduce hum to minimum. To
further minimize hum, it may be necessary to connect this terminal with a wire to the nearest water pipe
which goes directly to real ground.
5. MIC 1, 2, 3 INPUT (PHONE JACK)
These phone jacks are for the Mic 1 and Mic 2 input. Input sensitivity and impedance in PHONE JACK
2mV/600Ω.
