PA-920/PA-935 Mixer/Amplifier

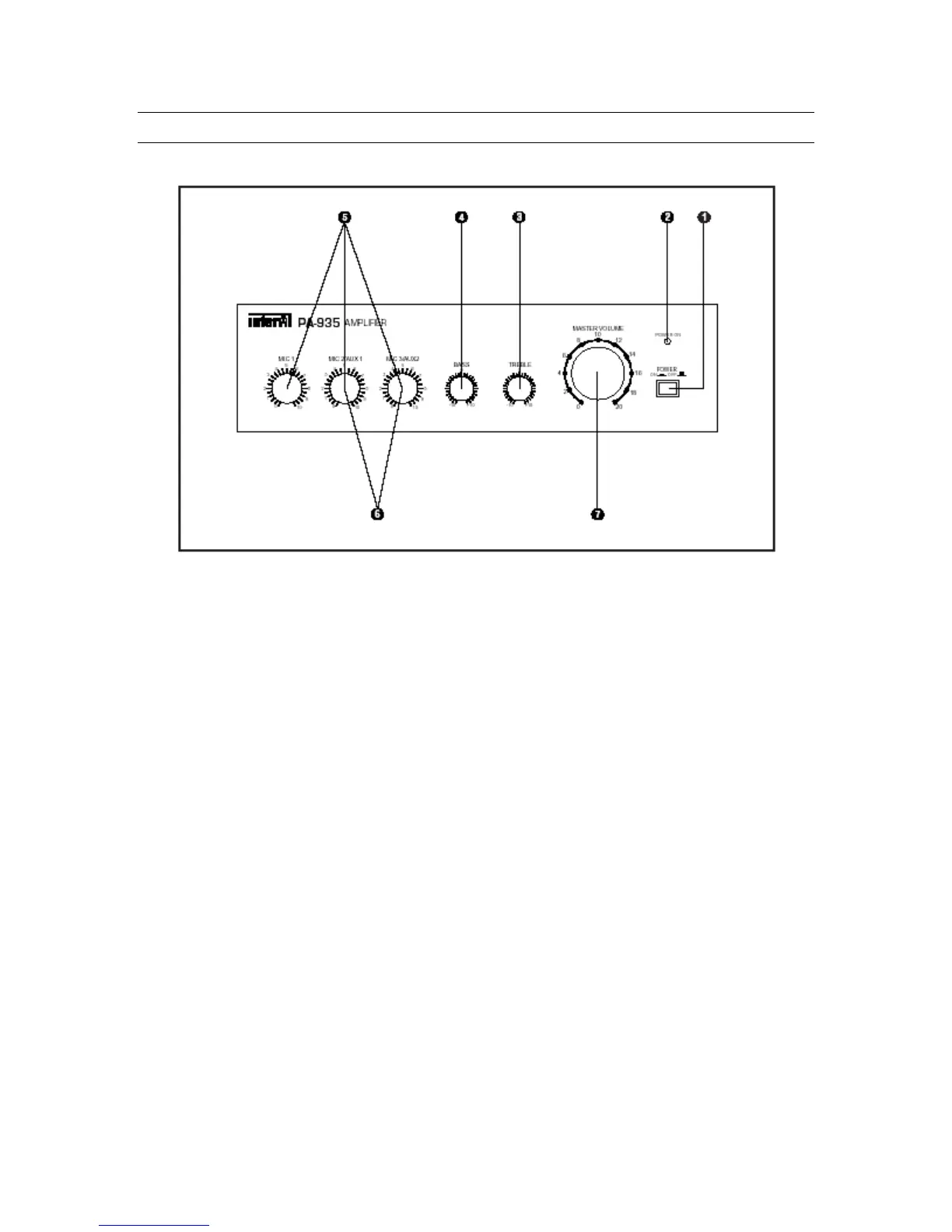

Front Panel Controls
1. Power Switch
Pressing this switch switches the unit on, as indicated by the Power LED (2) above
the switch. Pressing it again switches the unit off.
2. Power LED
When the unit is switched on, the Power LED will glow steadily.
3. Treble Control
This knob controls the high frequency response, by adding up to 12dB of cut
(decrease) or boost (increase).
4. Bass Control
This knob controls the low frequency response, by adding up to 12dB of cut
(decrease) or boost (increase).
5. Mic Volumes 1-3
These knobs control the volume of Mic Inputs 1-3.
6. Aux Volume 1-2
These knobs control the volume of Aux Inputs 1 and 2.
7. Master Volume
This knob controls the overall volume of the PA-920/935 output.
7
