Inter-m PA-9312 Operating Manual

PA-9312/PA-9324/PA-9336 Power Amplifier

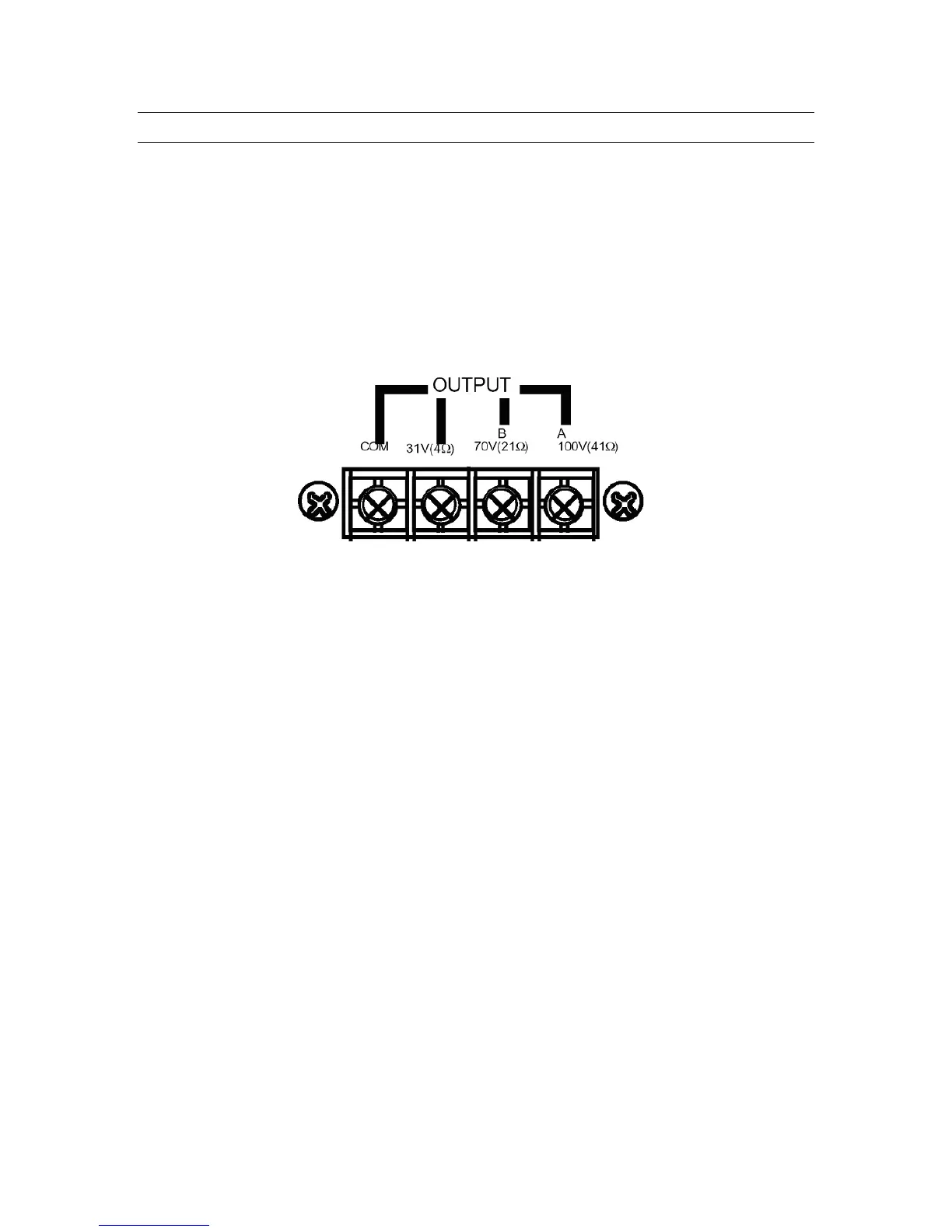

Connecting Speakers
Before connecting speakers to your PA-9312/PA-9324/PA-9336 unit, be sure to disconnect
the AC power cable. Make certain that the total impedance is not less than the rated
impedance indicated.
For 4 speakers, connect the positive (+) connector to the 31V(4) terminal and the
negative (-) connectors to the COM terminal.
For high-voltage distributed systems, connect with matching transformer to the COM and
either 70V or 100V terminals. Be certain that the total impedance does not equal less
than the rated impedance.
11
