PA-9312/PA-9324/PA-9336 Power Amplifier

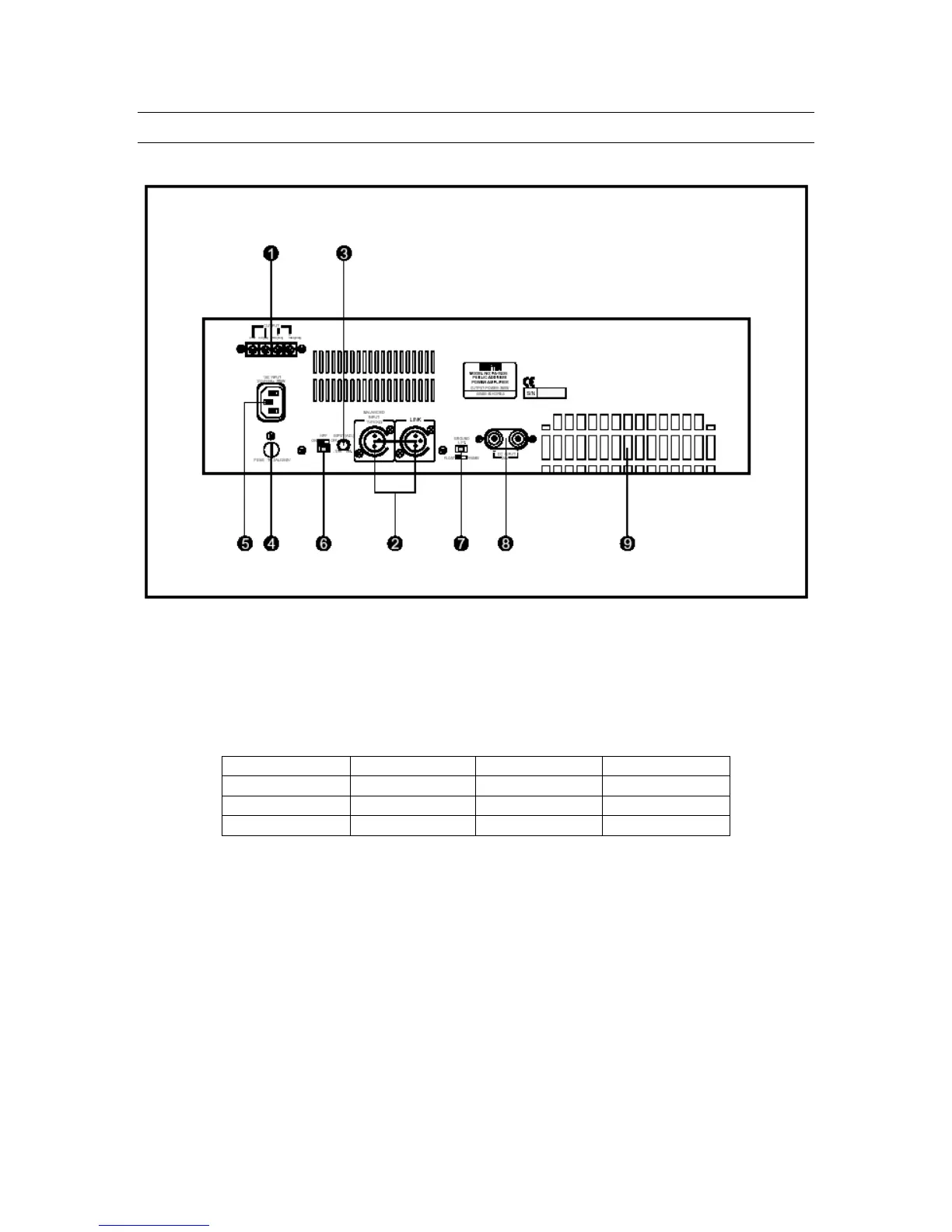

Rear Panel Controls
1. Speaker Output Terminals
These terminals are used to connect speakers to the unit. You may select either
4 or 8 conventional operation, or High Impedance operation at either 70V or
100V. Make certain the combined impedance of the speakers is equal to or
higher than the rated output impedance of the amplifier.
MODEL 4Ω 70V 100V
PA-9312 22V 42 83
PA-9324 32V 21 42
PA-9336 38V 13.6 27.8
2. Audio Inputs
These balanced XLR jacks are for the input of audio signal.
3. Level Control
This knob controls the amplifier’s output level, from –12dB to 0dB (reference input
of 0dB at 1V). Rotating the knob clockwise increases the level, and rotating it
counter-clockwise decreases the level.
4. Fuse Holder
This holder contains the AC overload protection fuse. If the fuse has blown out,
replace it with a fuse of the same type and rating.
If the fuse continues to blow, refer servicing to a qualified service technician.
