PP-9214 Preamplifier

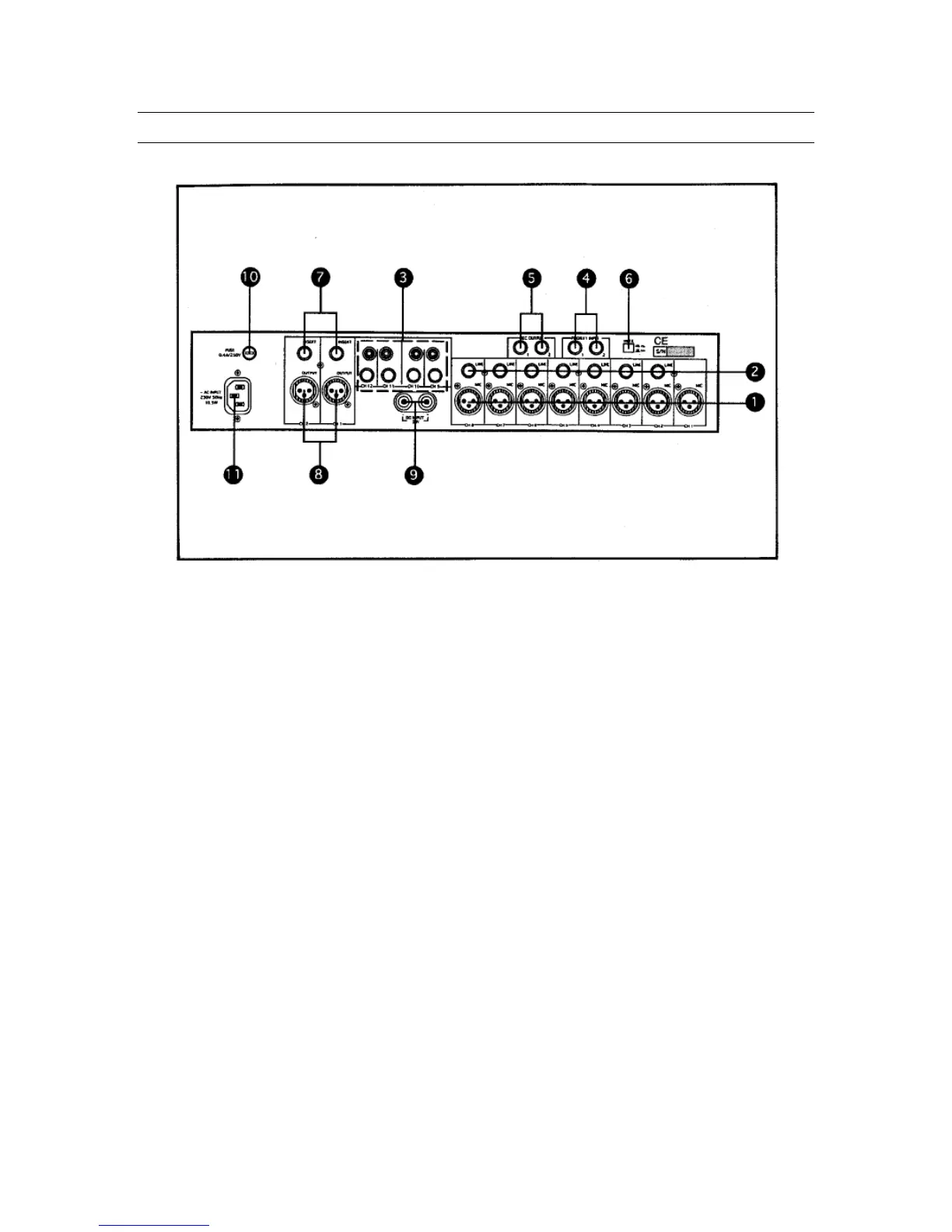

Rear Panel Controls
1. Mic Inputs 1-8
Mic-level inputs on balanced three-pin XLR connectors.
2. Line Inputs 2-8
Line-level inputs on balanced 1/4" phone connectors.
3. Line Inputs 9-12
Line-level inputs on unbalanced RCA and 1/4" phone connectors. These are
provided as two sets of stereo inputs (9/10 and 11/12).
4. Priority Input
These two unbalanced 1/4" line-level inputs are provided for priority connection
of chime/siren equipment. When input signal is present on these inputs, all other
audio inputs except Channel 1 are automatically muted.
5. Rec Output
These two unbalanced 1/4" line-level inputs are provided for connecting to an
external recording device.
6. Mute Switch
When this switch is pressed, priority muting is activated, and all signals except
Channel 1 and Priority Input are muted.
7. Inserts
These unbalanced 1/4" TRS jacks are provided for input of an audio source before
the master fader. The input signal is unaffected by the Channel Input levels.
