Inter-m PW-642 User Manual

PROGRAM TIMER
4
PW-642

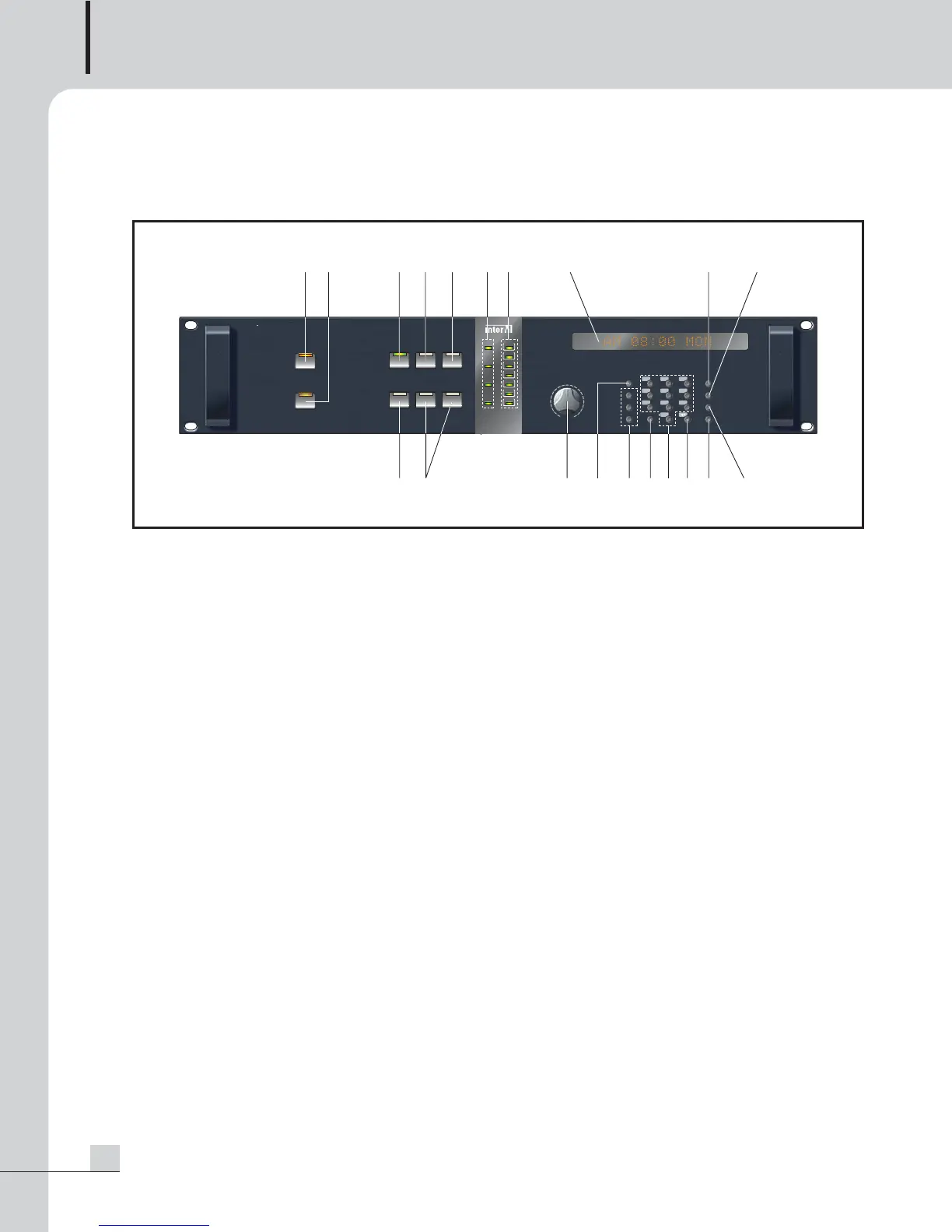

Front Panel
Front Panel
1. AC OUTLET BUTTON
This is a button to turn ON/OFF the AC power and the REMOTE OUTPUT contact terminal of the rear AC
OUTLET No.1, 2.
Pressing this button lengthily in the STANDBY mode, you can adjust output time of AC power.
2. OUTPUT BUTTON
This is a button used to turn MELODY channel output ON/OFF.
If the OUTPUT button is turned off, no output is done even though MELODY is generated.
3. VOICE BUTTON
This is a button used when changing VOICE reservation setting and setting.
4. MELODY BUTTON
This is a button used when changing MELODY generation, reservation setting and setting.
5. AC BUTTON
This is a button used when changing reservation setting and setting of AC outlet.
6. CHANNEL LED
This is a LED to display the channel output when VOICE or MELODY sound source is generated.
7. DAY LED
This is a LED to display the weekday of current time or reserved time.
8. STATUS DISPLAY
This displays operation status and manipulation time when manipulating each function button.
ACMELODY
MAXMIN
OUTPUT LEVEL
AC OUTLET
OUTPUT
VOICE
MODIFY DOWN UP
123
456
0
789
CANCEL DELETE
TIME
AM/PM
HOUR/MIN.
DAY
CH
COPY
TRACK
PW 642 PROGRAM TIMER
MON
CH1
CH2
CH3
CH4
TUE
WED
THU
FRI
SAT
SUN
12 3 4 5 67 8
17 18 19 20161514131211
109
