Affinity2.0/Equinox2.0 - Instructions for Use - US

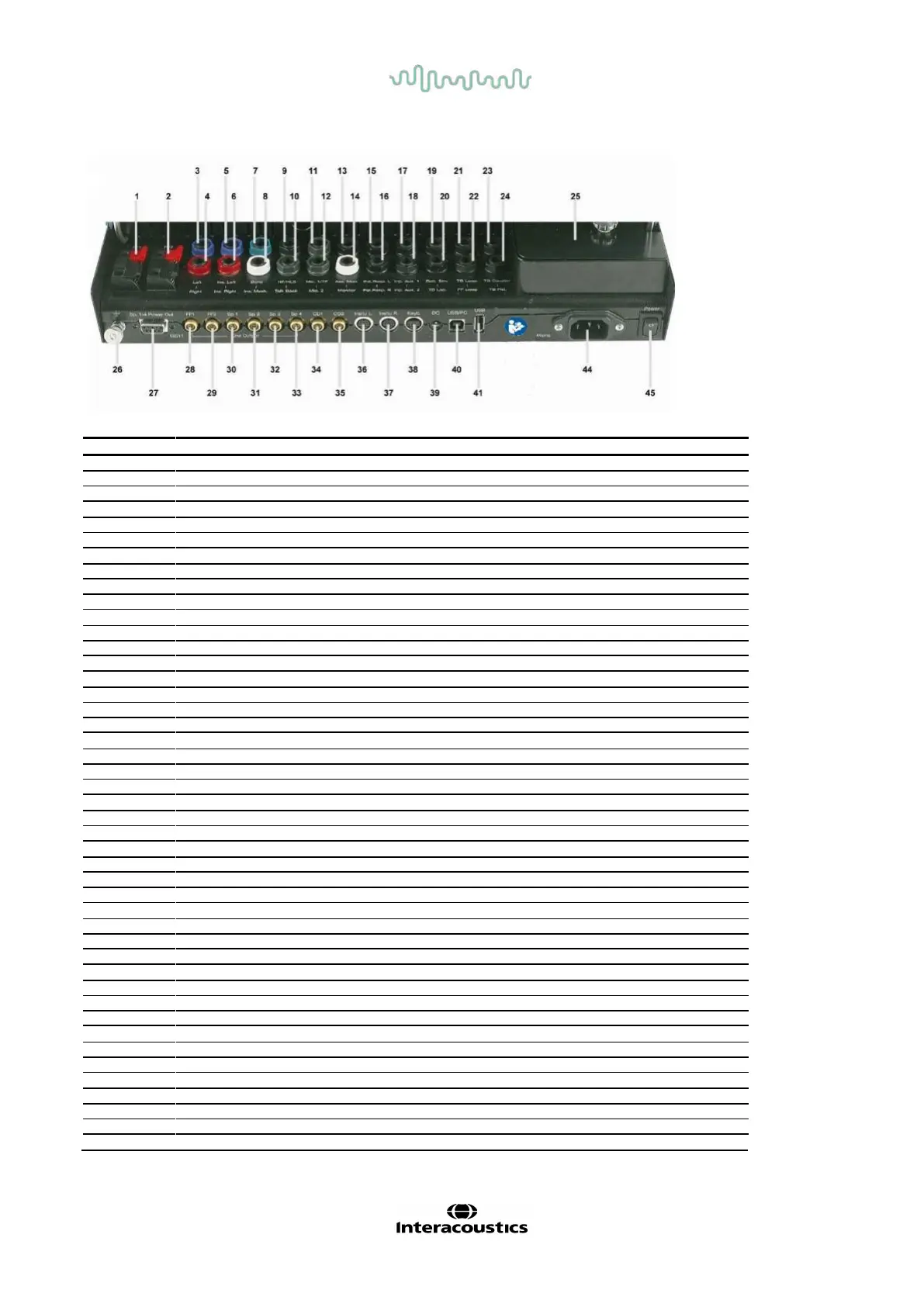

2.3 Connection panel dictionary
Position:
Symbol:
Function:
1
FF1
Connection of FF1
2
FF2
Connection of FF2
3
Left
Plug for left AC headphone
4
Right
Plug for right AC headphone
5
Ins. Left
Plug for left insert earphone
6
Ins. Right
Plug for right insert earphone
7
Bone
Plug for bone conductor
8
Ins. Mask.
Plug for insert earphone for masking
9
HF/HLS
Plug for High Frequency headphone/Hearing Loss Simulator
10
Talk Back
Plug for talk back microphone
11
Mic. 1/TF
Plug for microphone / talk forward
12
Mic. 2
Plug for microphone
13
Ass. Mon.
Plug for assistant’s headset
14
Monitor
Plug for monitor headset
15
Pat. Resp. L
Plug for left patient response button
16
Pat. Resp. R
Plug for right patient response button
17
Inp. Aux. 1
Plug for input aux. 1
18
Inp. Aux. 2
Plug for input aux. 2
19
Batt. Sim.
Plug for battery simulator
20
TB Lsp.
Plug for test box loudspeaker
21
TB Loop
Plug for test box loop
22
FF Loop
Plug for free field loop
23
TB Coupler
Plug for test box coupler
24
TB Ref.
Plug for test box reference microphone
25
Box for couplers
26
Ground
27
Sp. 1-4 Power Out
Plug for loudspeaker 1-4 power out
28
FF1
Connection of power amplifier FF1
29
FF2
Connection of power amplif ier F F2
30
Sp 1
Connection of lou dspeaker 1
31
Sp 2
Connection of loudspeaker 2
32
Sp 3
Connection of loudspeaker 3
33
Sp 4
Connection of loudspeaker 4
34
CD1
Input plug for CD 1
35
CD2
Input plug for CD 2
36
Insitu L.
Connection of Insitu Headset Left
37
Insitu R.
Connection of Insitu Headset Right
38
Keyb.
Connection of Keyboard
39
DC
Plug for power supply for optical USB extension cable
40
USB/PC
Plug for USB cable or PC
41
USB
Plug for USB cable
42
-
Not in use
43
-
Not in use
44
Mains
Plug for mains cable
45
Power
Turns power on/off.
