D-0004578-R – 2022/05 Page 26
Affinity2.0/Equinox2.0 - Instructions for Use - US

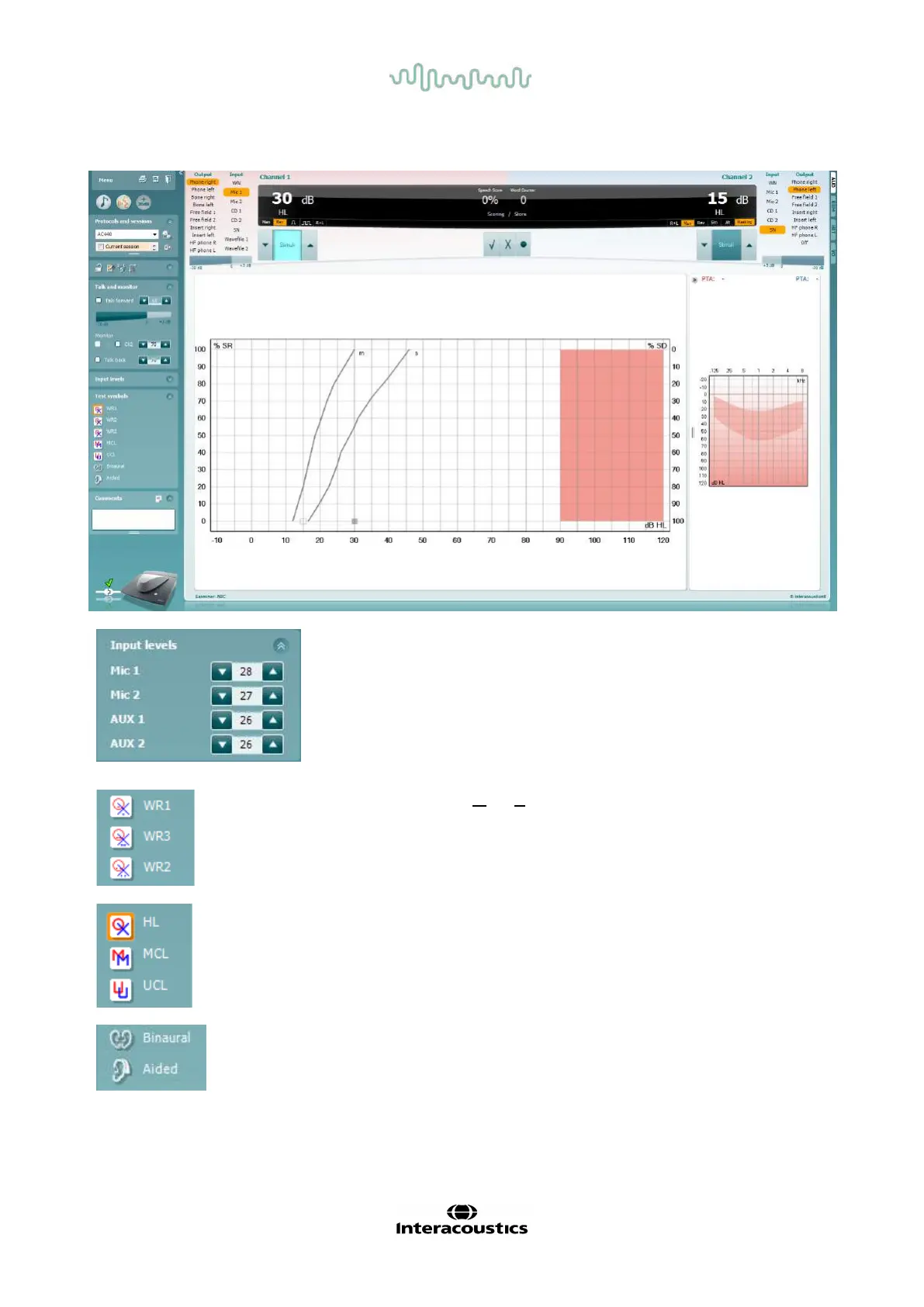

3.2 Using the speech screen
The following section describes the elements of the speech screen in addition to the tone screen:
Input levels sliders allow for adjusting the input level to 0 VU f or the
selected input. This ensures that correct calibration is obtained for Mic1,
Mic2, AUX1, and AUX2.
WR1, WR2 and WR3 (Word Recognition) allows selecting diff erent speech
list setups as defined by the selected protocol. The labels of these lists
which go along with these buttons can also be customized in the protocol
setup.
Selecting HL, MCL and UCLsets the symbol types that are currently in use
by the audiogram. HL stands f or hearing level, MCL stands for most
comfortable level and UCL stands f or uncomf ortable level.
Each type of measurement is saved as a separate curve.
Binaural and Aided function allows f or indicating if the test is perf ormed
binaurally or while the patient is wearing hearing aids.
