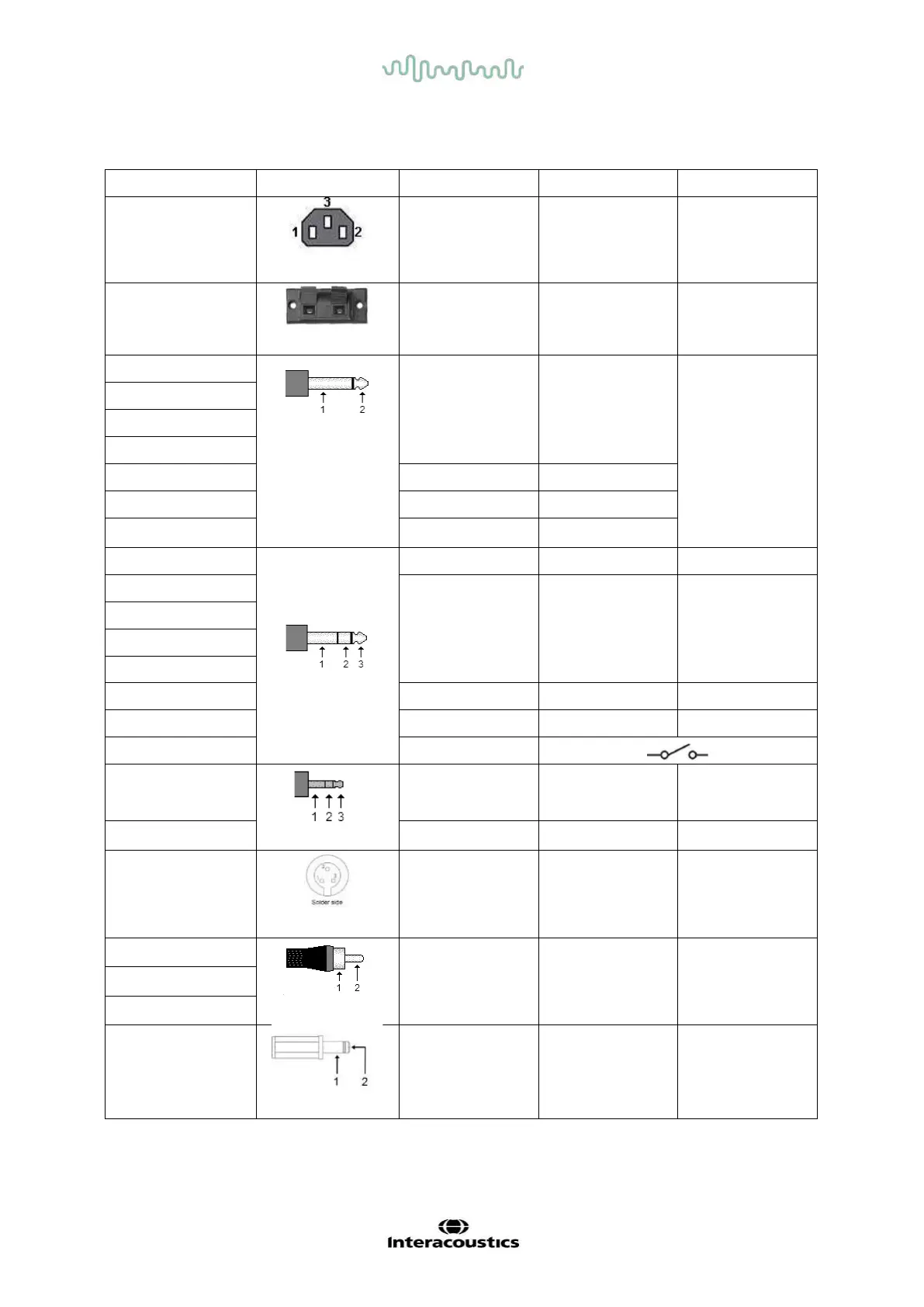

Appendix B: Affinity / Equinox Pin assignments
Socket Connector Pin 1 Pin 2 Pin 3
Mains Live Neutral Earth
IEC C13
FF1 / FF2
Black
Loudspeaker Signal
Negative
Red
Loudspeaker Signal
Positive
-
Terminal Block
Left, Right
Ground Signal
-
Ins. Left, Ins. Right
Bone
Ins. Mask.
TB Ref. Ground Signal & DC bias
Monitor, Ass. Mon. Signal Negative Signal Positive
TB Lsp.
6.3mm Mono
Loudspeaker Signal
Negative
Loudspeaker Signal
Positive
HF/HLS Ground Right Left
Talk Back
Ground DC bias Signal
Mic. 1/TF & Mic. 2
Inp. Aux. 1 & 2
TB Coupler
Batt. Sim. Vbat- Sense Vbat+
TB Loop, FF Loop - Return Signal
Pat. Resp. L & R
6.3mm Stereo
-
TB Coupler - internal TB
(Affinity
2.0
only)
Ground DC bias Signal
Batt. Sim. - Internal TB
(Affinity
2.0
only)
3.5mm Stereo
Vbat- Sense Vbat+
TB Ref – internal TB
(Affinity
2.0
only)
- Ground Signal & DC bias
Binder Series 719
3 pole
FF1 & FF2
Ground Signal
-
Sp 1, Sp 2, Sp 3, Sp 4
CD1 & CD2
RCA
DC Ground DC -
DC Supply
