AT235 Additional Information Page 4

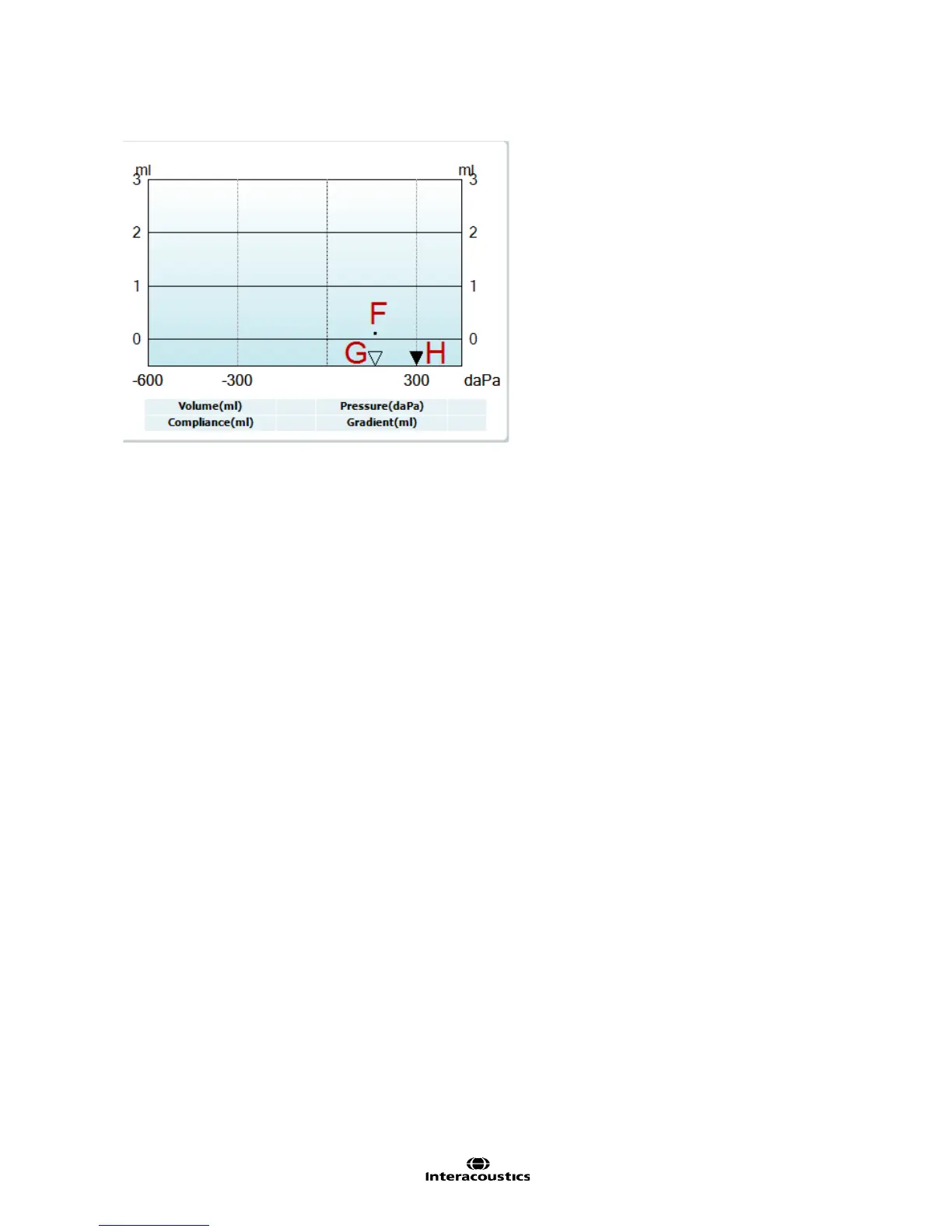

Manual Tympanometry Testing
F
The dot represents the measurement of the (non-compensated) acoustic admittance. It is only
shown when not recording. During recording the display will always be non-compensated.
G
The empty triangle indicates actual pressure.
H
The full triangle is the pressure cursor showing the current target pressure. It is moved by turning the
wheel.
