BSC4 Quickstart Guide
Interface Inc. ● 7401 East Butherus Drive, Scottsdale, Arizona 85260 USA ● Phone 480.948.5555 ● Fax 480.948.1924
www.interfaceforce.com ● Email: contact@interfaceforce.com ● 800.947.5598
Document Number 15-314 Rev A Page 9 of 12

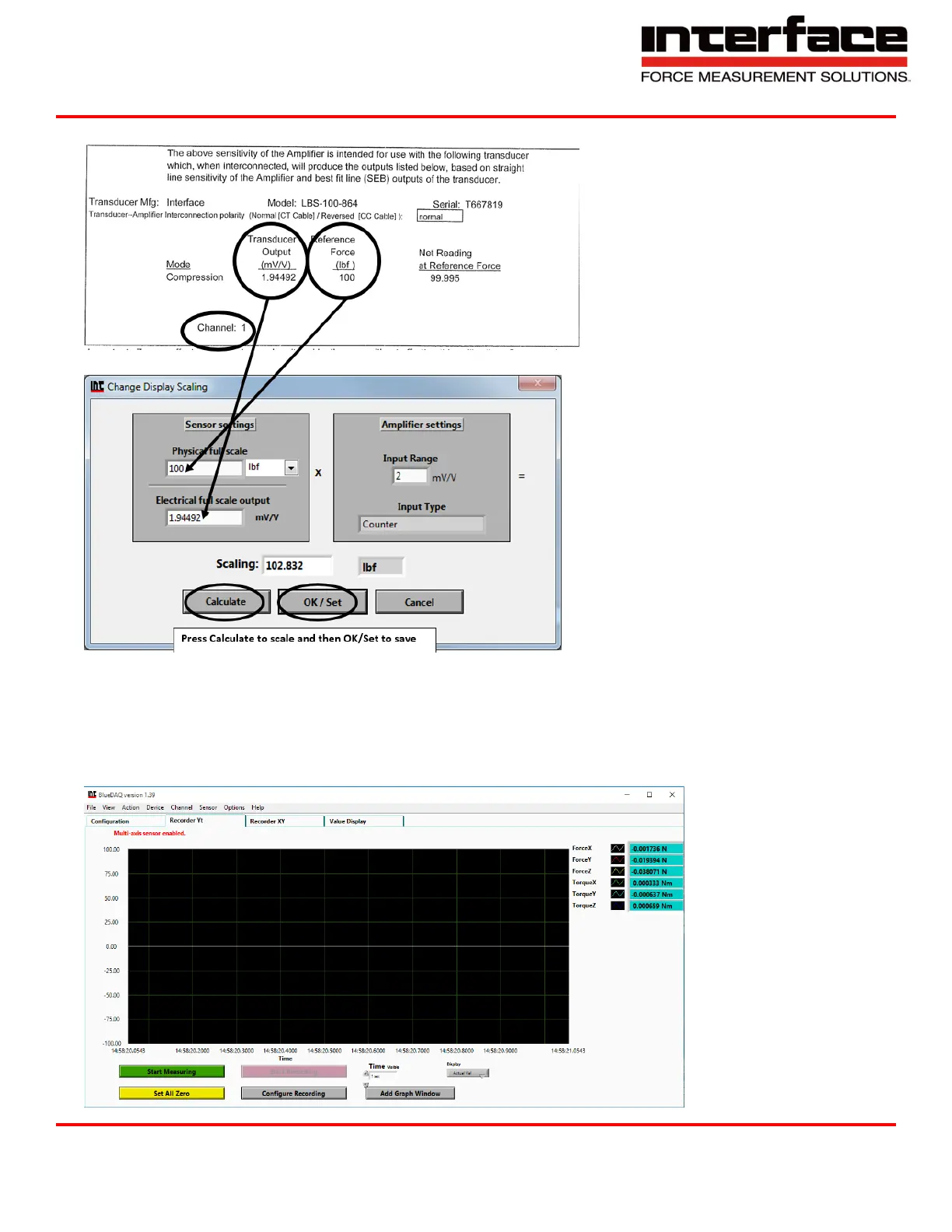

4. Example scaling using Load Cell / BSC8 Digital Bridge Amplifier Calibration Certificate”
6 Example scaling a channel using model WMC-100 load cell with 100 lbf capacity and 1.9587 mV/V output. After
entering the values into the dialog box you must click “Calculate” and then “OK/Set”.
Measurement and Recording
1. Click Set All Zero before measuring
