6 Electrical Connections
The figure below shows the electrical connections for door management and door monitoring. Installations
without door monitoring do not require sensors (13) or opening push-buttons (12) and the cables can be
omitted.
All cables must be laid to the I/O controller board.
The 5 m long reader cable (1) can be extended to 100 m.
For information on the connection, see: (Connections on the I/O Controller Board).
10 Housing for the installation of power packs and the I/O
board
12 Opening push-button or handle contact
11 Electric actuator up to 30 V, 2 A 13 Door sensor for monitoring the locking device

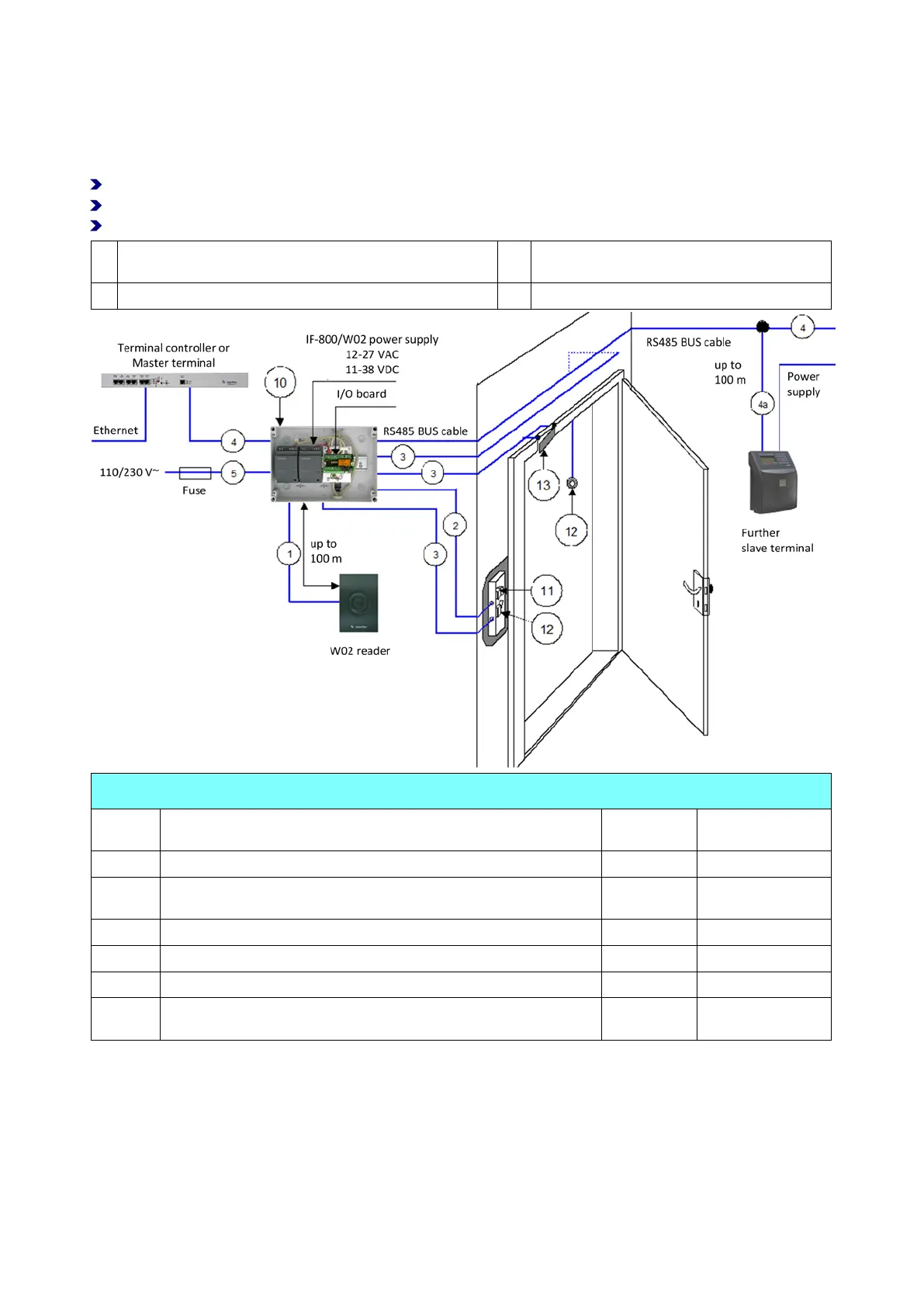

Figure Possible Connections and Electrical Wiring
Cable
No.
Max. Length Cable Cores
1 Reader/ COM cable, preferably laid in empty conduit 100 m 4 x 2 x 0.6 mm²
2 Control line for electric actuator No
specifications
2 x 2 x 0.6 mm²
3 Cable to door sensor, handle contact or opening push-button 100 m 2 x 2 x 0.6 mm²
4 RS485 BUS cable to higher-ranking device 1200 m 2 x 2 x 0.6 mm²
4a RS485 spur line from BUS cable to installation site 100 m 2 x 2 x 0.6 mm²
5 Mains cable No
specifications
NYM 3 x 1.5 mm²
 Only use shielded connecting cables, e.g. cable type J-Y(ST)Y.
 The above-specified cable lengths may not be exceeded. Excessive lengths can cause malfunctions.
 The power supply must have a separate fuse protection.
 The power supply of the access control element must be provided separately.
 The recommended distance between cables and power lines is 10 cm.
 If the locking device is monitored, a handle contact or door opening switch must be installed. The
switching of the contact allows for the locking device to be opened without setting off an alarm when
exiting the security zone.
