Interflex Datensysteme GmbH 4/7
7 Installation
The reader (IP 65) can be installed on a flat wall or pillar, both indoors and outdoors.
The mounting plate (2) is used for fastening. The holes are designed for screw fastening to flat walls and
also to DIN appliance cases.
Snap-in elements (3a) in the housing cover (3) lock into place when the cover is pressed onto the mounting
plate (2) and thus, prevent the loosening of the cover.
The mounting plate must not get twisted out of shape when it is screwed down.
The countersunk screws must end up flush with the countersunk holes and not protrude.
There should be a distance of at least 20 cm from other devices with RFID readers.
When the device is mounted on a metal surface, the reading distance is reduced.
Close housing: The housing cover (3) is first placed over the reader electronics during initial operation. To
close the housing, the cover is positioned over the housing and pressed down until the snap-in elements lock
into place in the mounting plate.

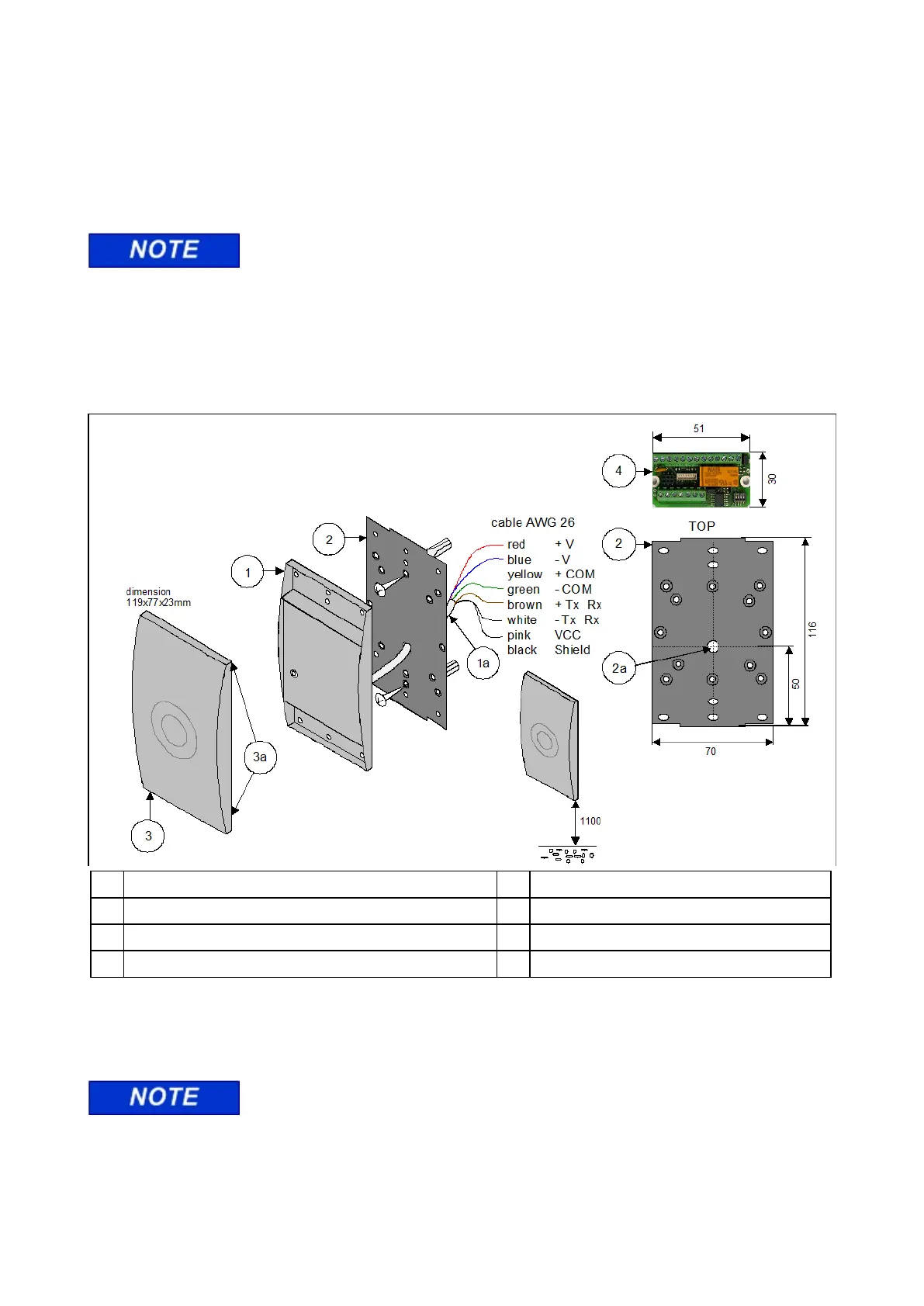

1 Reader housing with reader electronics 3 Housing cover
1a 5 m reader cable for connection to I/O controller board 3a Snap-in elements in cover
2 Mounting plate 4 I/O controller board with address switches
2a Drilling for reader cable
7.1 Installation of the I/O Controller Board
The I/O controller board (4) can be installed in a distance of up to 100 m from the reader housing (1).
The I/O controller board must be installed in a secured area, e.g. in a DIN appliance
case or in a housing together with the power supply.
