Interklima II18SCV1 - Wiring Diagrams

Interklima High wall unit
II/IO - SCV1
9

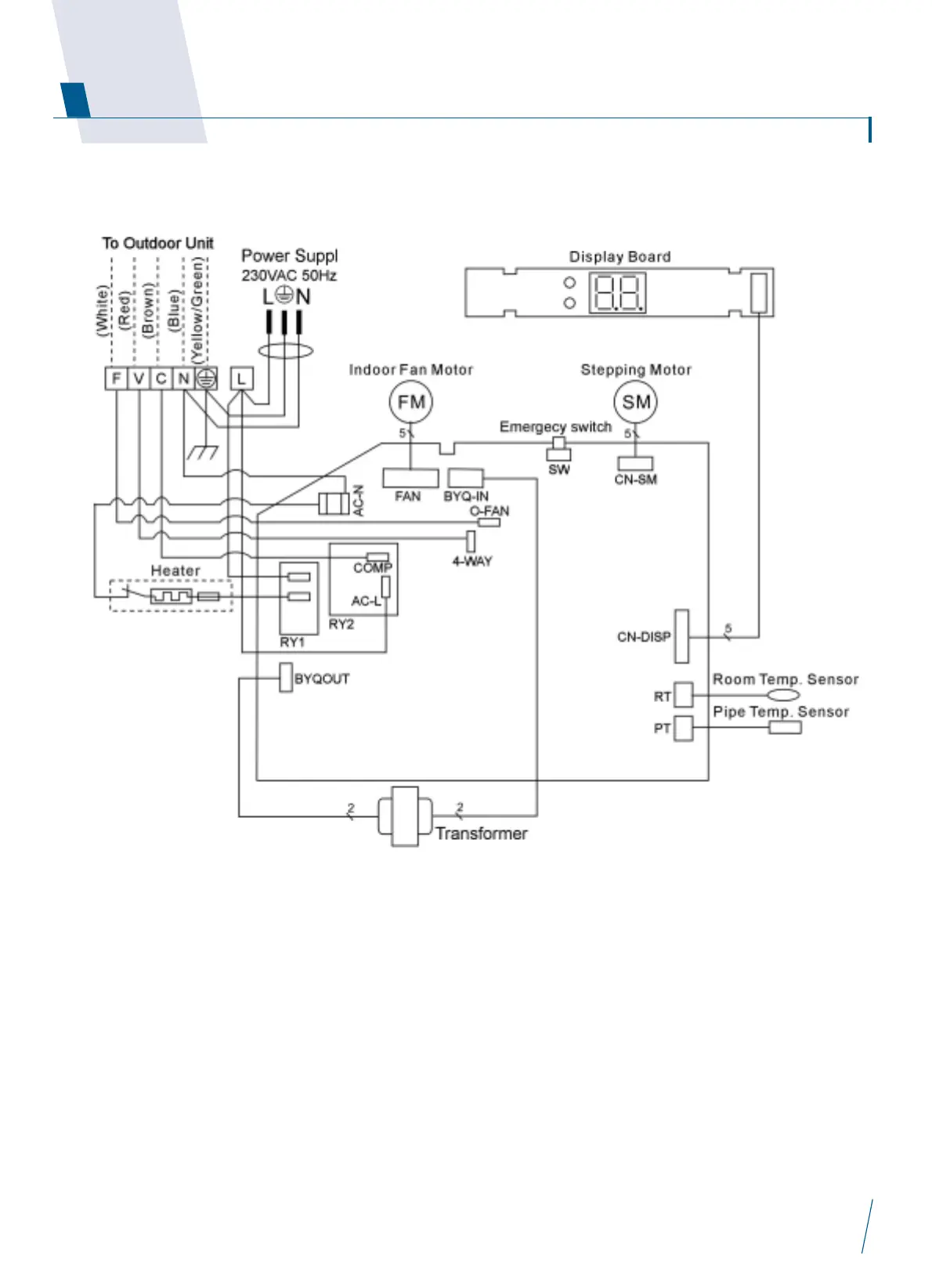

Wiring Diagram 3.
II-09/12 SCV1
NOTES
Note: Wiring diagrams on units take precedence over manual
L - LINE
N - NEUTRAL
F - FAN MOTOR
V - 4 WAY VALVE
C - COMPRESSOR
