Interlogix ATS3500A-IP-MM Installation And Programming Manual

Chapter 2: Installation
Advisor Advanced ATSx500A(-IP) Installation and Programming Manual 15

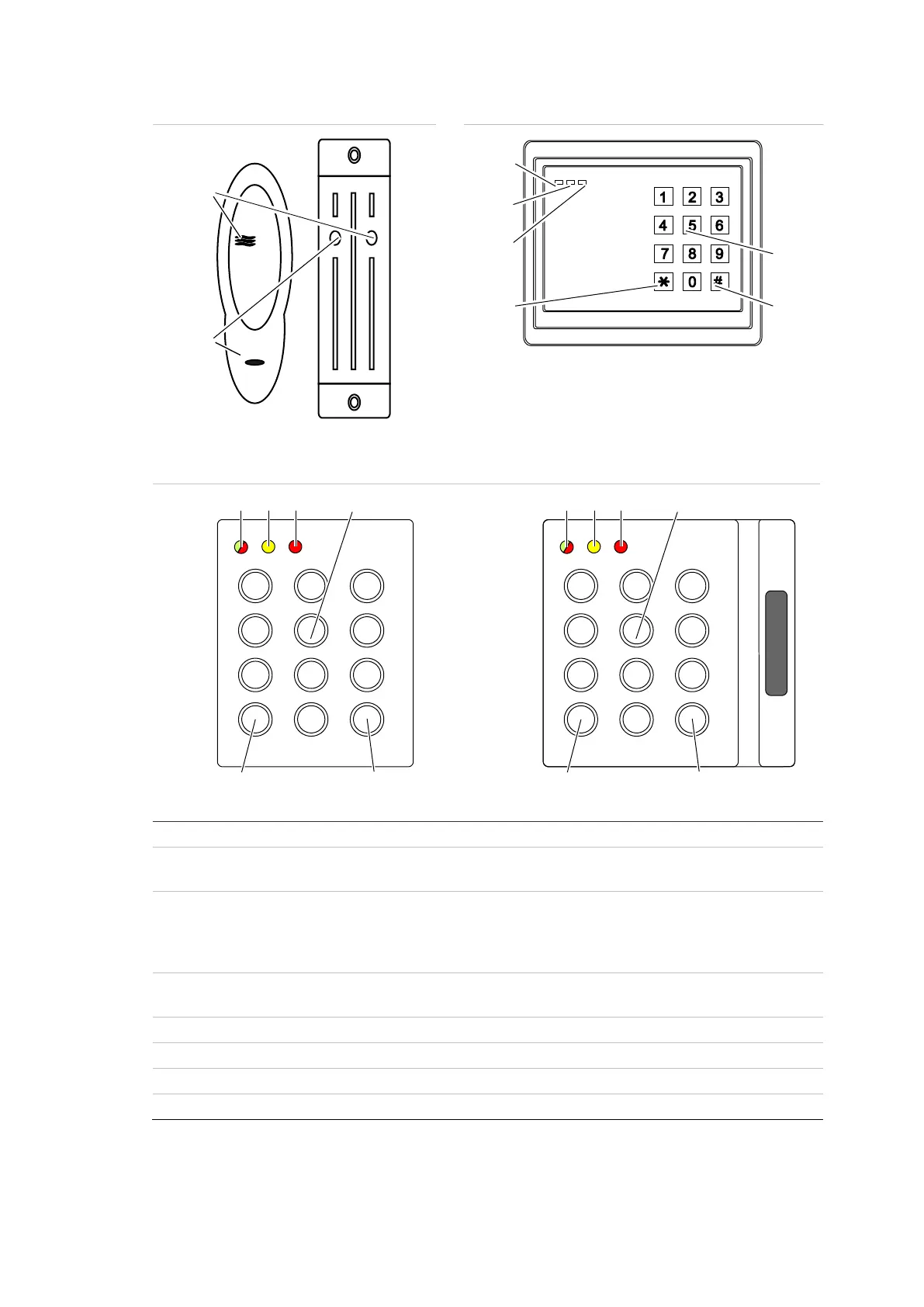

Figure 12: ATS1190/ATS1192 readers
Figure 13: ATS1197 reader with keypad
Figure 14: ATS1151/ATS1156 readers
(1)
Blue LED
Access granted
(2)
Red LED
On: area set
Flashing: general alert (EN 50131)
(3)
Dual LED
Green on: AC mains supply on
Green flashing: AC mains supply off, or unlocked while unset
Red on: all areas set
Red flashing: unlocked while set
(4)
Yellow LED
On: All zones are in normal state
Flashing: general alert (EN 50131)
(5)
Red LED
Flashing: alarm
(6)
Numeric keys
Keys 0 to 9, numerical data
(7)
Off
Unset an area
(8)
On
Full set an area
(1)
(2)
OFF ON
(3)
(4)
(5)
(6)
(7)
(8)
1 2 3
4 5 6
7 8 9
*
0 #
(4) (5) (6)
(7) (8)
(3)
1 2 3
4 5 6
7 8 9
*
0 #
(3) (4) (5) (6)
(7) (8)
