8 TruPortal Dual Door Interface Module Quick Reference

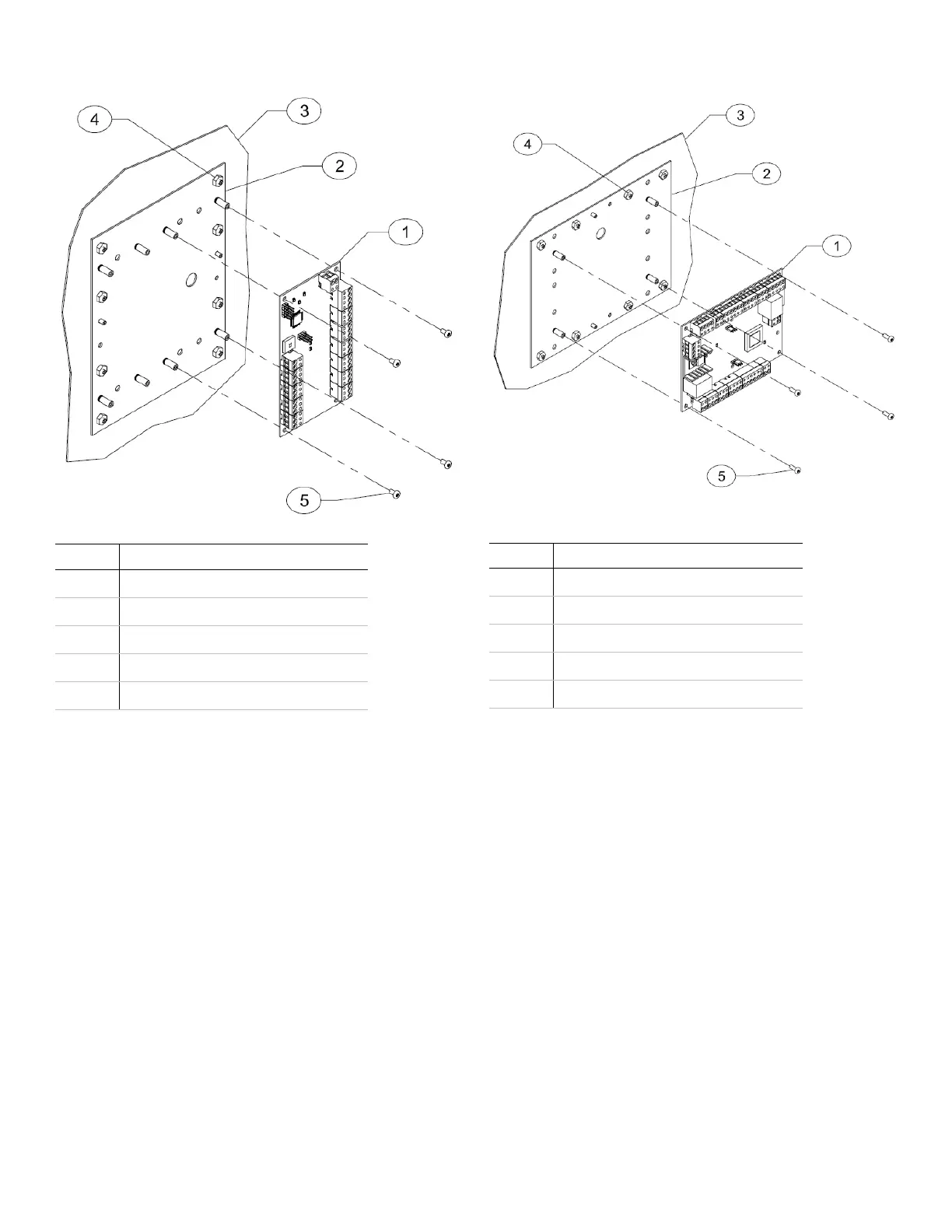

Figure 12: Mounting in AL400 Enclosure with Mounting Plate Figure 13: Mounting in AL600 Enclosure with Mounting Plate

Callout Description

1 TP-ADD-2D

2 28058B-02 mounting plate

3 TP-ADD (AL400) enclosure

4 #6-32 SEMS nut, 8 holes

5 #6-32 x .38 in. (9.652 mm), 4 holes

Callout Description

1 TP-ADD-2D

2 28058B-02 mounting plate

3 TP-ADD (AL600) enclosure

4 #6-32 SEMS nut, 8 holes

5 #6-32 x .38 in. (9.652 mm), 4 holes
