Intermatic Ascend ST700W - SWITCH INTERFACE OVERVIEW; LCD DISPLAY ELEMENTS; INTERFACE ICONS AND DESCRIPTIONS

7

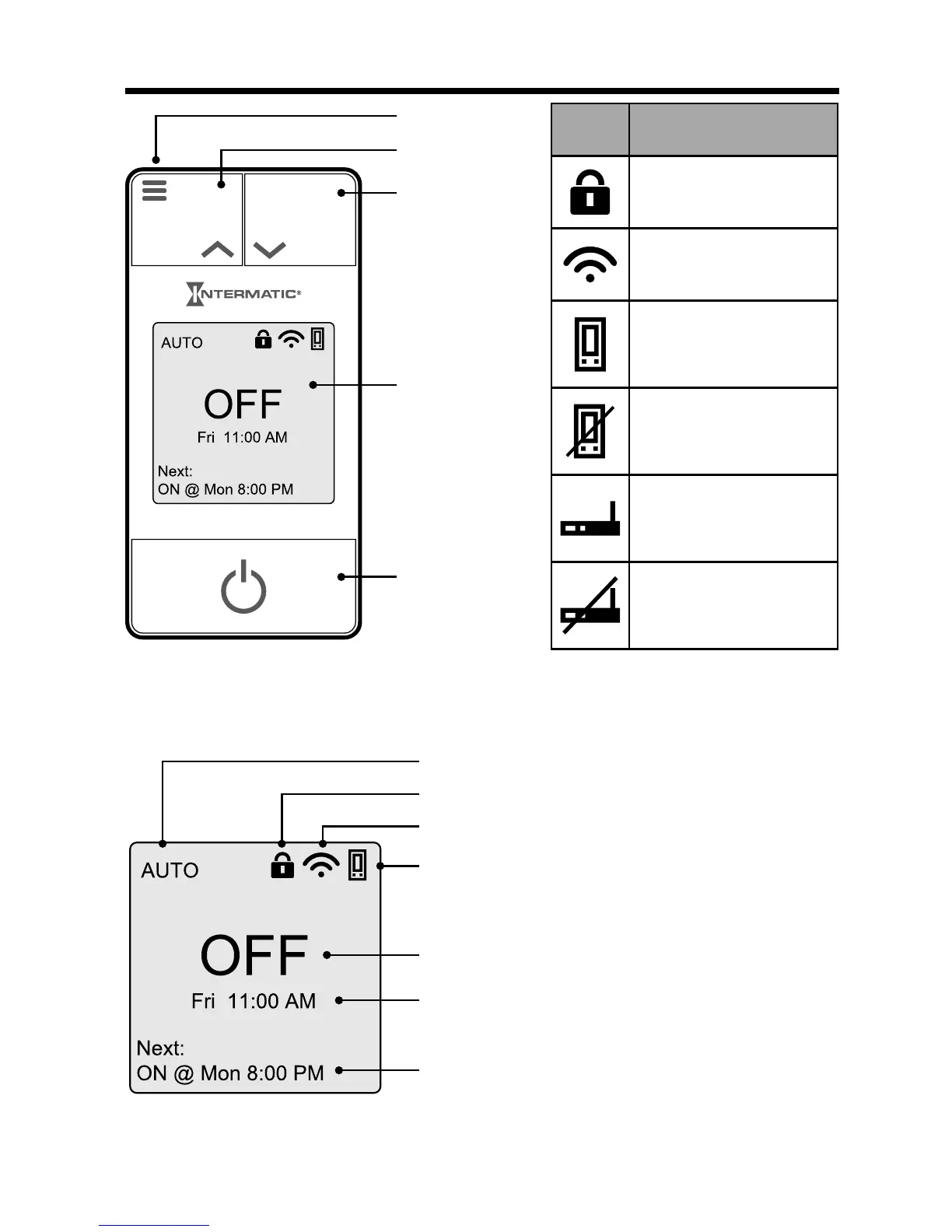

SWITCH INTERFACE
Menu
Scroll Up
Scroll Down
LCD Display
ON/OFF
or
ENTER
LCD Display
Lock
Wi-Fi
Mobile Device Connected
Mode of Operation
Next Scheduled Event
Current Switch State
Current Day/Time
Note: Display icons change based on timer model
andprogrammedsettings.
Icon Description
Timer locked
Wi-Fi active
Access Point Mode
Timer Connected
Access Point Mode
Timer waiting for
connection
Wi-Fi Mode
Timer connected to
network
Wi-Fi Mode
Timer not connected
to network
