Fig. 1

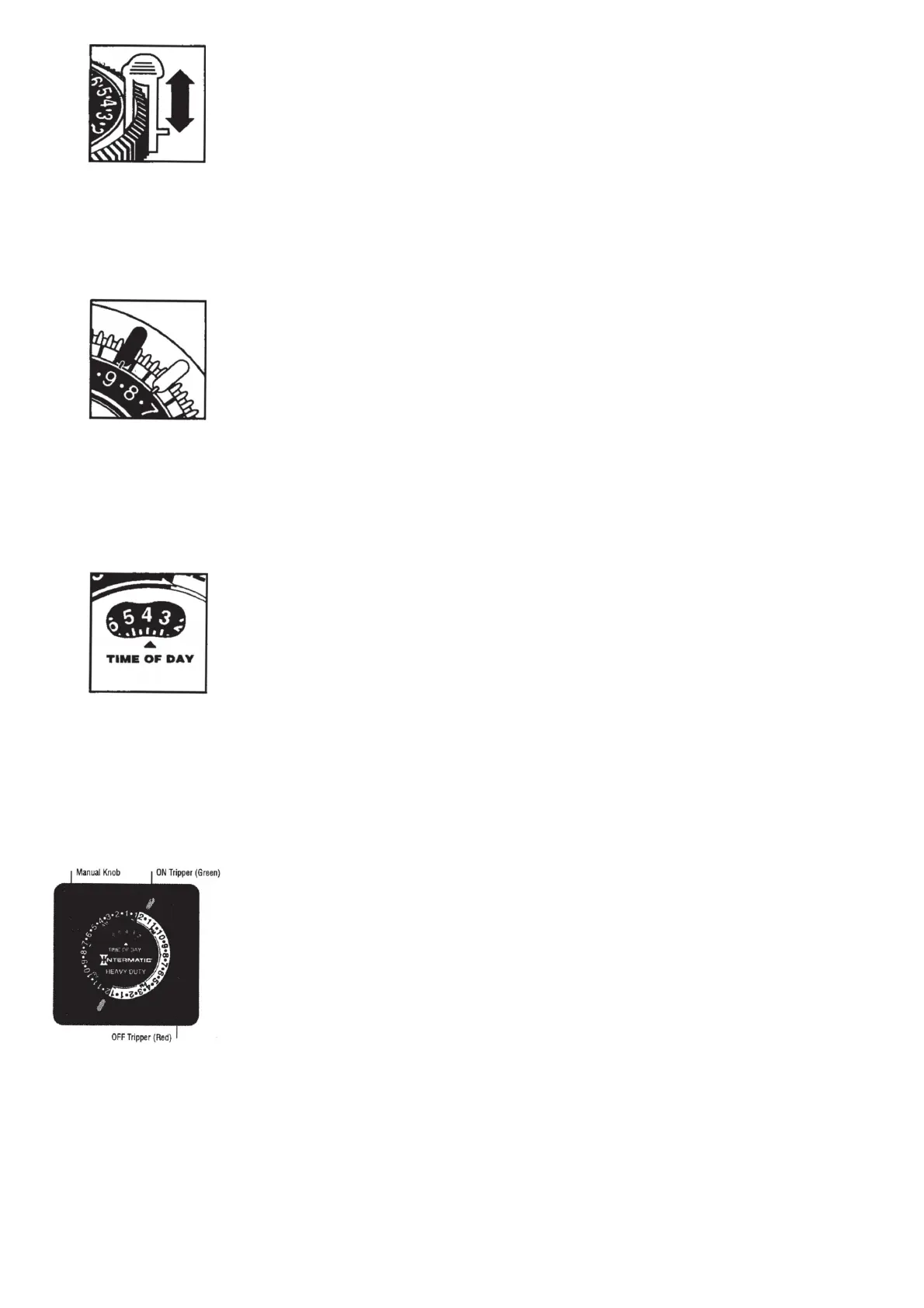

1. Insert ON (green) and OFF (red) trippers into dial at desired ON and OFF times (Fig. 1). Be sure trippers are firmly
pressed against dial surface and at least one space is left between ON and OFF trippers (Fig. 2).
Fig. 2
2. Turn dial clockwise one or more revolutions until correct time of day is next to arrow in center of dial (Fig. 3).
Fig. 3
3. Plug pump into timer receptacle and plug timer cord into outlet. If timer is used outdoors, outlet must be suitable for
wet locations.
Extra trippers may be stored on the dial by placing same color trippers next to each other.
For Early ON or OFF Operation
Turn manual knob counter-clockwise to desired ON or OFF position.
Timer will follow next scheduled automatic operation.
