3
OPERATION
EXAMPLES
TO SET DAILY SCHEDULE: The setting of a schedule
is done by placing the ON (silver) and OFF (gold) trip
-
pers on the two yellow dials.
The dials turn in synchronous speed and make exactly
one revolution in 24 hours. The trippers placed on the
dial on the right will set the start and stop time of
pump operation while the
trippers on the left side dial will set the time
the pump will change speed.
The length of the daily filtration/heating cycle depends
on many variables such as geographic location, size
and usage of pool, season of year,
type of pool equipment, etc. If not sure, contact your
local pool service professional for advice.
Setting a schedule is easy:
1. Set Time of Day on both time switches by
pulling out, then turning yellow dials until
Time-Of-Day lines up with pointer.
2. Set Start (ON tripper) and Stop (OFF tripper)
times on right side (T104M) dial.
3. Set Low to High (ON tripper) time and
High to Low (OFF tripper) time on left side
(T106M) dial.
WARRANTY
If within one (1) year fr
om the date of installation, this pr
oduct fails due to a defect in material or workmanship, Inter
matic Incorporated
will repair or replace it free of charge.
The warranty does not cover labor for removal or reinstallation and does not apply to: (a) damage caused by accident, abuse, mishan-
dling, or dropping; (b) a unit which has been subject to unauthorized repair; (c) units not used in accordance with directions; (d) damages
exceeding the cost of the product. Some states do not allow a limitation of damages so the foregoing warranty may not apply to you. This
warranty gives you specific legal rights and you may also have other rights which vary from state to state.
This war
ranty ser
vice is available, if the defective pr
oduct or its defective component is r
etur
ned with pr
oof of purchase and date of
installation, either (a) to the dealer from whom the unit was purchased or (b) by shipping prepaid to the Intermatic Service Center, Intermatic
Incorporated, Intermatic Plaza, Spring Grove IL 60081-9698

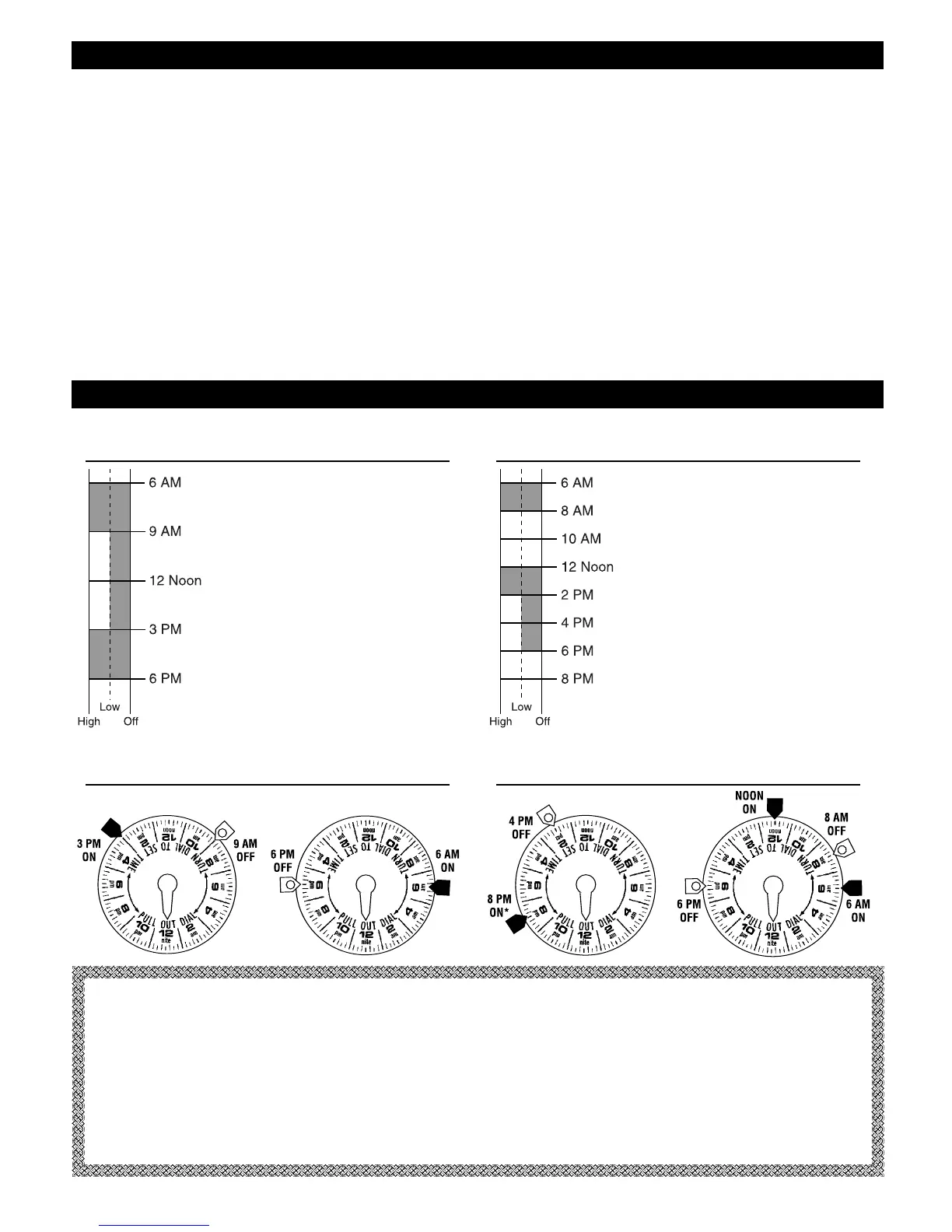

The following examples are only two of the many individualized schedules one can devise.
SCHEDULE EXAMPLE #1 SCHEDULE EXAMPLE #2
ON-High Speed
(place ON tripper on T104M dial at 6 AM)
From High to Low Speed
(place OFF tripper on T106M dial at 9 AM)
From Low to High Speed
(place ON tripper on T106M dial at 3 PM)
OFF
(place OFF tripper on T106M dial at 6 AM)
ON-High Speed
(place ON tr
ipper on
T104M dial a
t 6 AM
)
OFF
(place OFF tripper on T104M dial at 8 AM)
ON-High Speed
(place ON tripper on T104M dial at NOON)
From High to Low Speed
(place OFF tripper on T106M dial at 2 PM)
OFF
(place OFF tripper on T104M dial at 6 PM)
From Low to High
(place ON tripper on T106M dial at 8 PM)
TRIPPER SETTINGS TRIPPER SETTINGS
Left Dial (T106M) Right Dial (T104M) Left Dial (T106M) Right Dial (T104M)
