10 CV41 Vehicle Mounting Kit Reference Guide
To connect the AC/DC power supply
1 Connect the one end of the AC power cord to the power
supply and the other end to wall plug.
2 Connect one end of the output cable to the power supply and
the other end to the CV41.
3 Fasten the connector by twisting it clockwise.

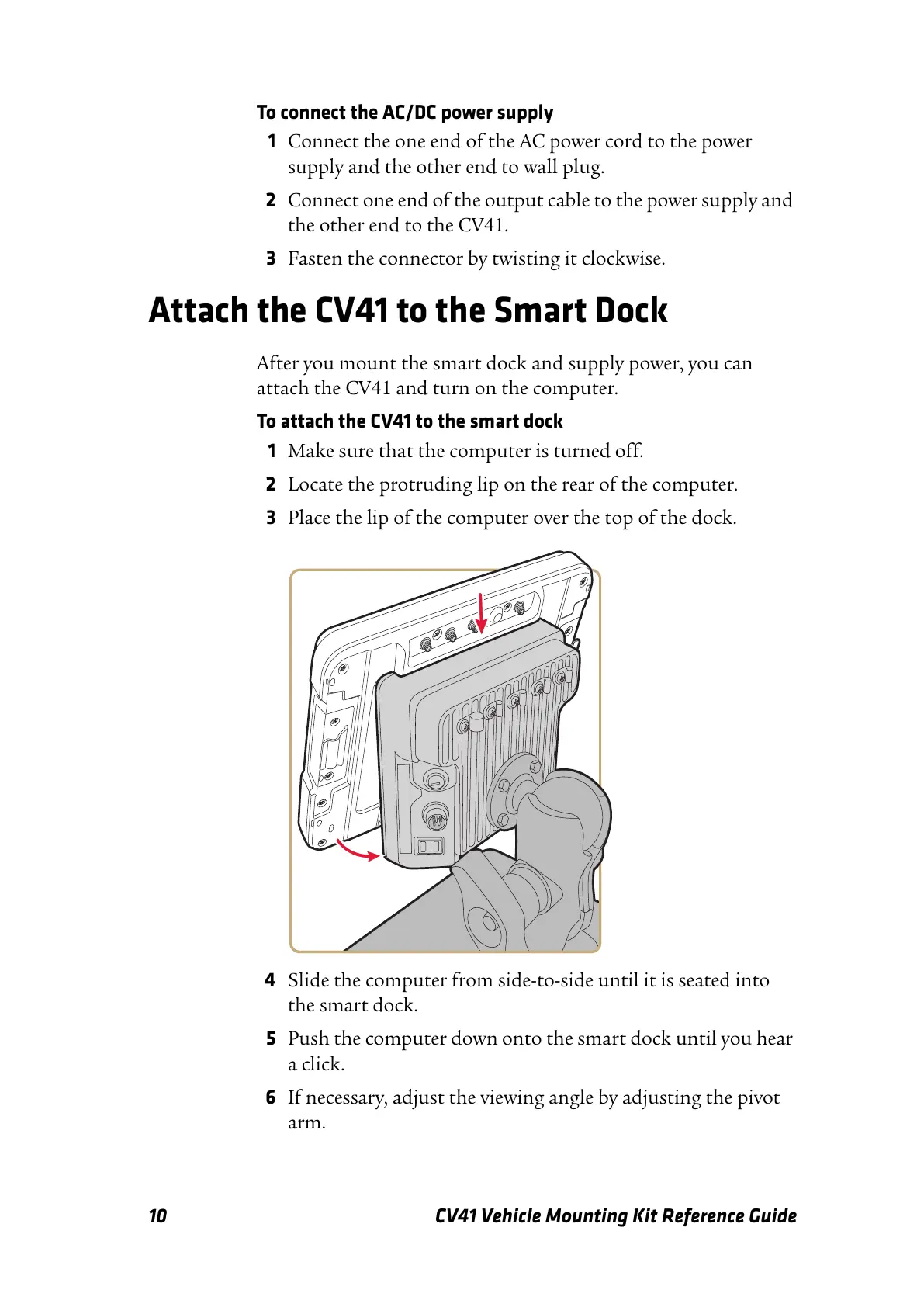

Attach the CV41 to the Smart Dock
After you mount the smart dock and supply power, you can
attach the CV41 and turn on the computer.
To attach the CV41 to the smart dock
1 Make sure that the computer is turned off.
2 Locate the protruding lip on the rear of the computer.
3 Place the lip of the computer over the top of the dock.
4 Slide the computer from side-to-side until it is seated into
the smart dock.
5 Push the computer down onto the smart dock until you hear
a click.
6 If necessary, adjust the viewing angle by adjusting the pivot
arm.
