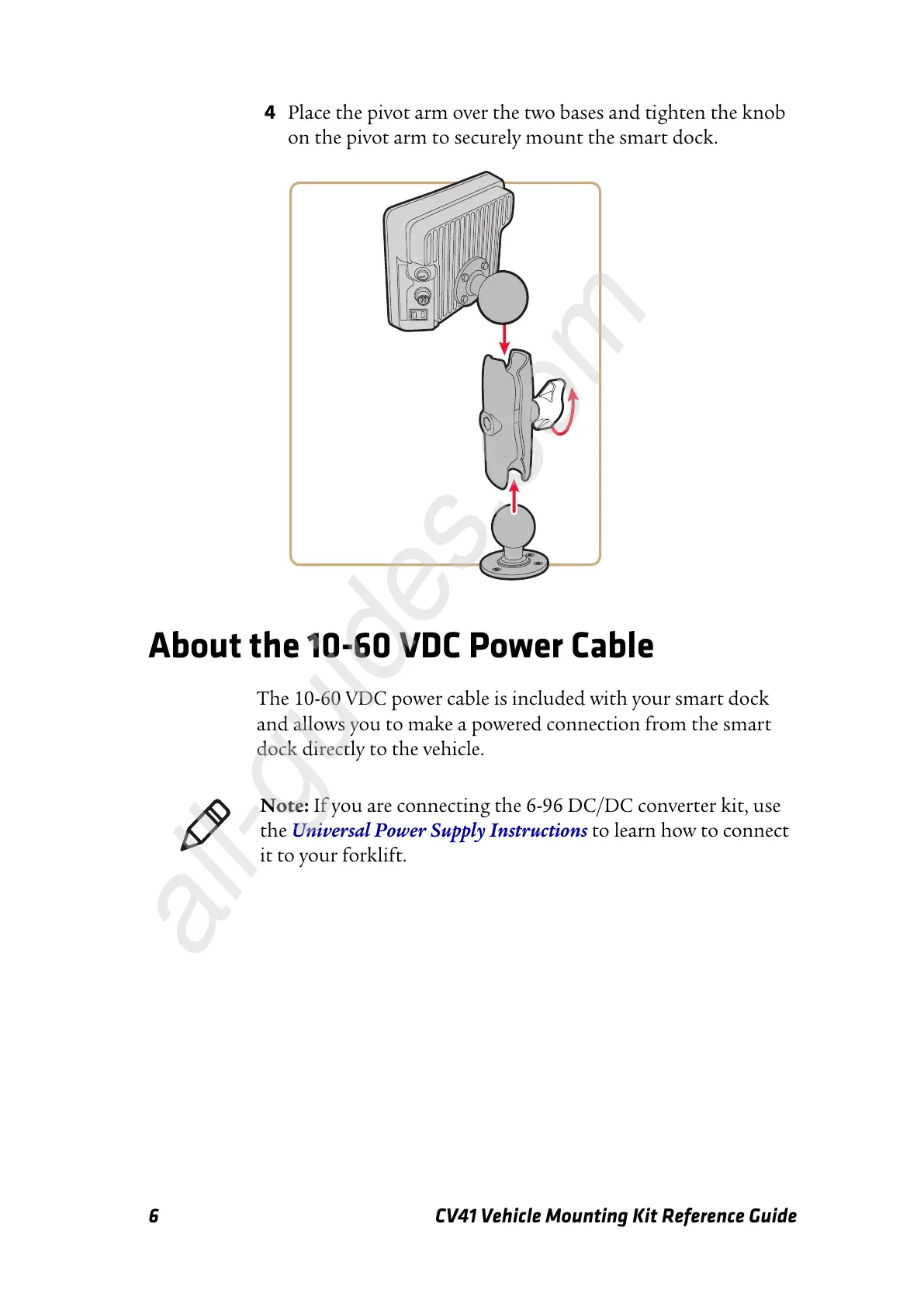

6 CV41 Vehicle Mounting Kit Reference Guide
4 Place the pivot arm over the two bases and tighten the knob
on the pivot arm to securely mount the smart dock.
About the 10-60 VDC Power Cable
The 10-60 VDC power cable is included with your smart dock
and allows you to make a powered connection from the smart
dock directly to the vehicle.
Note: If you are connecting the 6-96 DC/DC converter kit, use
the Universal Power Supply Instructions to learn how to connect
it to your forklift.
