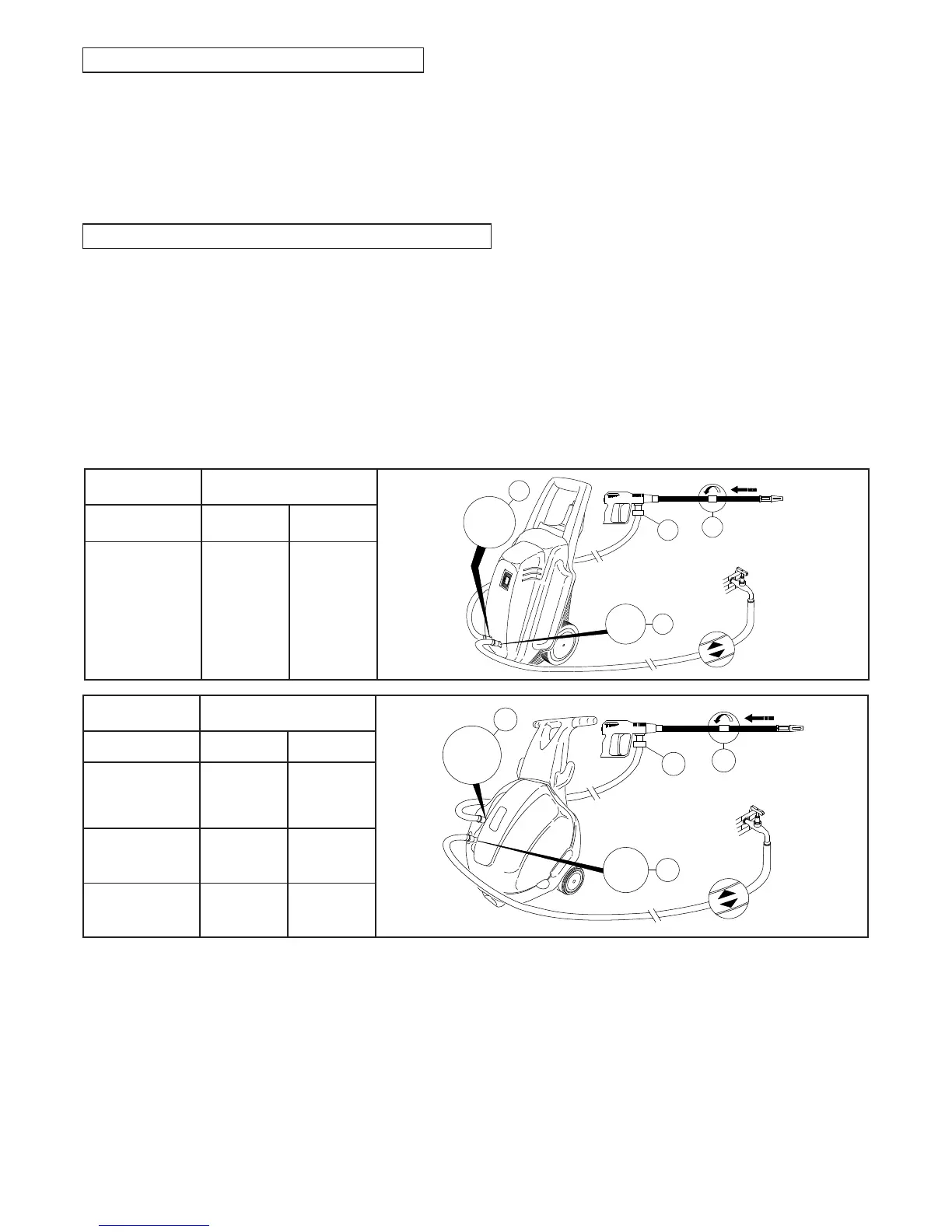

5.1 HIGH PRESSURE CONNECTION
1 - Connect one end of the high pressure hose to the end of the automatic gun (A) and the other
end to the OUTLET connection on the machine. Tighten firmly (B).
2 - Complete the assembly by coupling the extension to the gun/lance and tighten firmly (C).
5.2 - CONNECTION TO THE WATER SUPPLY
1- The maximum temperature of the inlet water must not exceed 60°C (140°F).
2- Connect the water supply to the INLET (D) port by means of a reinforced hose (min.15 bar /
1,5 MPa / 200 PSI) with the internal diameter not less than 13mm (1/2”)
3- Since the water flow decreases according to the length of the hose, make sure that the quan-
tity of water supplied to the machine is not less than the quantities indicated in the chart below.
4- The pressure of the inlet water must not exceed 10 bar / 1 MPa / 145 PSI.
ATTENTION: The water supply which enters into the washer is not drinkable.
IMPORTANT
The water supplied to the machine must be clean. Running the unit without water, or with water
which is dirty, contains grit or corrosive liquids, causes serious damage to the machine.
IP SERIES
FLOW RATE OF
WATER SUPPLY
MODEL L/min.
G.P.M. USA
IP130
IP140
IP150
IP170
11
11
13
17
2,9
2,9
3,4
4,5
MODEL L/min.
G.P.M. USA
IPX SERIES
FLOW RATE OF
WATER SUPPLY
IPX 10-130
IPX12-100
IPX 12-140
IPX 951
IPX 14-120
IPX13-180
IPX 954- 956
IPX 15-150
IPX17-130
IPX 957- 961
15
17
20
4
4.5
5.3
If the user wishes to power the washer by means of free suction, simply emerge the end of the
supply tube in the water to be suctioned. The maximum suction depth considered as the dis-
tance in height between the water surface and the pump varies between 0,5 m. and 3 m. (see
technical specifications table).
