Installer’s Guide
Control box panel cover
(Shown removed)
PCB Detail
Indoor Unit
24V
Terminal
Strip Detail
EAC
R
24V RED
jumper wire
from EAC to R
For use with Whole House
Air Cleaner
RED
BLUE
GREEN
BLACK
GRD
Air Cleaner
Plug
BROWN /
Future Use
Power / Control
Wiring Cable and Plug
Unused
Detach female spade terminal
from white EAC wire and
crimp to green wire
BEFORE AFTER
GREEN
GREEN
WHITE
WHITE
WHITE
BK R
OGY1 Y2
D
BW1W2W3
GREEN
WHITE
HAZARDOUS VOLTAGE! DISCONNECT ALL ELECTRIC
POWER, INCLUDING REMOTE DISCONNECTS
BEFORE SERVICING. FOLLOW PROPER LOCKOUT/
TAGOUT PROCEDURES TO ENSURE THE POWER
CAN NOT BE INADVERTENTLY ENERGIZED. FAILURE
TO DISCONNECT POWER BEFORE SERVICING
COULD RESULT IN DEATH OR SERIOUS INJURY.
PROCEDURE:
1) Remove electrical power going into the air handler.
2) On the communicating systems air handler, remove
the blower access panel.
3) Remove the communicating control box cover.
4) Locate the red jumper wire which is attached from
EAC to R on the Communicating Systems PCB.
Conrm it is connected. If there is not a jumper wire
installed, then one must be installed in this location in
order for the air cleaner to function properly.
5) Replace the Communicating control box cover.
6) Locate the white wire coming from the
Communicating System Air Handler PCB labeled
“EAC”. The wire will have a male spade terminal
connected to it and a female spade terminal inserted
into the male terminal. Remove the female spade
terminal and crimp it to the green wire on the air
cleaner harness.
7) Connect the green wire from the air cleaner harness
to the white wire on the Communicating Systems Air
Hand nected to the metal air handler chassis.
10) Replace the blower access panel.
11) Reconnect electrical power to the air handler.

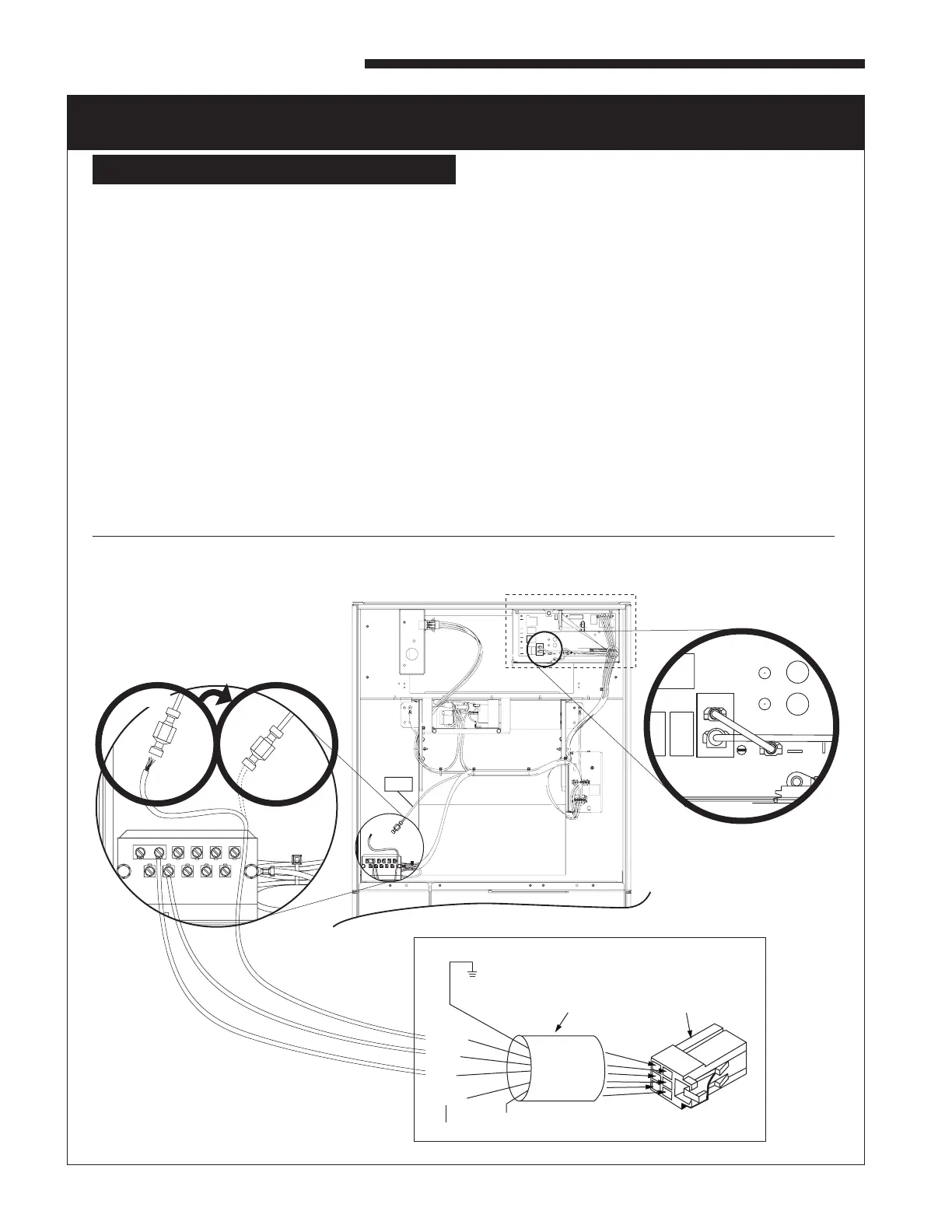

ELECTRICAL CONNECTIONS TO A COMMUNICATING SYSTEM AIR HANDLER
IN CONVENTIONAL 24 V MODE
