24 Numbers in [brackets] are for 50 Hz international systems. Pub. No. 18-HE122D1-1-EN
Installer’s Guide
A
Front
of
Cabinet
B
24-13/16
1/8
1/8
27
7-7/16
2.8”
Side View
AIRFLOW
27” DEPTH CABINET
ADD DOOR DEPTH FOR TOTAL

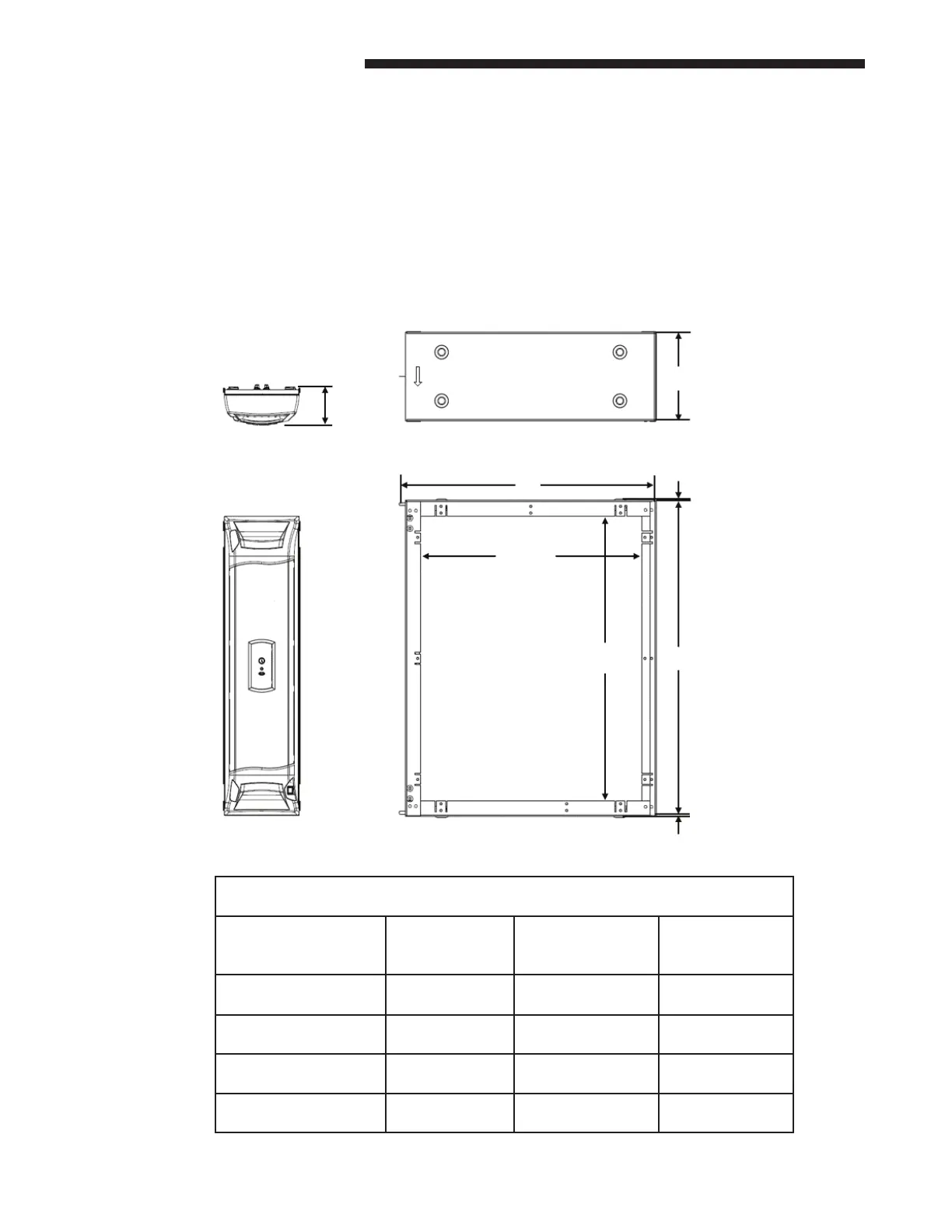

OUTLINE DRAWING FOR UPFLOW FURNACES
Dimensions
(all dimensions in inches)
I. OUTLINE DRAWINGS
UPFLOW FURNACE MODEL NUMBERS
ifD Air Cleaner A
B (multiple
piece cabinet)
B (one piece
cabinet)
EFD145CLFR000E 14.5 11.9 12
EFD175CLFR000E 17.5 14.9 15
EFD210CLFR000E 21.0 18.4 18.5
EFD245CLFR000E 24.5 21.9 22
