NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
18
Termination 90L81 FBTM
Forced Air Blower Kit 36L32 BFK36
63L10 FTF8-12
63L13 FTF8-18
63L14 FTF8-36
Chimney Section 63L15 FTF8-48
Storm Collar
12 Pack 94L77 FSC
0-6/12 63L38 F8F6
Flashing 6/12-12/12 63L39 F8F12
Locking Band 63L60 FLB
Shipping Weight 175 lbs.

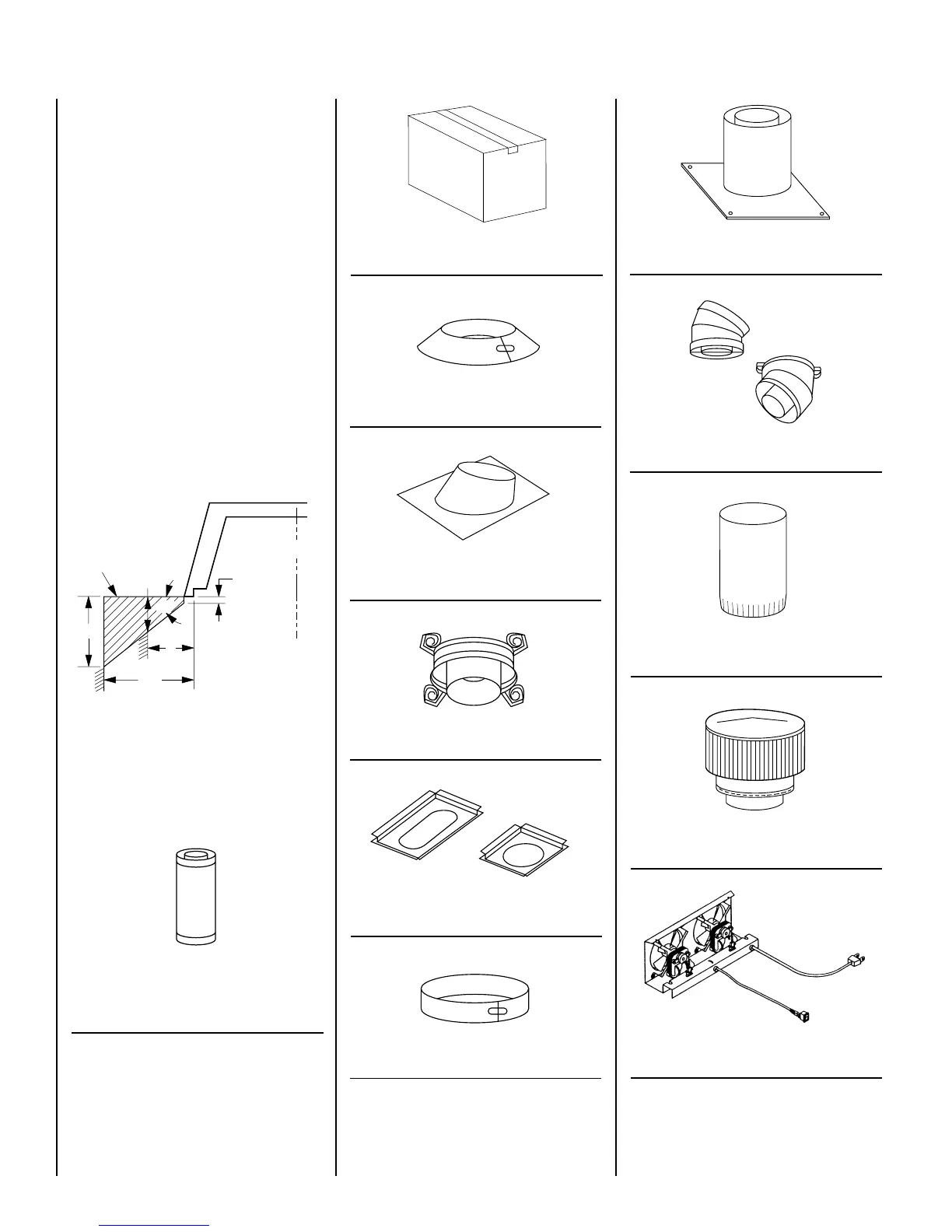

INSTALLATION COMPONENTS
The following items are available for use in the
installation of this appliance.
Thimble Extension 26" 91L46 F8-TE26
Stabilizer 63L25 FTF8-S4
Firestop Spacer (30°) 63L30 F8FS30
Firestop Spacer (Flat) 63L29 F8FS
Offset/ Return
Package (30°) 63L22 FTF8-ES30
FINISH TO YOUR TASTE
There are a wide variety of “finished looks” for
these fireplaces, from formal wall decor with
elaborate mantels to rustic wood paneling or
warm brick facings.
Only noncombustible materials like stone, tile,
brick, etc., may overlap the black front facing.
Do not extend these materials beyond the black
facing and into the firebox area. Be sure not to
interfere with the installation and operation of
glass doors or block the upper or lower grilles.
Seal all joints between the black facing and wall
surrounds to prevent air intrusion. Use non-
combustible caulking material only to seal the
black metal facing to the surround material on
the finished wall.
Combustible materials may project beyond the
sides of the fireplace opening as long as they
are kept within the shaded areas illustrated in
Figure 48
.
Figure 48
12"
Min. Distance To
Unprotected Side Wall
7"
45°
Combustible
Materials
Allowed In
Shaded Area
“Safe Zone”
7"
1"
Min. Distance To
Protected Side Wall
Fireplace
12"
Adjustable Firestop/Thimble HO325 FM8-AT1
Adjustable Chimney Pipe Kits HO323 FM8-PK1
