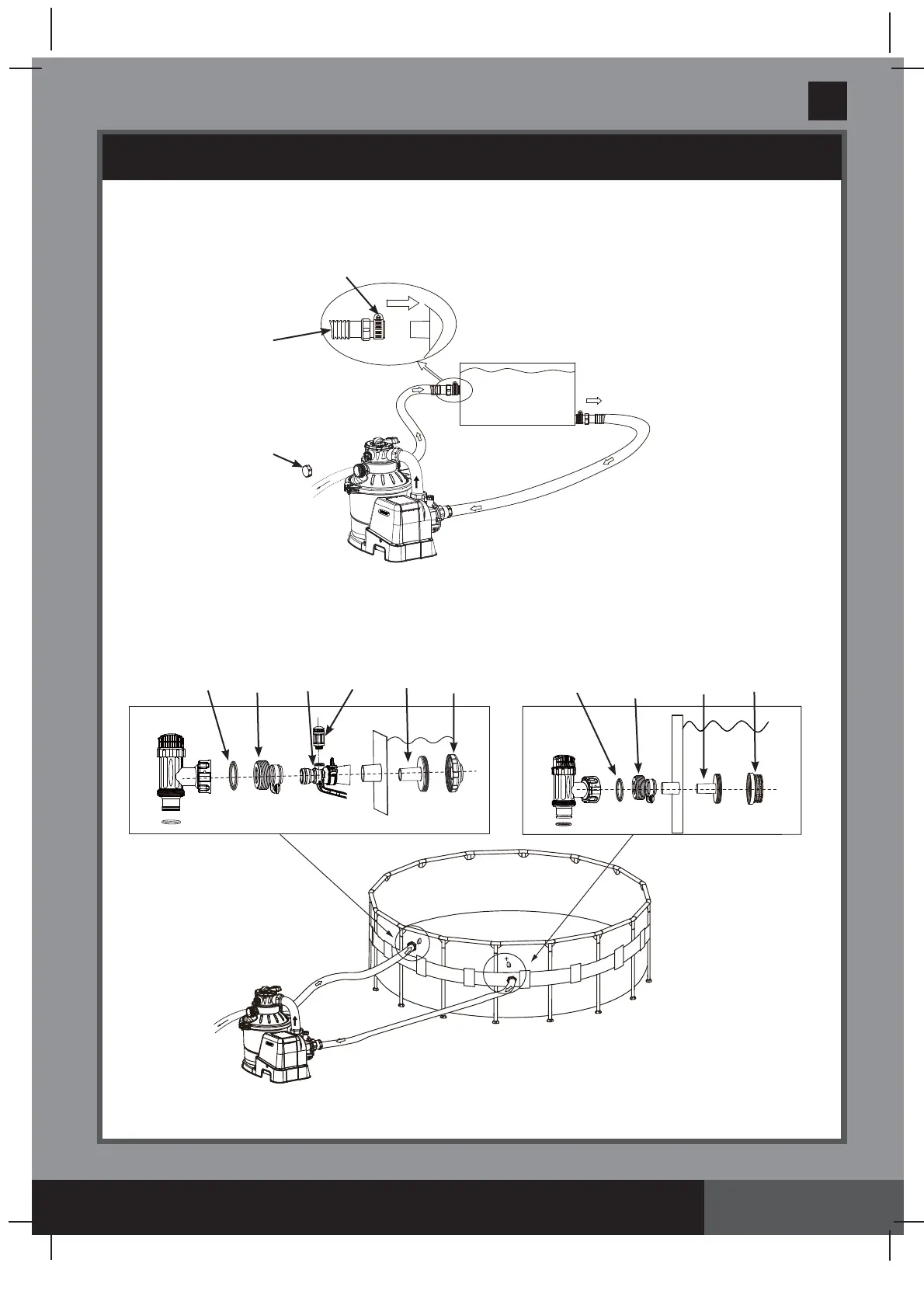

SAND FILTER PUMP HOSE CONNECTION SETUP
(
continued
)
For INTEX pool with 1-1/4” (32mm) connections/hoses:
Make sure the air jet valve
(15)
is securely tighten onto the pool inlet air adaptor
(14)
and facing
up.
For NON-INTEX pool:
Connect the hose
(12)
to the pool inlet/outlet connection with a large hose clamp. Tighten
securely.
POOL
LARGE HOSE
CLAMP
12
3
29
28
(Adaptor B)
14 15
30
29
31
23
28
(Adaptor B)
23
