SSEETT--UUPP IINNSSTTRRUUCCTTIIOONNSS
POOL SET UP (continued)
This pool may have been purchased with the Intex Krystal Clear™
filter-pump. The filter-pump has a separate set of installation instructions
and is to be set-up after assembling this unit.

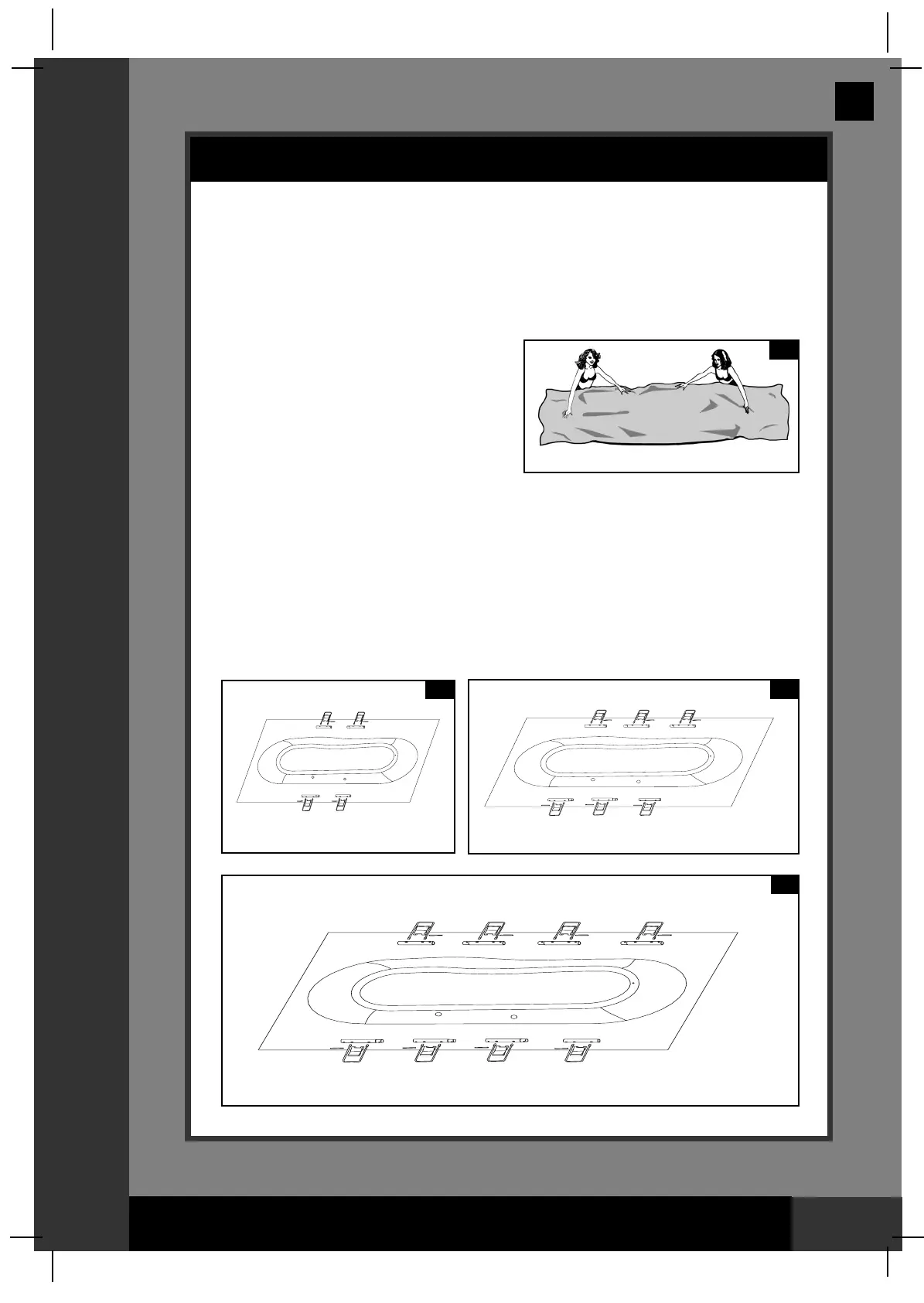

1. • Remove the ground cloth from carton. Spread it out completely with its edges being at
least 5 - 6’ (1.5 - 2.0 m) from any obstacle such as walls, fences, trees, etc.
• Remove the liner (7) from carton and place
it on top of the ground cloth with the drain
valve towards the draining area. Place the
drain valve away from the house. Open it
up to warm it in the sun. This warming will
make installation easier. Make sure the
liner is centered atop the ground cloth. Be
sure to face the end with the 2 hose
connectors towards the electrical power
source.
IMPORTANT: Do not drag the pool liner across the ground as this may result in
leaks or other damage (see drawing 1).
2. Remove all the parts from the carton(s) and place them on the ground in the location
where they are to be assembled (see drawings 2.1, 2.2 and 2.3). Check the parts listing
and be sure all the pieces to be assembled are accounted for.
IMPORTANT: Do not start assembly if any pieces are missing. For replacement
pieces call the Consumer Service telephone number in your area.
After all pieces are accounted for move the pieces away from the liner for of installation.
7
1
2.3
2.1
2.2
18’ X 10’ & 20’ X 12’
(C)
(A)
(C)
(A)
LINER
24’ X 12’
(C)
(A)
(B)
(B)
(B)
(B)
(B)
(B)
(C)
(A)
LINER
28’ X 12’
(C)
(A)
(C)
(A)
LINER
To Next Page
