POOL SETUP
(
continued
)

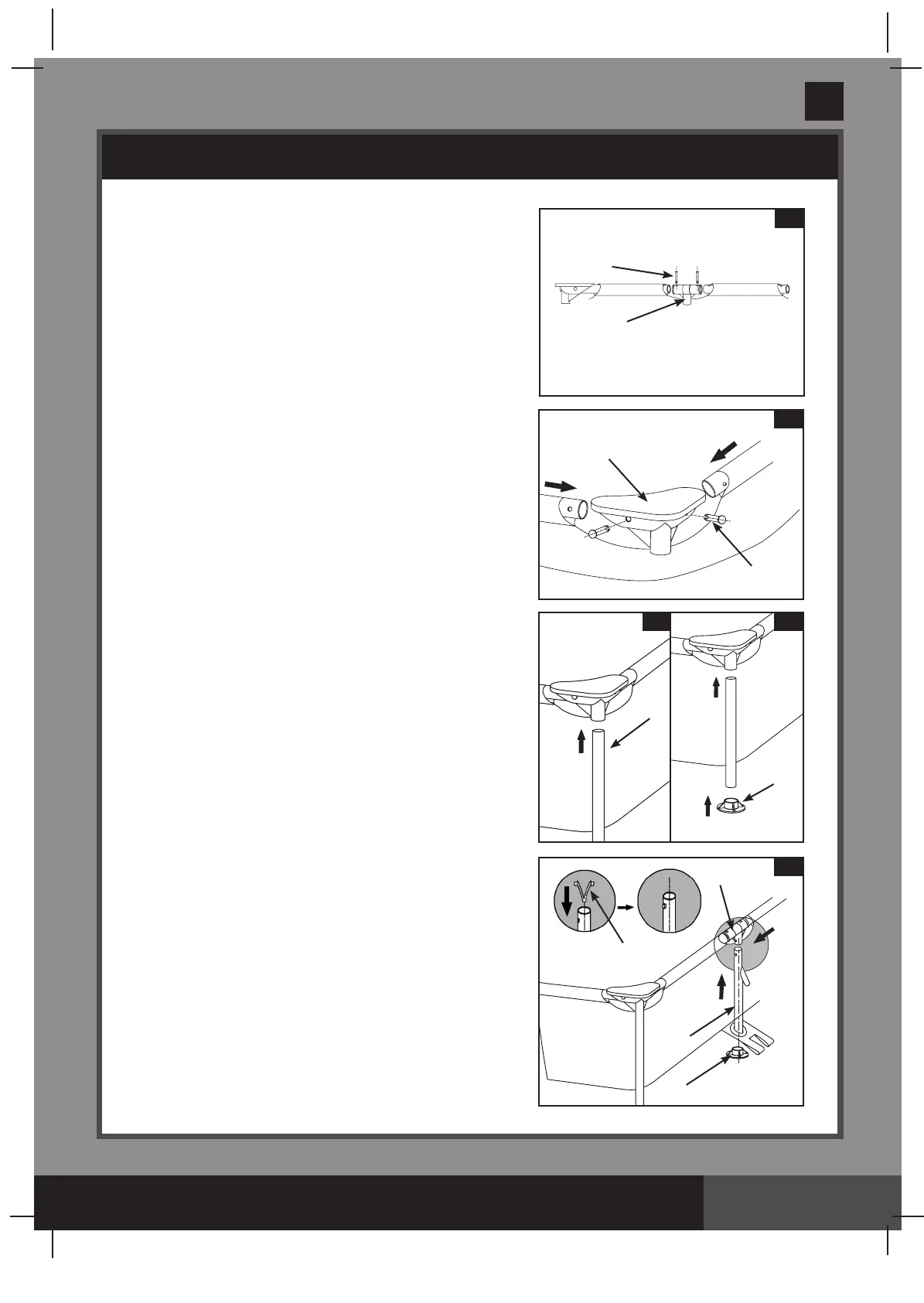

3.
Use “A-A” beams combination for pool’s short sides and
insert “B-C-C-B” beams into the long sides of the pool.
Insert the beam through the “T” joint
(7)
at each liner
sleeve middle opening. Secure the joints using the pins
(6)
(see drawing 3)
.
4.
Connect the corner joints
(5)
to the horizontal beams at
4 corners. Secure the joints with the pins
(6)
by inserting
them into the pre-drilled holes
(see drawing 4)
.
5.
Connect the vertical corner legs
(4)
to the corner top rail
joints
(5) (see drawing 5)
.
6.
Attached the leg's end cap
(13)
to the bottom of the
vertical legs
(4) (see drawing 6)
.
7.
Pull the restrainer straps out from under the liner. Connect
the "Y" joint vertical legs
(9)
to the "T" joints
(7)
and secure
these joints using the preinstalled spring-loaded pins
(8)
.
Also align the restrainer strap holes with the base of
"Y" joint vertical legs
(9)
. Attached the leg's end cap
(13)
to
the bottom of the "Y" joint vertical legs
(9) (see drawing 7)
.
7
7
8
9
3
7
6
4
5
6
13
6
13
4
5
