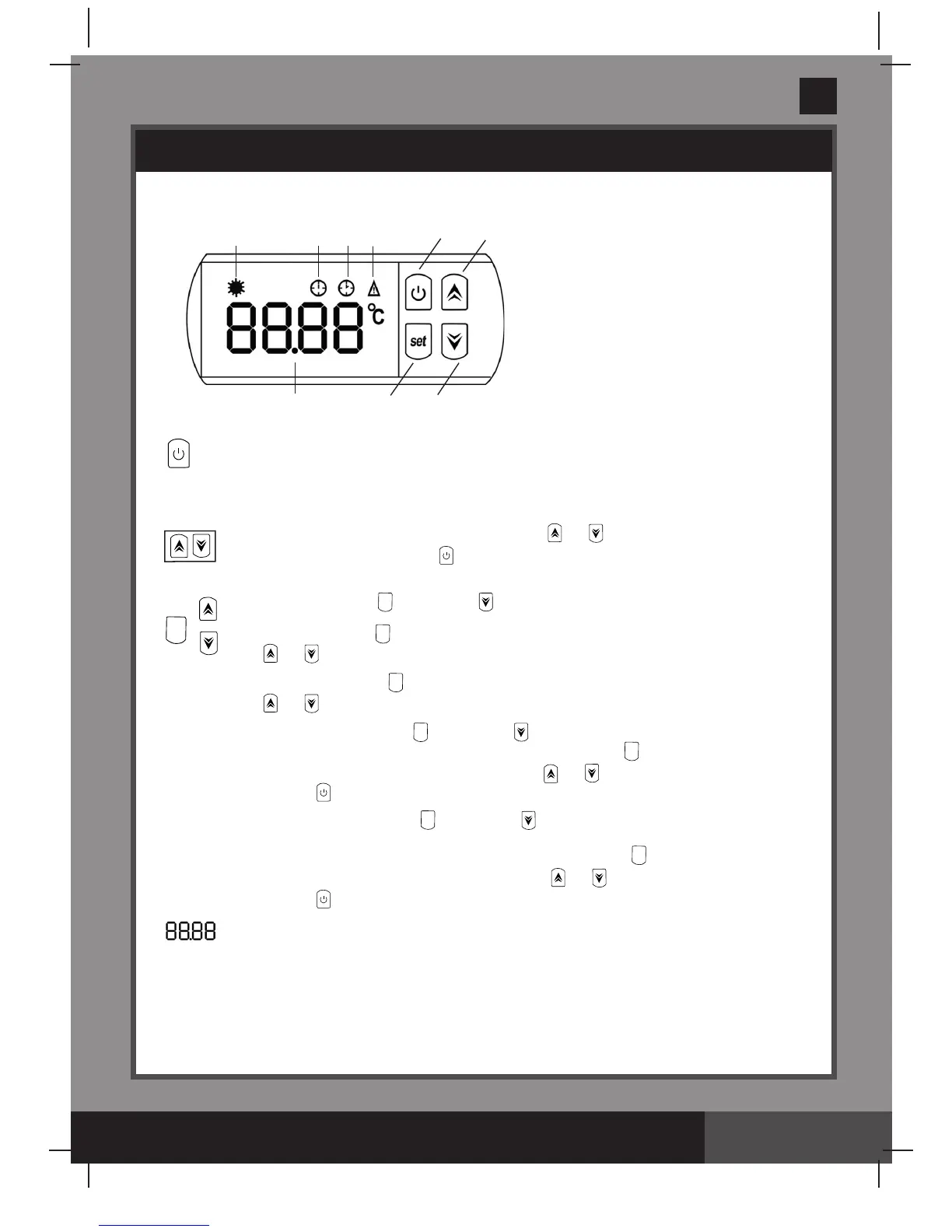

DISPLAY CONTROL PANEL OPERATION
A: On/Off Button
B: Temperature Increase Button
C: Temperature Decrease Button
D: Set Button
E: LED Display
F: Heating
G: Timer Off
H: Timer On
I: Warning
CONTROL UNIT PANEL
On/Off Button:
Press this button to start the heat pump, the LED display will show the
inlet water temperature and current working mode after 5 seconds. Press once again
to stop the heat pump, the LED display shows “OFF”.
NOTE:
Press this button to save all operation settings and quick-exit the program.
Temperature Adjustment Buttons:
Press the or button to set the desired
water temperature, then press to save setting and exit. Temperature range: 15 to
40°C.
TIME Setting:
Press
set
, then press to enter into “TIME” display.
Hour setting:
Press
set
again to enter into “HOUR” setting, “HH” flashed, then press
the or button to adjust the HOUR from 0 to 23.
Minute setting:
Press
set
to enter into “MINUTE” setting, “MM” flashed, then press
the or button to adjust the MINUTE from 0 to 59.
TIMER ON setting:
Press
set
, then press twice to enter into “TIMER ON” setting.
When the starting time is shown on the LED display, press
set
to confirm to enter into
“TIMER ON” setting interface, finally press the or button to adjust the starting
time. Press to save setting and exit.
TIMER OFF setting:
Press
set
, then press 3 times to enter into “TIMER OFF”
setting.
When the stopping time is shown on the LED display, press
set
to confirm to enter into
“TIMER OFF” setting interface, finally press the or button to adjust the stopping
time. Press to save setting and exit.
LED Display:
Once plugged in the LED displays “8888” then “OFF”.
A
B
CD
E
F
G
I
H
set
+
