SSEETTUUPP IINNSSTTRRUUCCTTIIOONNSS
FILTER PUMP STATIONARY MOUNTING OPTION
-- (3) x M6 HEXAGON HEAD BOLTS
-- (3) x M6 HEXAGON LOCK-NUTS
135mm
135mm
135mm
135mm
135mm
135mm
There are three mounting holes located at the bottom of the filter pump base.
These holes are provided because various country’s regulations, especially in the
European community, require the filter pump to be secured to the ground or to a
base in a permanent upright position.
These three holes form a triangle pattern and are 135mm from each other. The
holes are slotted with a 7mm width.

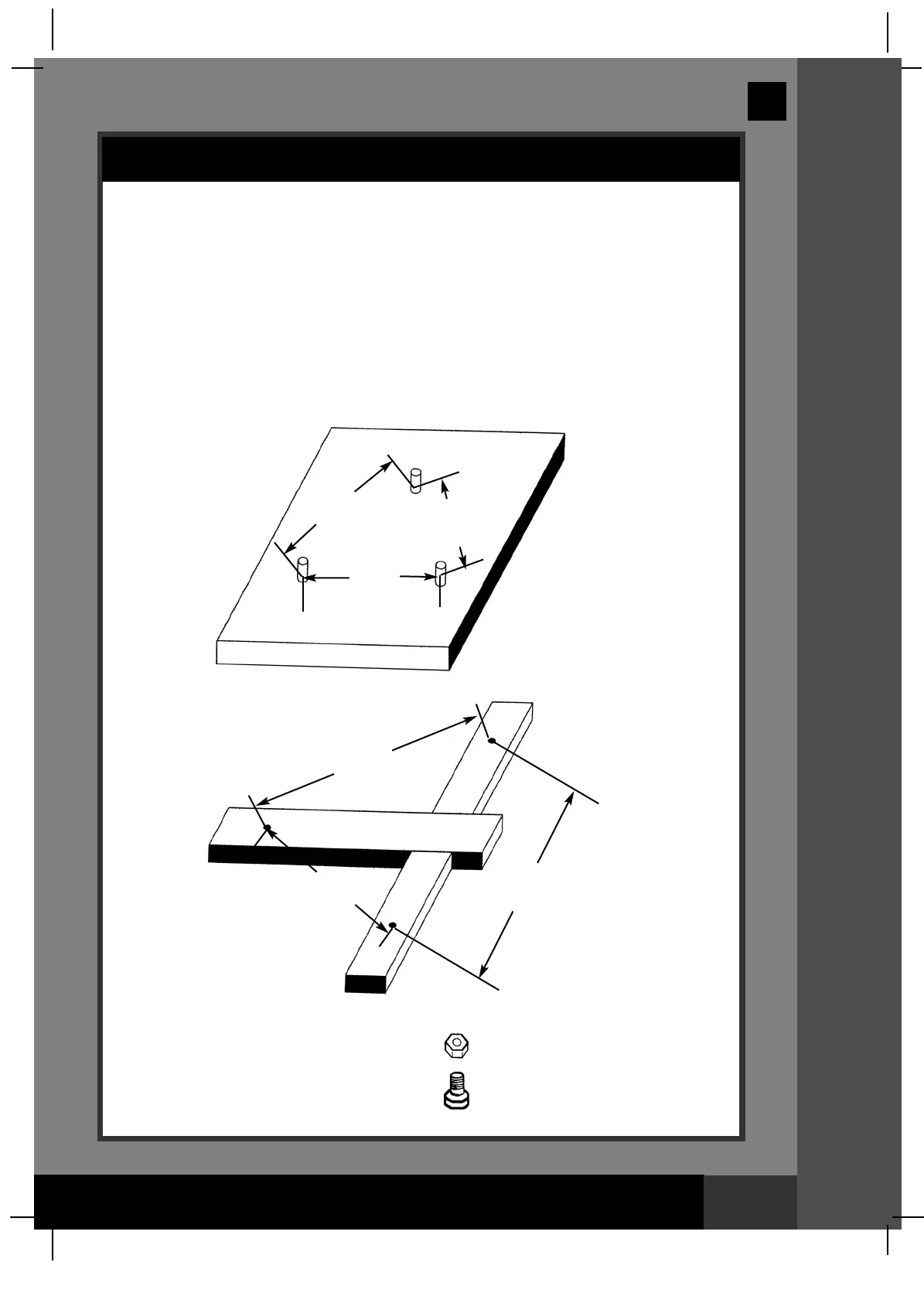

The filter pump can be mounted on a cement base or onto a wooden structure to
prevent accidental falling over. Total assembly must exceed 18kg. The drawings on
the following show two possible ways of upright mounting.
