(108GS) MODEL 636G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/23/2022
108
GS
SAVE THESE INSTRUCTIONS
English
Page 4

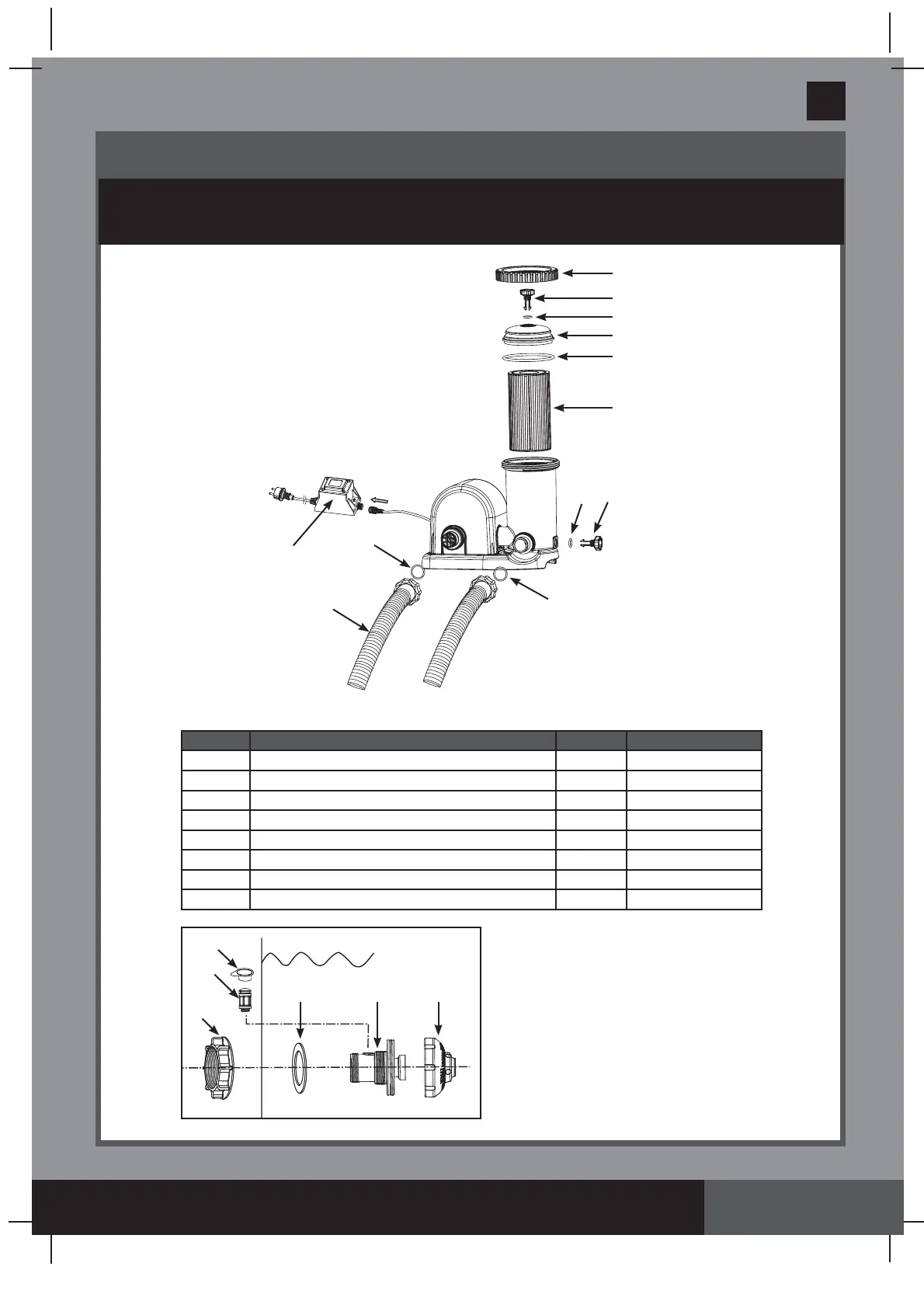

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
If the pump was purchased
individually, only these inlet fitting
parts are included. No tools are
required for the assembly.
NOTE:
Drawings for illustration purpose only.
Actual product may vary
. Not to scale.
2
3
4
5
1
6
3
7
2
8
10
10
Type of filter medium:
Synthetic cartridge #29000
REF. NO.
DESCRIPTION QTY. SPARE PART NO.
1 THREADED FILTER HOUSING COLLAR 1 10749
2
AIR RELEASE VALVE/SEDIMENT RELEASE VALVE
2 10460
3 VALVE O-RING
2 10264
4 FILTER HOUSING COVER 1 10750
5 FILTER HOUSING O-RING 1 10325
6 FILTER CARTRIDGE 1 29000
7 PUMP HOSE WITH NUTS 2 11009
8 TRANSFORMER 1 10985
12
16
18
13 17 15
INLET
