(108GS) MODEL 636G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/23/2022
108
GS
SAVE THESE INSTRUCTIONS
English
Page 7
POOL INLET
-

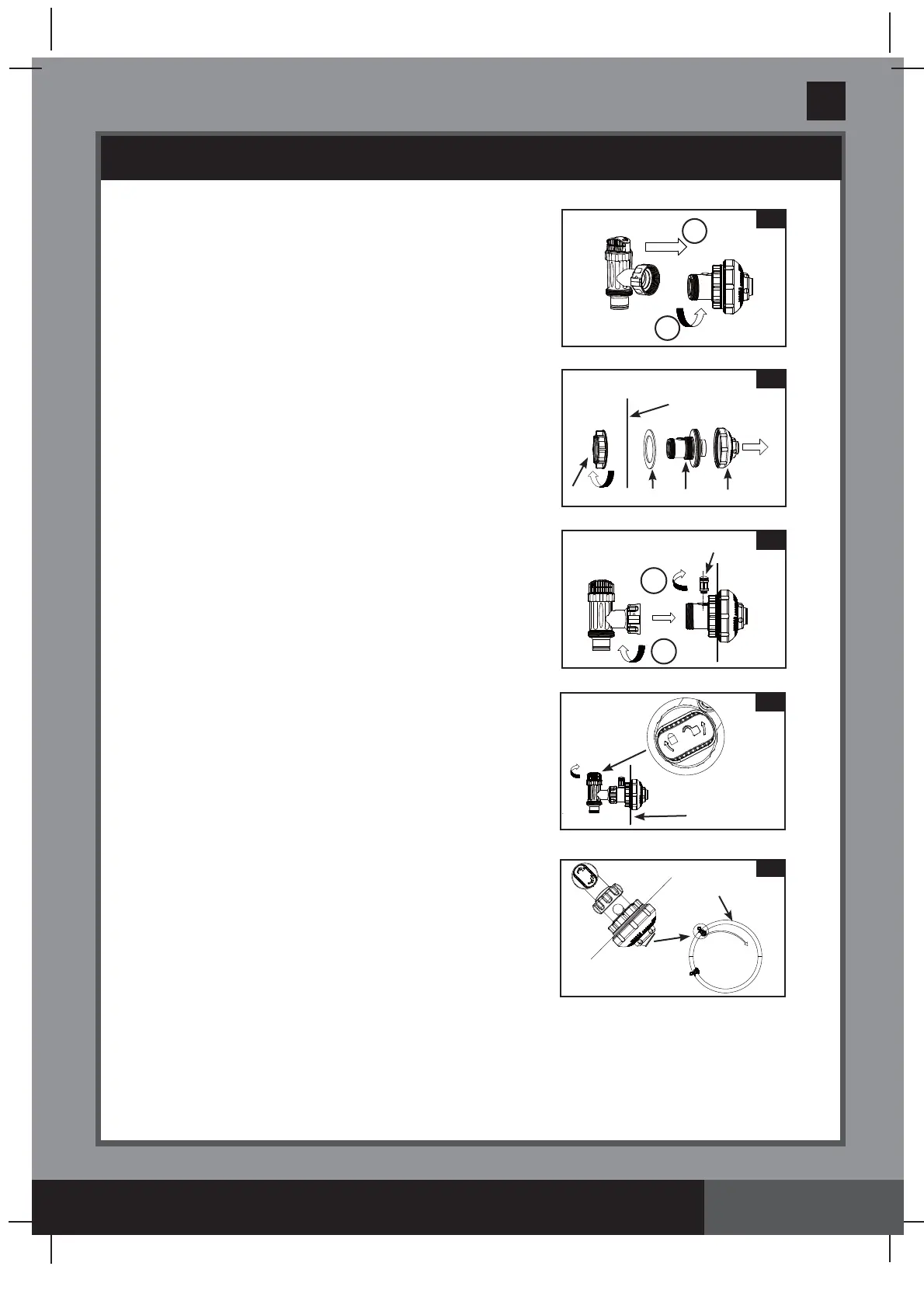

NOZZLE & PLUNGER VALVE SETUP
(
optional
)
5
2
1
7
1
2
8
INSIDE
LINER WALL
9
WATER
FLOW
POOL
6
13
17
15
INSIDE LINER
WALL
12
16
NOTE:
Do not cover the air jet
valve
(16)
with the valve cap
(18)
under normal situation or when
the pump is operating. See
Troubleshooting Guide section
for more details.
1.
In a counter-clockwise motion unscrew
plunger valve union from the inlet threaded air
connector
(17)
(see drawing 5)
Be careful not
to lose the step rubber washer
(11)
. Place the
plunger valve on the ground in a safe place.
2.
In a counter-clockwise motion unscrew the
strainer nut
(12)
from the inlet threaded air
connector
(17).
Leave the flat washer
(13)
on
the connector
(17)
.
3.
Install the nozzle and plunger valve at the
upper position of pool inlet.
From the inside of
the pool liner insert the nozzle union
(15 & 17)
into one of the pre-cut holes with the washer
remaining on the connector to be placed
against the inside of the liner wall.
4.
Before assembly, lubricate the threads with a
petroleum jelly. Then, with the flat side of the
strainer nut
(12)
facing the outside wall of the
liner in a clockwise motion screw the strainer
nut
(12)
back onto the inlet threaded air
connector
(17) (see drawing 6)
.
5.
Finger tighten the adjustable pool inlet jet
nozzle
(15)
and the strainer nut
(12)
onto the
inlet threaded air connector
(17)
.
6.
Grasp the plunger valve assembly. Make sure
the step washer
(11)
is in place.
7.
Screw the air jet valve
(16)
over the inlet
threaded air connector
(17).
NOTE:
Make sure
the air jet valve is securely tighten and facing
up. In a clockwise motion screw the plunger
valve union
back onto the inlet threaded air
connector
(17) (see drawing 7)
.
8.
In a clockwise motion turn the plunger valve
handle to close position. Ensure the plunger
valve is securely closed. This will prevent water
from flowing out during filling of the pool
(see
drawing 8)
.
9.
Adjust the direction of the nozzle head
pointing away from the pool outlet for a better
circulation result
(see drawing 9)
.
10.
The pool liner is now ready to be filled with
water. Consult the above-ground-pool owner’s
manual for the filling instructions.
