2. Secure the pole bracket
(7)
to the “U-shape” leg
with the U-bolt
(2)
and two nuts
(3)
. Clockwise
tighten the dovetail screws
(5)
using your fingers
only.
NOTE:
Do not over tighten or use tool such
as pliers.
3. Insert the assembled volleyball pole into the pole
bracket
(7)
. Secure the pole to the bracket with a
long Pin
(1)
. Clockwise screw in the two control
screws
(4)
to adjust the pole vertically position.
NOTE:
Adjust the pole inclination by adjusting the
two control screws
(4)
. Do not over tighten or use
tool such as pliers.
4. Attach two volleyball net fasteners
(10)
to the
volleyball pole. Ensure the volleyball net
fasteners
(10)
are facing outward.
5. Locate the opposite “U JOINT” and attach the
second pole bracket
(7)
to the “U JOINT”, repeat
steps #1 to #4.
6. Attach one side of the Volleyball Net
(11)
starting
from the top Volleyball Net Fastener
(10)
and
then the bottom fastener. Loop the rope around
the fastener
(10)
several times and secure the
end of the rope to the two notches in the fastener.
NOTE:
Adjust the length of the rope to be looped
around the fasteners depending on the size of the
pool. Repeat this procedure for the other pole.
Set Up Instructions (cont.)
3
2
1
4
4
7
1
4
4
8
3
1
2
10
10
2
10
2
1
11
7
5
2
3

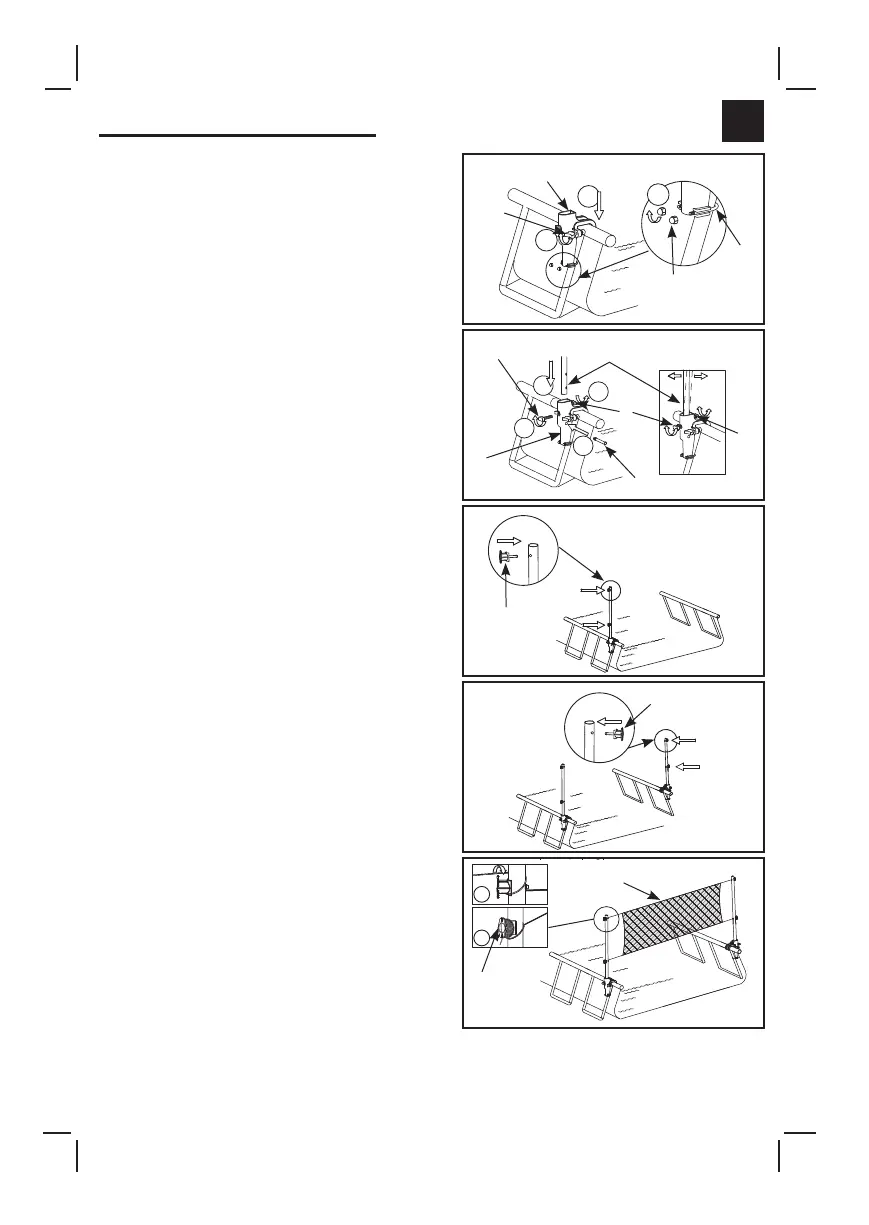

Fig (2)
