PPAARRTTSS RREEFFEERREENNCCEE

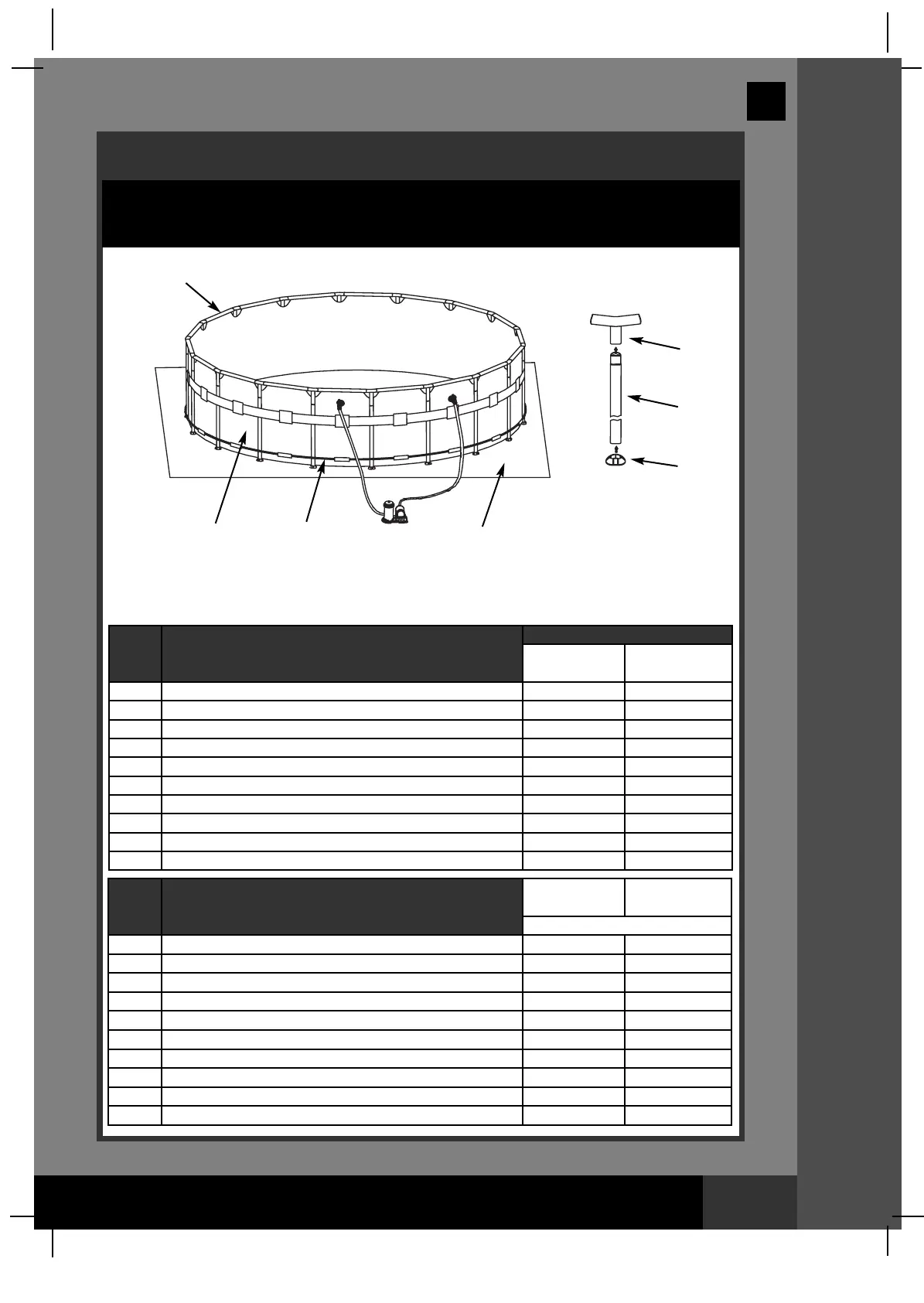

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.


16' (488 cm) & 18' (549 cm) models
1
2
3
4
5
7
6
NOTE: Drawings for illustration purpose only. May not reflect actual product. Not to scale.
REF
NO.
DESCRIPTION
POOL SIZE & QUANTITY
16'
(488cm)
18'
(549cm)
1 T - JOINT 16 18
2 VERTICAL LEG 16 18
3
LEG CAP
16 18
4
HORIZONTAL BEAM
16 18
5
POOL LINER (DRAIN VALVE CAP INCLUDED)
1 1
6
RESTRAINING ROPE
1 1
7 GROUND CLOTH 1 1
8 DRAIN CONNECTOR 1 1
9 DRAIN VALVE CAP 1 2
10
POOL COVER
1 1
REF
NO.
DESCRIPTION
16’ x 48”
(488cm x 122cm)
18’ x 52”
(549cm x 132cm)
SPARE PART NO.
1 T - JOINT 10982 10983
2 VERTICAL LEG 10981 10981
3
LEG CAP
10984 10984
4
HORIZONTAL BEAM
10980 10980
5
POOL LINER (DRAIN VALVE CAP INCLUDED)
11080 10989
6
RESTRAINING ROPE
10317 10317
7 GROUND CLOTH 18927 18933
8 DRAIN CONNECTOR 10201 10201
9 DRAIN VALVE CAP 11044 11044
10
POOL COVER
10754 18937
