119
A
SAVE THESE INSTRUCTIONS
(119IO) ULTRA XTR™ RECTANGULAR / PRISM FRAME™ POOLS ENGLISH 7.5” X 10.3” PANTONE 295U 05/19/2022
English
Page 9
POOL SETUP
(
continued
)
2.4
32’ X 16’
CORNER
JOINT
CORNER
JOINT
CORNER
JOINT
CORNER
JOINT
(A)
(F)
(D)
(E)
(E)
(D)
(F)
(E)
(E)
(C)
LINER
(B)
(B)
(B)
(B)
(B)
(B)
(C)
(A)
(B)
(B)
(B)
(B)
(B)
(B)

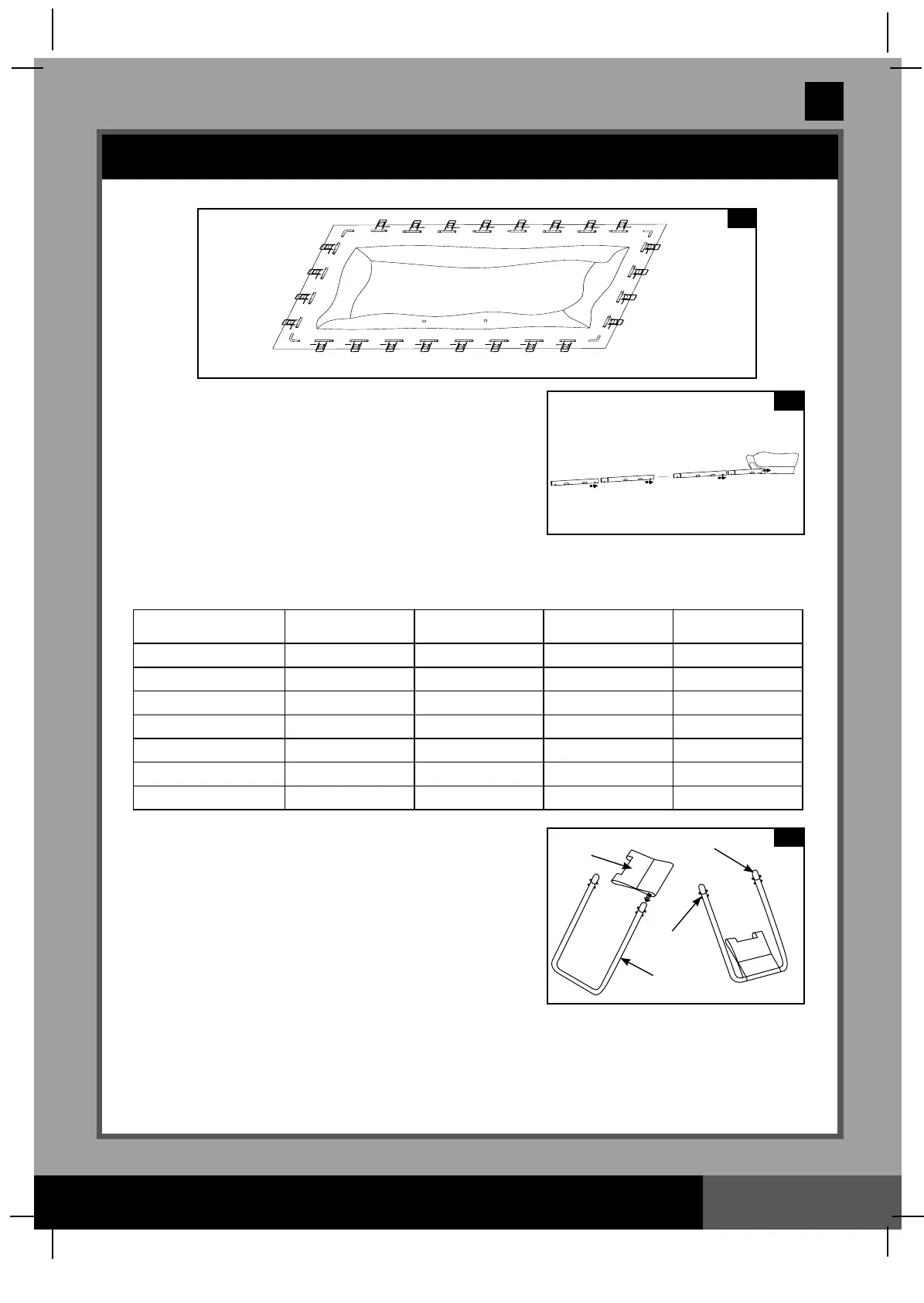

3. Be sure the liner is opened and spread out to its fullest
extent on top of the ground cloth. Starting with one side,
slide the “A” beams first into the sleeve openings located in
each corner. Continue with “B” beam snapping into the “A”
beam, and another “C” beam snapping into the “B” beam
(see drawing 3).
Keep the metal beam holes aligned with the white liner
sleeve holes.
Continue inserting all “A-B-C & D-E-F” beams into the sleeve
openings. Start the "D-E-F" combination for pool's short sides by inserting the "D" beam first into the
opening.
The combinations for beams are different for different sizes of pools, see the chart below for detail.
(Be sure all 4 sides end up with the metal beam holes aligned with the white liner sleeve holes.)
Size of Pool
No. of “U-shape” Leg
on longer side
No. of “U-shape” Leg
on shorter side
Horizontal Beam
Combinations on longer side
Horizontal Beam
Combinations on shorter side
157-1/2”x78-3/4” (400cm x 200cm)
4 2 A-B-B-C D-F
118-1/8”x68-3/4” (300cm x 175cm)
3 1 A-B-C D-E-F
15’ x 9’ (457cm x 274cm)
4 2 A-B-B-C D-F
16’ x 8’ (488cm x 244cm)
4 2 A-B-B-C D-F
18’ x 9’ (549cm x 274cm)
4 2 A-B-B-C D-F
24’ x 12’ (732cm x 366cm)
6 3 A-B-B-B-B-C D-E-F
32’ x 16’ (975cm x 488cm)
8 4 A-B-B-B-B-B-B-C D-E-E-F
4. Slide the restrainer strap (13) onto the large U-shaped side
support (11). Repeat for all restrainer straps and U-supports.
IMPORTANT: The liner is to remain flat on the ground
during the next step #5. This is why 5 - 6’ of clearance
space around the pool is necessary (see drawing 4).
4
13
9
10
11
3
(C)
(B)
(B)
(A)
To Next Page
