SAVE THESE INSTRUCTIONS
(58GS) MODEL 604G&638G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/16/2022
English
Page 7
There are three mounting holes located at the bottom of the filter pump base. These holes are
provided because various country’s regulations, especially in the European community, require
the filter pump to be secured to the ground or to a base in a permanent upright position.
For model 604G, these three holes form a triangle pattern and are 135mm from each other. For
model 638G, these three holes form a triangle pattern and are 145mm from each other. The
holes are slotted with a 7mm width.
The filter pump can be mounted on a cement base or onto a wooden structure to prevent
accidental falling over. Total assembly must exceed 18kg. The drawings on the following show
two possible ways of upright mounting.

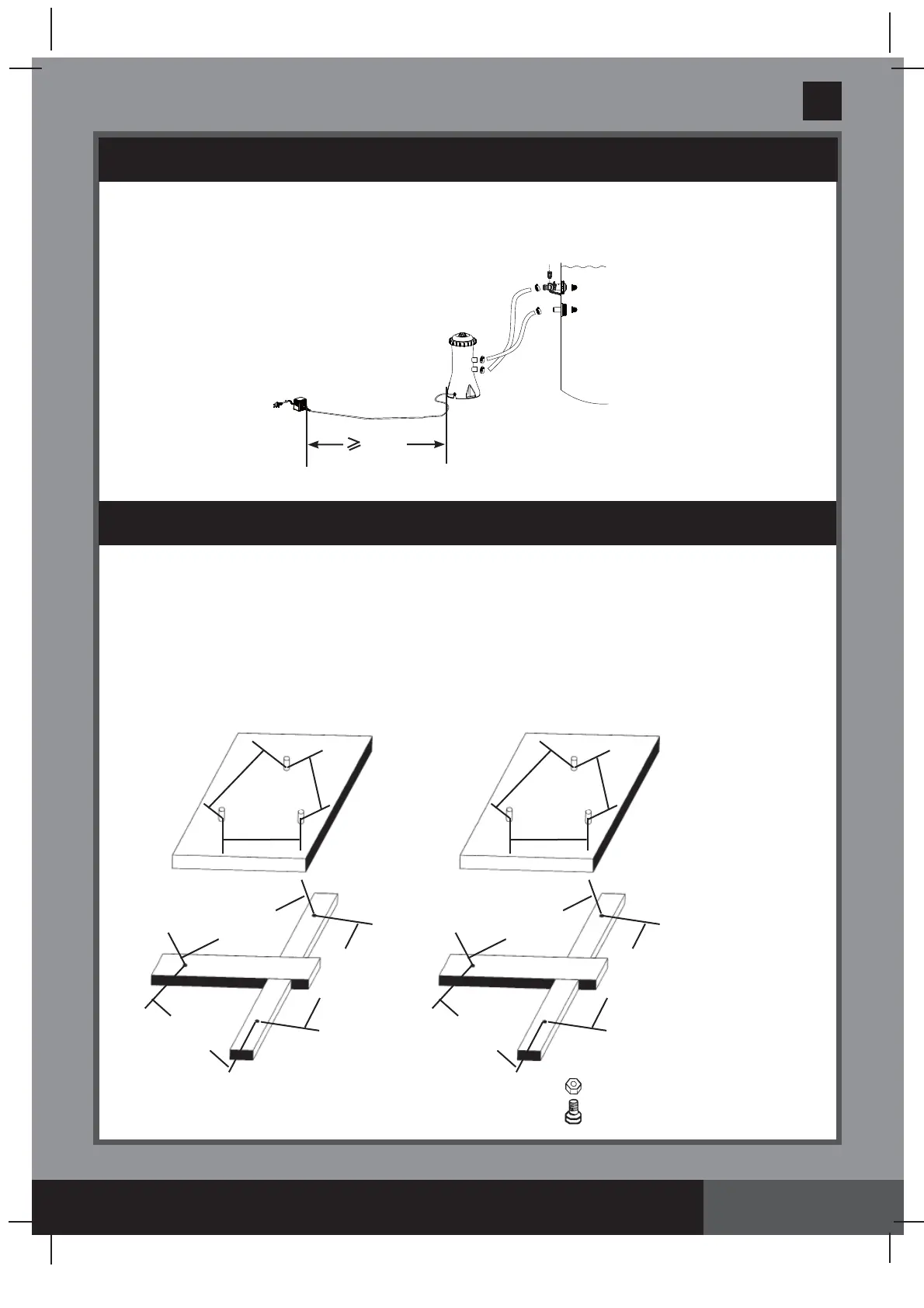

SETTING UP FILTER PUMP
For your own personal safety, it is very important that you place your transformer more than
3.5m away from your pump.
FILTER PUMP STATIONARY MOUNTING OPTION
3.5 m
-- (3) x M6 HEXAGON LOCK-NUTS
-- (3) x M6 HEXAGON HEAD BOLTS
145mm
145mm
145mm
145mm
145mm
145mm
135mm
135mm
135mm
135mm
135mm
135mm
604G: 638G:
