PAGE 34
INTIMIDATOR EV
ENGINE INFORMATION
Make Schabmueller
Type AC-powered, brushless
Peak HP 30 hp
Peak Torque 120 ft. lb.
INTIMIDATOR LUBRICATION
AND FLUID CHART
Item Lube Amount Method
Battery water level Distilled water Whatever it takes ¼˝ above metal plates in battery
Brake fluid DOT 3 Whatever it takes Maintain level between fill lines
Front differential oil Hydraulic Oil 18 ml -
Rear differential oil 80w-90 gear oil 550 ml -
Transmission/gearbox oil Dexron VI 700 ml -

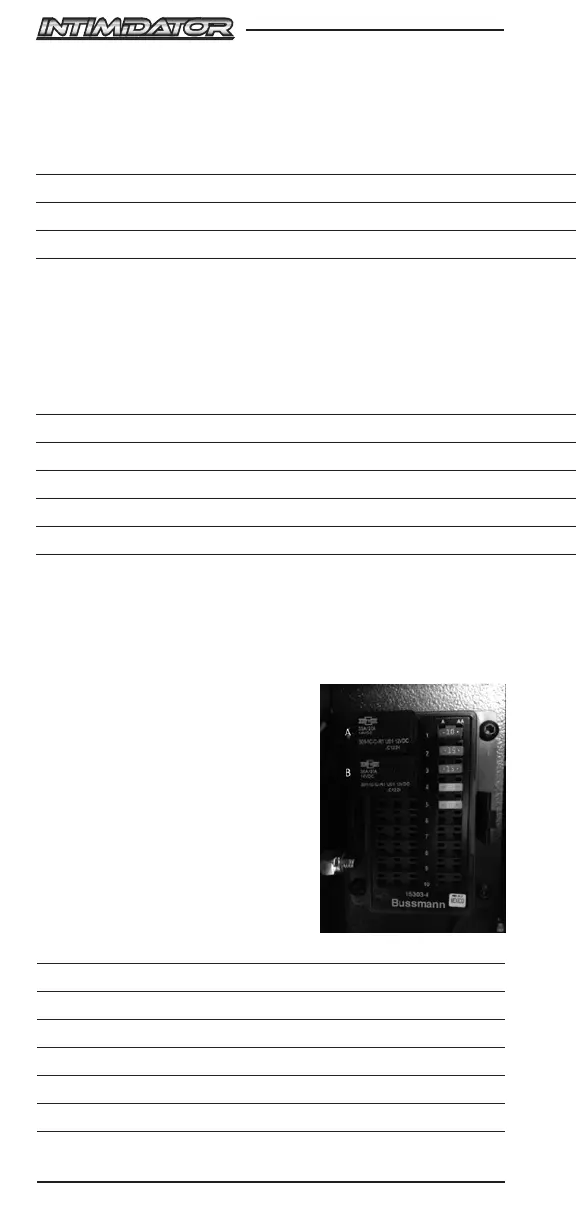

Fuses and Relays
Fuses can be found in two location; a fuse block under the hood and two
single fuses below the block.
Fuse Block
1 Differential Lock 10-amp
2 Headlights Low 15-amp
3 Headlights High (if equipped) 15-amp
4 Electric Actuator (if equipped) 20-amp
5 12-volt Accessory Outlet 20-amp
A Relay – Headlights Low -
B Relay – Headlights High -
