PAGE 36

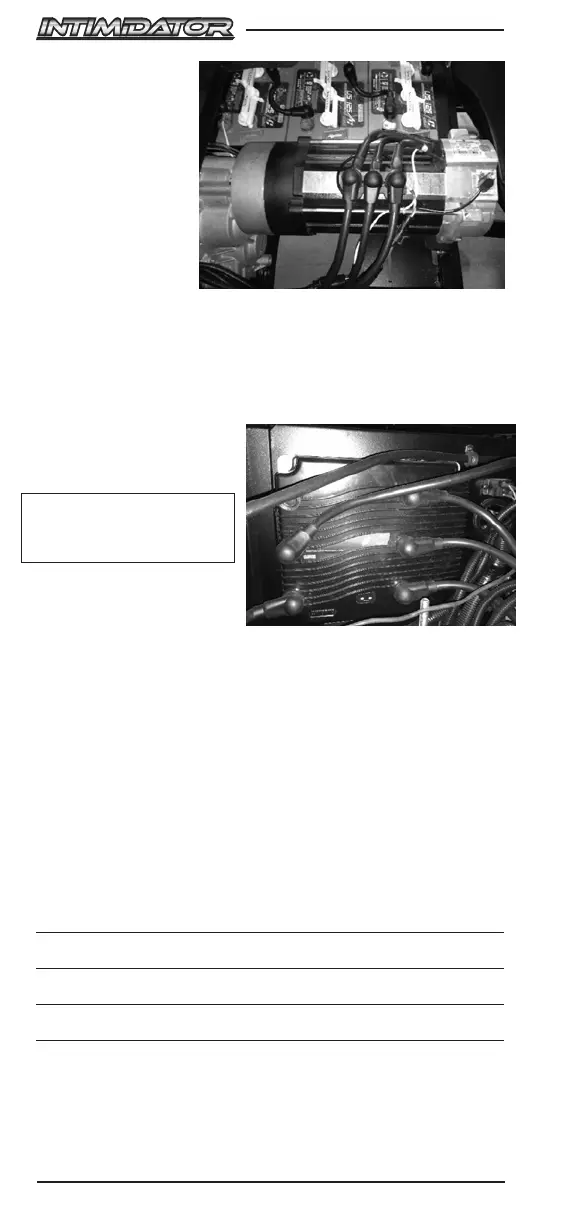

Motor
An AC-powered, 48 volt, brushless motor made by Schabmuller powers
your Intimidator EV. The IP45 motor is water resistant, not waterproof.
If the motor should overheat, the digital display on the right of the
speedometer will display “motor hot.” Stop the vehicle and allow time for
the motor to cool down before continuing.
Controller
NOTICE: The 650amp Curtis controller is water resistant, not waterproof.
Avoid spaying the controller with high-pressure water. Do not submerge the
controller.
The controller, or computer, is the brain of the vehicle. The vehicle rate of
acceleration and deceleration can be adjusted by some authorized dealers.
If a fault occurs, the controller will display error codes on the small digital
display, right of the speedometer.
The control has two status lights on the casing. Below is a troubleshooting
chart, explaining the lights.
TYPES OF LED DISPLAY
DISPLAY STATUS
Neither LED illuminated Controller is not powered on,
has a dead battery, or is
severely damaged.
Yellow LED flashing Controller is operating
normally.
Yellow and red LEDs both on solid Controller is in Flash
program mode.
Red LED on solid Watchdog failure.
Cycle KSI to restart.
Red LED and yellow LED flashing alternately Controller has detected a fault.
2-digit code flashed by yellow
LED identifies the specific
fault; one or two flashes by
red LED indicate whether first
or second code digit will
follow.
Curtis controller error codes can
be referenced at our website:
www.intimidator4x4.com
