SECTION 11—WHEELS AND CASTERS
At’m 46 Part No. 1125035
SECTION 11—WHEELS AND
CASTERS
WARNING
After any adjustments, repair or service and before use, make sure that all attaching
hardware is tightened securely - otherwise injury or damage may result.
Before performing any maintenance, adjustment or service verify that On/Off
switch on the joystick is in the Off position.
DO NOT USE YOUR WHEELCHAIR UNLESS IT HAS THE PROPER TIRE
PRESSURE (P.S.I.) - OTHERWISE THE WHEELCHAIR MAY NOT DRIVE
CORRECTLY, STOP CORRECTLY OR MAY EXPERIENCE ERRATIC
PERFORMANCE.
DO NOT overinflate the tires. Failure to follow these suggestions may cause the
tire to explode and cause bodily harm. The recommended tire pressure is listed on
the side wall of the tire.
Keep fingers and clothing clear of drive wheels.
CAUTION
As with any vehicle, the wheels, casters and tires should be checked periodically for
cracks and wear and should be replaced.
Replacing Front Casters
NOTE: For this procedure, refer to FIGURE 11.1.
1. Remove the mounting bolt, two spacers
and locknut that secures the caster to
the fork.
2. Remove the caster and discard.
3. Secure new caster to fork with the
existing mounting bolt, two spacers
and locknut. Securely tighten.
4. Repeat STEPS 1-3 for the other caster.

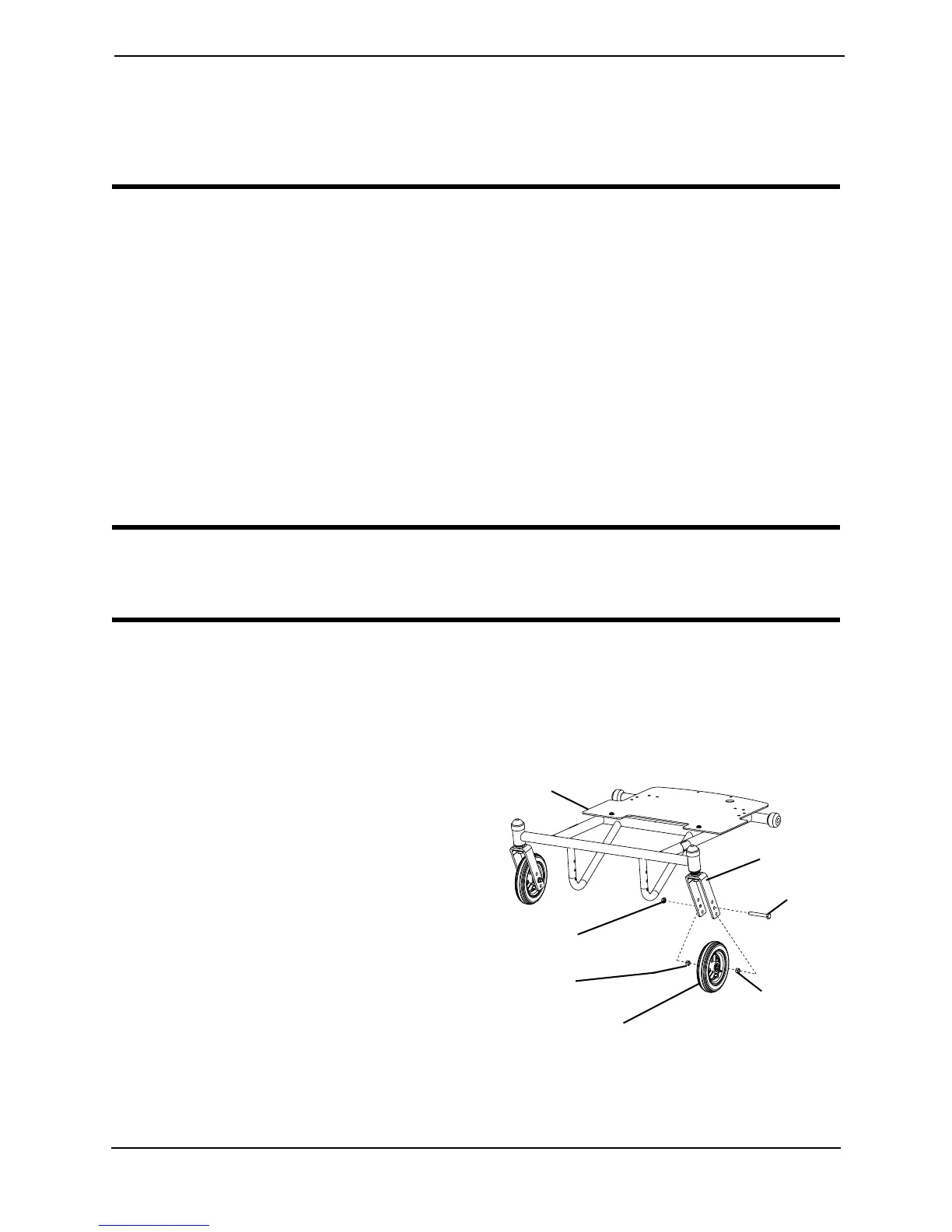

FIGURE 11.1 Replacing Front Casters
Front Caster
Locknut
Fork
Wheelchair
Frame
Mounting
Bolt
Spacer
Spacer
