Invacare Comet ULTRA - Replacing Curve Control Device

Comet
3.

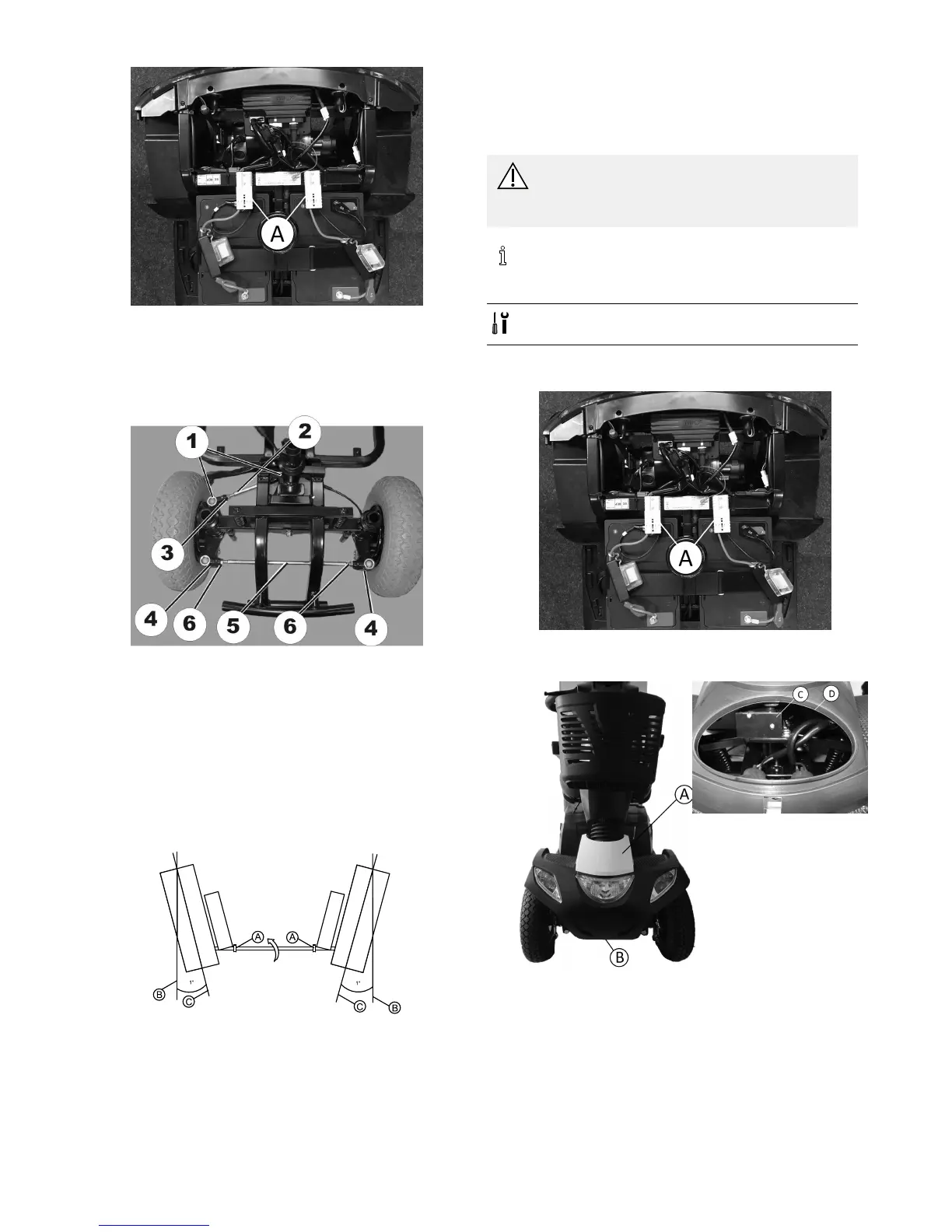

DisconnectbatterycableA.
4.Removesteeringcolumnandchassis.See4.8.4
Replacingsteeringcolumn,page23.
Replacingsteeringlink/couplingrod
1.
Removecirclip(1)onsteeringlink(2).
2.Replacesteeringlink.
3.Adjustlengthofsteeringlinkusingsettingscrews(3).
4.Removecirclip(4)oncouplingrod(5).
5.Replacecouplingrod.
6.Installpartsofsteeringlinkand/orcouplingrodin
reverseorder.
7.Testallfunctions(trialrun).
Adjustingcamber
1.LoosenscrewsA.
2.
Spinsteeringlinkupby0,5cm.Wheelsstandturned
inwardsby1°CfromneutralpositionB.
3.Installpartsofsteeringlinkand/orcouplingrodin
reverseorder.
4.Testallfunctions(trialrun).
4.9.4Replacingcurvecontroldevice
CAUTION!
Riskofaccident
Accidentalrollingcanleadtoaccidents.
–Securemobilitydeviceagainstrollingaway.
Whendisassembling,notethepositionofsmallparts
suchasscrewsandwashers.Putsmallpartsdownso
thattheycanbereassembledintherightsequence.
•Phillipsscrewdriver
•32mmwrench
1.Removeseat.
2.Removeshroud.
3.
DisconnectbatterycableA.
4.
RemovefrontshroudcoloredcapA.
5.YoucanseecurvecontroldeviceCthroughopeningD.
