9.

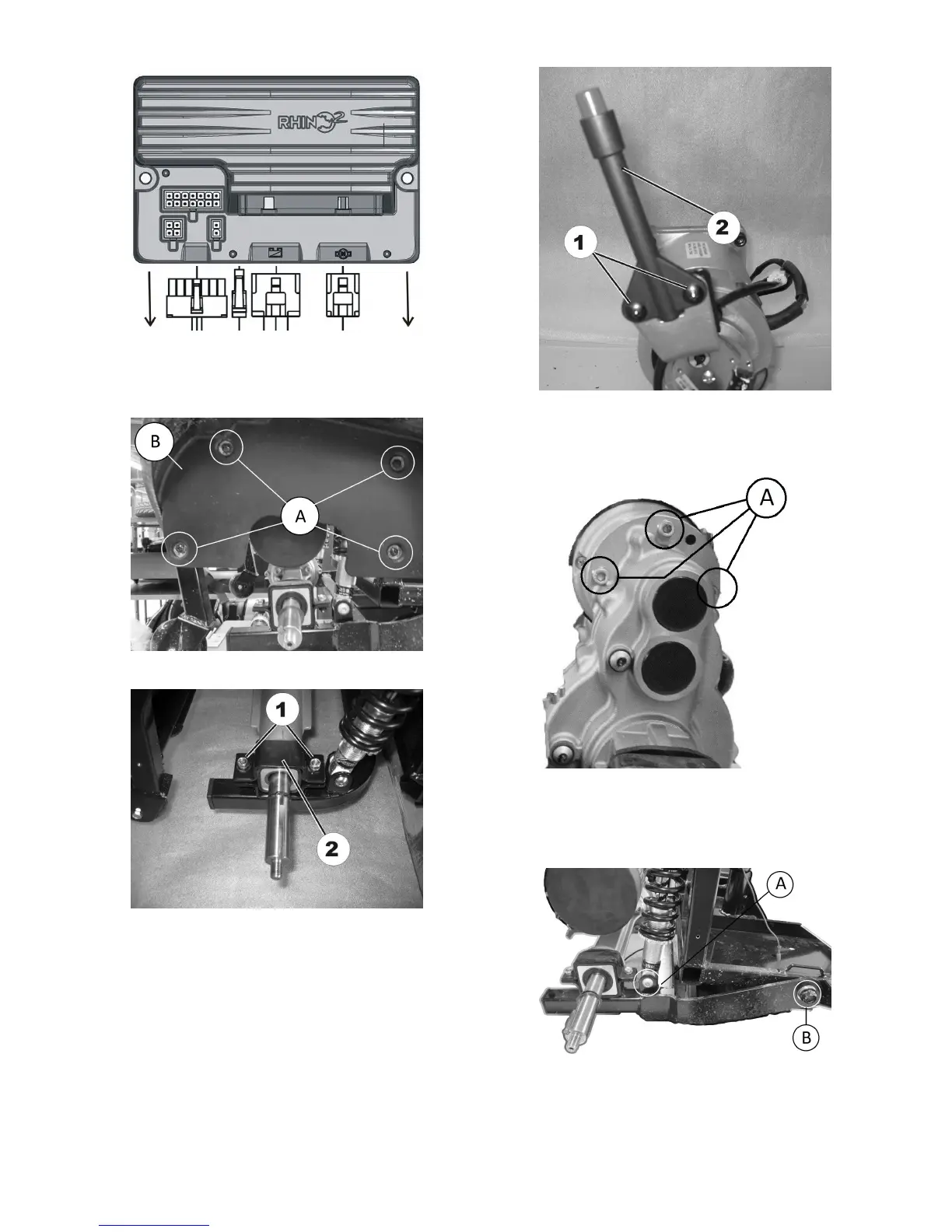

Disconnectplugsfrompowermodule.
•Disconnectmotorplug.
•Disconnectplugforelectromagneticbrake.
•Disconnectspeedometerplug.
10.
RemovescrewsAonmudguard.
11.RemovemudguardB.
12.
Removescrews(1)ondriveholder(2).
13.Removedriveholder(2).
14.
Removescrews(1)ondisengaginglever(2).
15.Removedisengaginglever(2).
16.Placesupportingwoodenblockunderswingarm.
Replacingdrivemotor
1.
LoosenthreeAllenscrewsA.
2.Liftmotoroutofholderandtakeitoutoftheframes
totheside.
3.Replacemotor .
Replacingdriveunit
1.
LoosenandremovescrewBonswingarm.Forreplacing
swingarm,see4.8.3Replacingswingarm,page22.
2.LoosenandremovelowerboltAonspring.
3.Liftdriveunitoutofholderandtakeitoutoftheframes
totheside.
4.Replacedriveunit.
