SECTION 10—SEAT TO FLOOR
Lightweight, Standard and Heavy Duty Wheelchairs 58 Part No. 1114811
8-INCH FRONT CASTERS

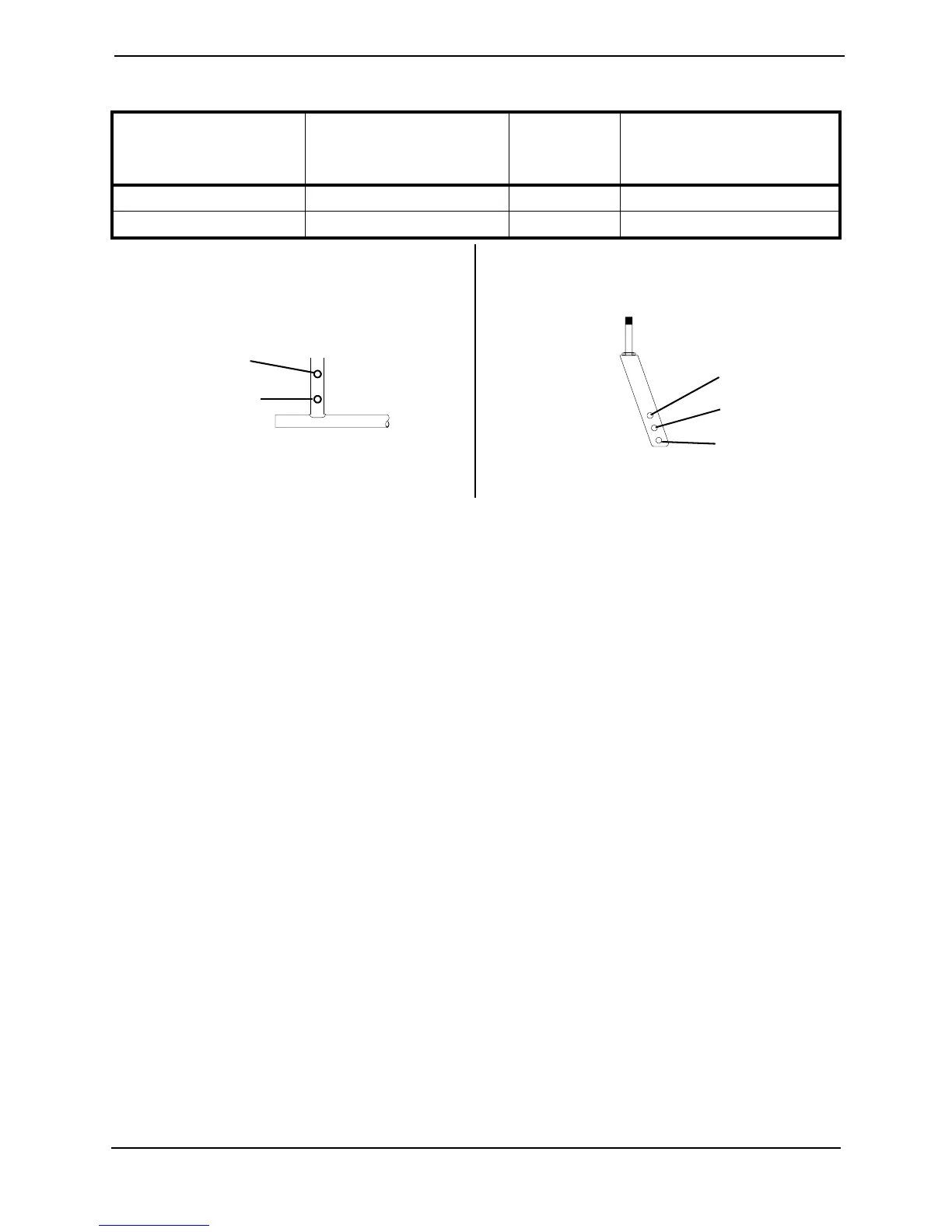

FIGURE 10.1 Changing Seat-to-Floor Height
SEAT-TO-FLOOR
HEIGHT
(IN INCHES)
FRONT CASTER
MOUNTING POSITION
REAR
WHEEL
SIZE
REAR WHEEL
MOUNTING POSITION
17½ Top 24-inch Top
19½ Bottom 24-inch Bottom
DETAIL “A” - REAR
WHEEL MOUNTING
POSITIONS-ADULT/HE
MI FRAME STYLE
DETAIL “B” - 8-INCH
FORK MOUNTING
POSITIONS
Top
Bottom
Top
Bottom
Middle
NOTE: Seat-to-Floor Height is not Adjustable for Wheelchairs with Fixed Frame Option (FF).
