REPLACING CIRCUIT BREAKER
(FIGURE 6)
Note: Note the proper positions of the metal connec-
tors before removing for proper reinstallation.
1. Remove the RED and BLACK metal connec-
tors of the power cables from the metal connec-
tors of the circuit breaker.
2. Remove the nut and washer that secures the
circuit breaker to the rear frame assembly.
3. Remove the washer from the circuit breaker.
4. Remove the circuit breaker.
5. Position the NEW circuit breaker so that it passes
through the mounting hole in the rear frame as-
sembly.
6. Position the NEW washer on the circuit breaker.
7. Position the NEW nut on the end of the circuit
breaker and securely tighten.
NOTE: Be sure the metal connectors are positioned
as noted above.
8. Connect the RED and BLACK connectors of the
power cables to the metal connectors on the NEW
circuit breaker as noted from STEP 1.

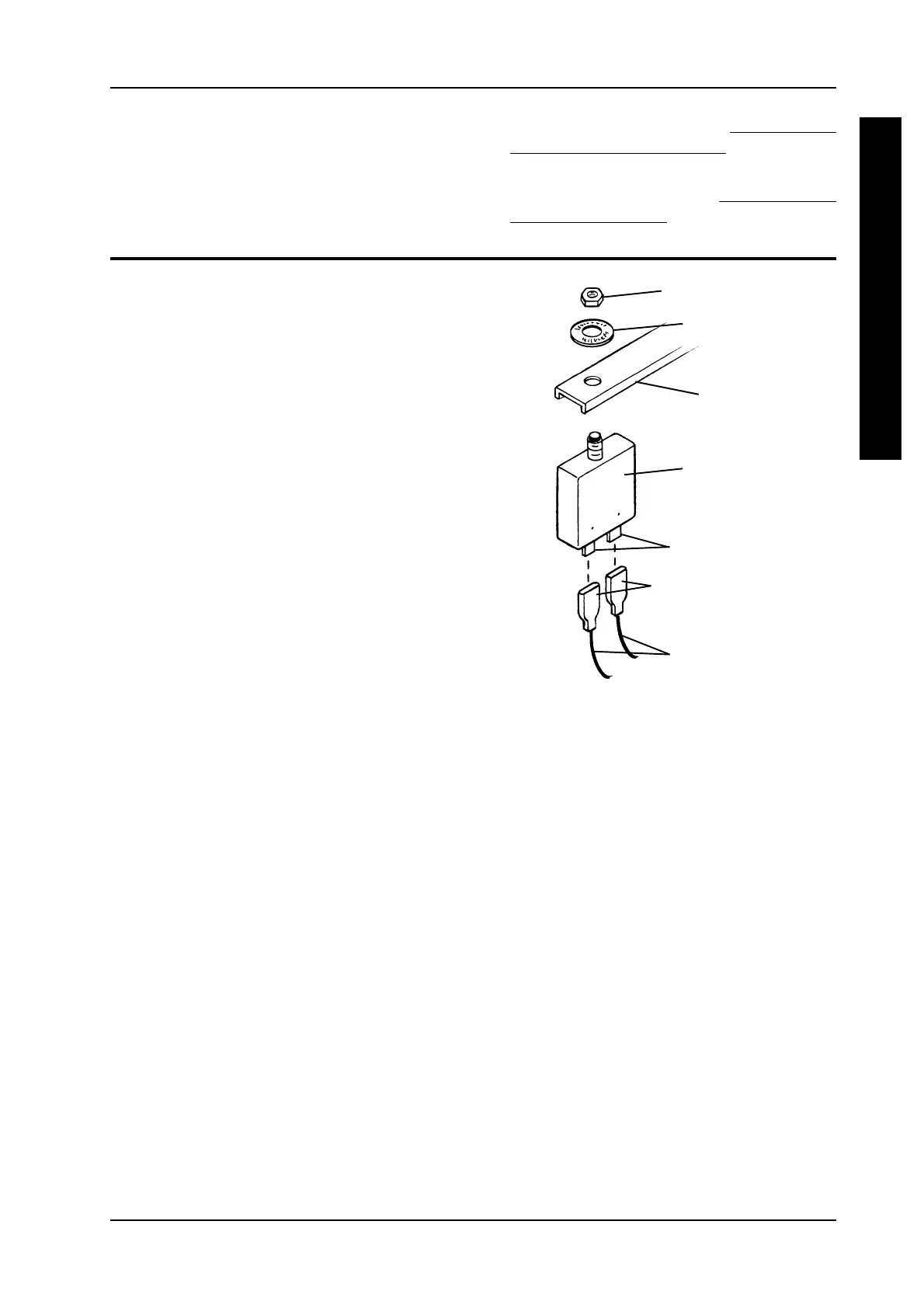

FIGURE 6 - REPLACING CIRCUIT BREAKER
Metal
Connectors
Red/Black Metal
Connectors
Power
Cables
Circuit
Breaker
Nut
Washer
Rear
Frame
Assembly
PROCEDURE 7CONTROLLER
8. Connect the metal connectors of the power wir-
ing harnesses to the metal connectors of the cir-
cuit breaker.
9. Connect the WHITE connector of the tiller wiring
harness to the WHITE connector of the control-
ler wiring harness
10. Reinstall the rear shroud. Refer to REMOVING/IN-
STALLING THE REAR SHROUD in PROCEDURE
9 of the Owner’s Manual, part number 1090132.
11. Reinstall the seat. Refer to
REMOVING/IN-
STALLING THE SEAT in PROCEDURE 5 of the
Owner’s Manual, part number 1090132.
