9.11.4.5 Adjusting the angle of the legrest
Pre-requisites:
• 6 mm Allen key
• Metal pin 3 mm ∅, approx. 10 cm long
• Hammer

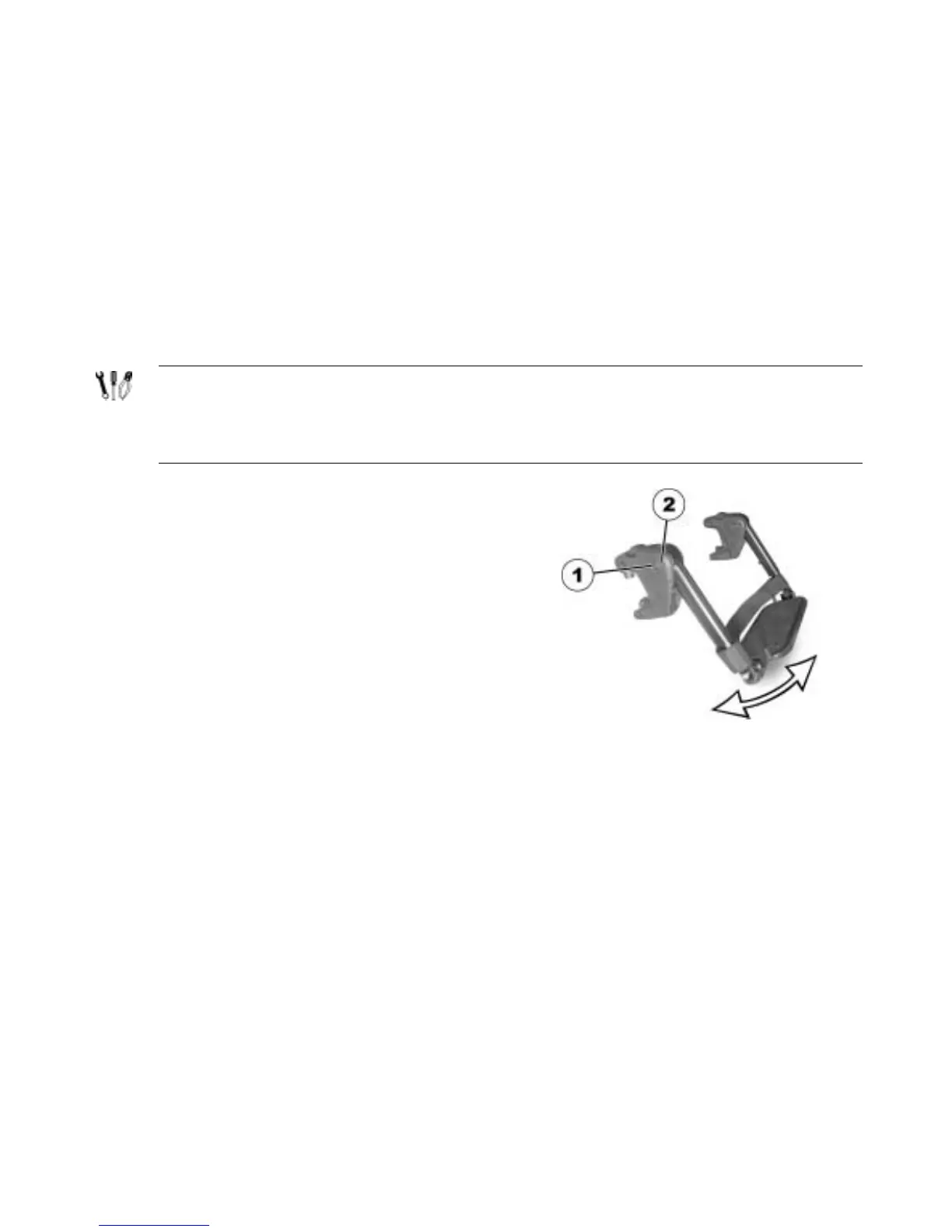

• Loosen the screw (1).
• Insert the metal pin into the hole (2) and knock
lightly with the hammer in order to loosen the
halves of the plastic jacket.
• Adjust the angle.
• Tighten the screw.
