Removable, Swing-away Adjustable Height Armrest

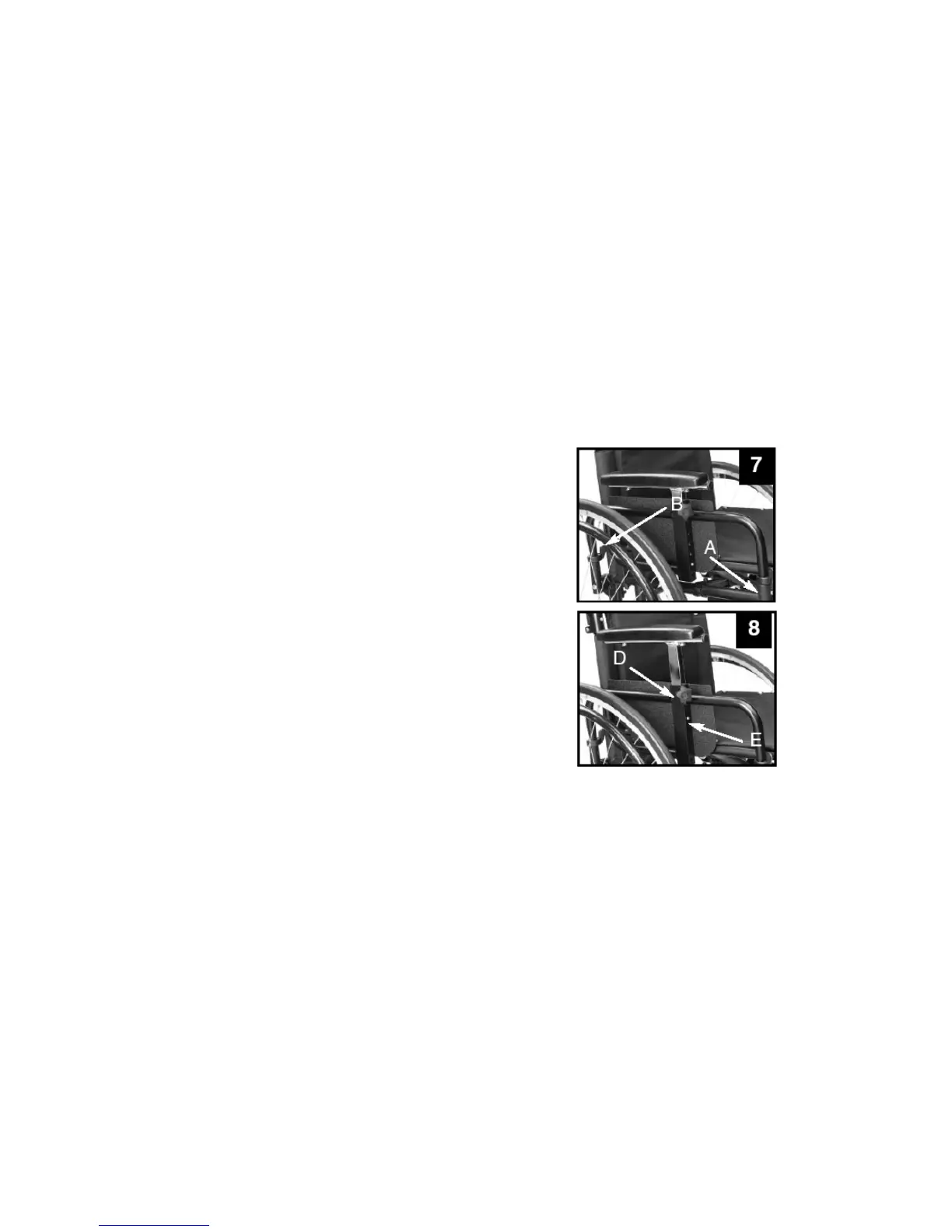

(Photographs 7 and 8)
The adjustable height armrest has a tube which supports the back and front locks as well as the adjustable
armpad tube. This armrest can be swung towards the back and can be removed, if required.
Use: To swing away, turn the front lock (A) in order to
release. Lift the armrest and position it towards the
back in order to carry out lateral transfers. Carry out
these operations in reverse order to replace the
armrest. Turn the front lock (A) in order to firmly
secure the armrest to its location.
Removal: Turn the front lock (A) and the back lock
(B) in order to remove the armrest.
Lift up the armrest. Carry out this operation in reverse
order to replace the armrest. Remember that the
incurved part of the tube should be facing forward.
Turn the front lock (A) and the lock (B) in order to
firmly secure the armrest to its locations.
Height adjustment: Loosen the hand wheel (D) and
push in the button spring (E), adjust to the desired
height and tighten the hand wheel (D). The hand wheel
(D) can be replaced by a screw (not included) for users
who do not often change the height of the armrest.
