12 EN
Europe

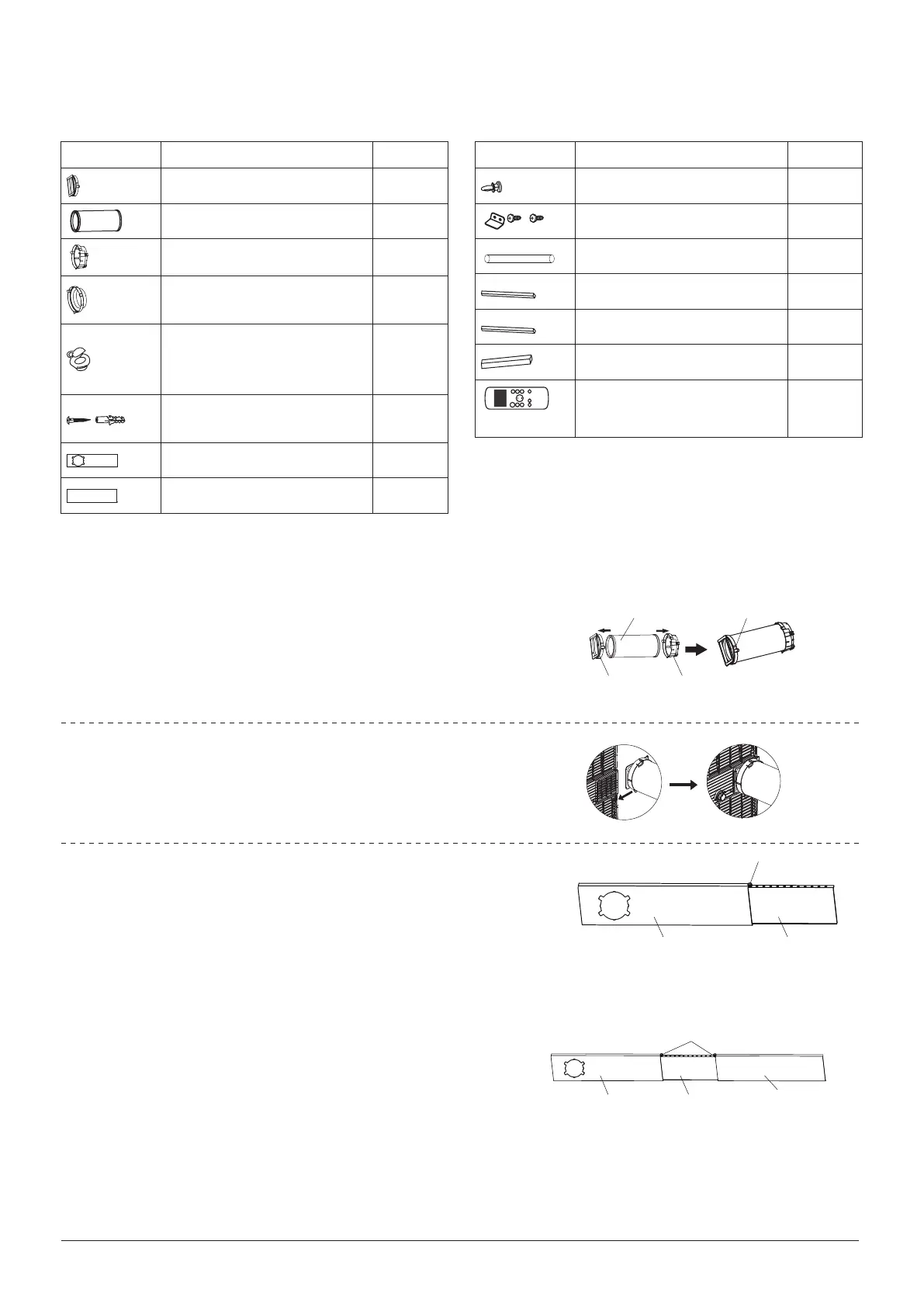

Part Description Quantity
Unit Adaptor
1 pc
Exhaust Hose
1 pc
*
Window Slider Adaptor
1 pc
*
Wall Exhaust Adaptor A
(only for wall installation)
1 pc
*
Wall Exhaust Adaptor B
(with cap) (only for wall
installation)
1 pc
*
Screw and anchor
(only for wall installation)
4 set
*
Window Slider A
1 pc
*
Window Slider B
1 pc
Part Description Quantity
*
Bolt
1 pc
*
Security Bracket and Screw
1 set
Drain Hose
1 pc
*
Foam Seal C (Non-adhesive)
1 pc
*
Foam Seal A (Adhesive)
2 pc
*
Foam Seal B (Adhesive)
2 pc
ON/OFF
TEMP
SHORT
CUT
TIMER
ON
TIMER
OFF
MODE
FAN
SLEEP
SWING
LED
Remote Controller
1 pc
NOTE: Items with * are optional. Slight
variations in design may occur.
Window Installation Kit
Step One: Preparation of the Exhaust Pipe
Apply pressure to the exhaust pipe and the window
adaptor one side, and the unit adaptor on the other, attach
with the use of the elastic buckles located on the adaptors.
Step Two: Install the Exhaust hose assembly to the unit
Attach the exhaust hose in the air outlet of the unit with the
use of the arrows.
Step Three: Preparing the Adjustable Window Slider
1. Depending on the window size, make necessary
adjustments on the window slider.
2. If the length of the window requires two window sliders,
use the bolt to fasten the window sliders once they are
adjusted to the proper length.
3. For some models, if the length of the window requires
three window sliders(optional), use two bolts to fasten the
window sliders once they are adjusted to proper length.
|Installation
ON/OFF
TEMP
SHORT
CUT
TIMER
ON
TIMER
OFF
MODE
FAN
SLEEP
SWING
LED
*
*
*
*
*
*
*
*
*
*
*
Press into
Press into
Unit adaptor Window slider
adaptor
Exhaust hose
Exhaust hose
assembly
Window slider A Window slider B
Bolt
Window slider A Window slider B
Window slider C
Bolts
To Next Page
