Unit Specications and Features
1
NOTE:
A guide on using the infrared remote is not included
in this literature package.

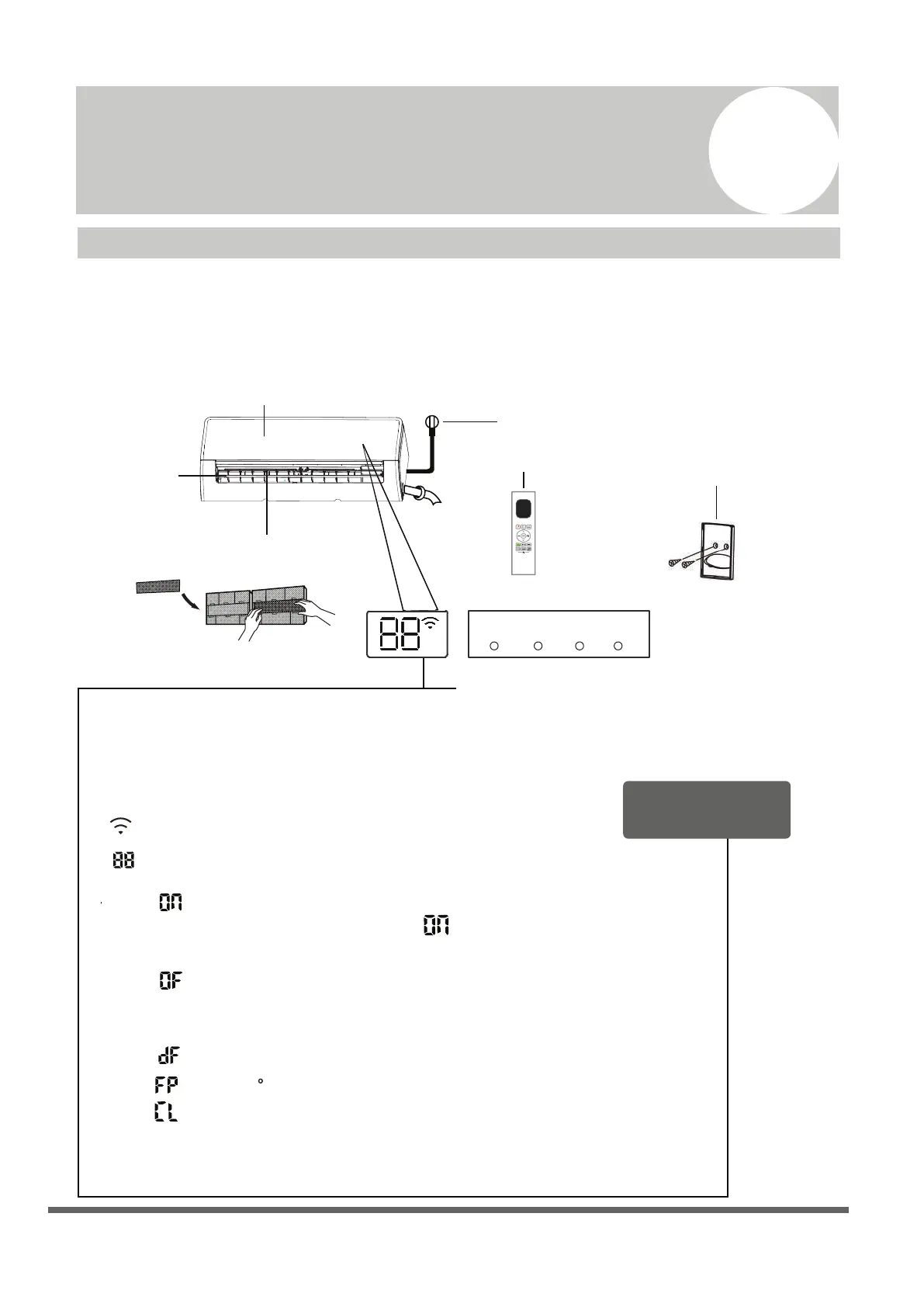

Unit Parts
fresh defrost run timer
Power Cable (not available)
Remote Control
Remote Control Holder
Louver
Front Panel
Display window(A)
Display window(B)
Display window(C)
“ ” for 3 seconds when:
• TIMER ON is set
• FRESH, SWING, TURBO, or SILENCE features are turned on
“ ” when Fresh feature is activated (some units)
“ ” for 3 seconds when:
• TIMER OFF is set
• FRESH, SWING, TURBO, or SILENCE features are turned off
“ ” when defrosting
“ ” when anti-cold air feature is turned on
“ ” when unit is self-cleaning
“ ” when freeze protection is turned on
“ ” when defrost feature is activated.
Display Code
Meanings
In Fan mode, the unit will display the room temperature.
In other modes, the unit will display your temperature setting.
,
,
“ ” Not available for all units.
When ECO function (some units) is activated, the
illuminates gradually one by one as --
-- --set temperature -- ...... in one second interval.
fresh defrost run timer
“ ” when the unit is on.
“ ” when TIMER is set.
When error occurs, it displays error code.
fresh
defrost
run
timer
“ ” when Wireless Control feature is activated (some units)
Unit Specifications and Features
Indoor unit display
Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit
may be slightly different. The actual shape shall prevail.
NOTE:
Different models have different front panels and display windows. Not all the display codes
describing below are available for the air conditioner you purchased. Please check the indoor display
window of the unit you purchased.
Display Code
Meanings
Power Cable (Some Units
(A) (B)
)
Remote Control
Remote Control Holder
(Some Units)
Functional Filter
(On Back of Main Filter - Some Units)
Louver
Front Panel
“ ” when Active Clean feature is turned on(For Inverter split type)
fresh defrost run timer
Display window
Displays temperature, operation feature and
error codes:
“ ” for 3 seconds when:
• FRESH, UV-C lamp, SWING, TURBO, ECO,or SILENCE feature is turned on
“ ” when Fresh and UV-C lamp(if any)feature is activated(some units)
“ ” for 3 seconds when:
• TIMER OFF is set
• FRESH, UV-C lamp, SWING, TURBO, ECO,or SILENCE feature is turned off
“ ” when defrosting
when unit is self-cleaning(For Fixed-speed type)
“ ” when 8 C heating feature is turned on(some units)
“ ” when defrost feature is activated.
“ ”
“ ” when the unit is on.
“ ” when TIMER is set.
fresh
defrost
run
timer
“ ” when Wireless Control feature is activated(some units)
• TIMER ON is set (if the unit is OFF, remains on when TIMER ON is set )
“ ”
