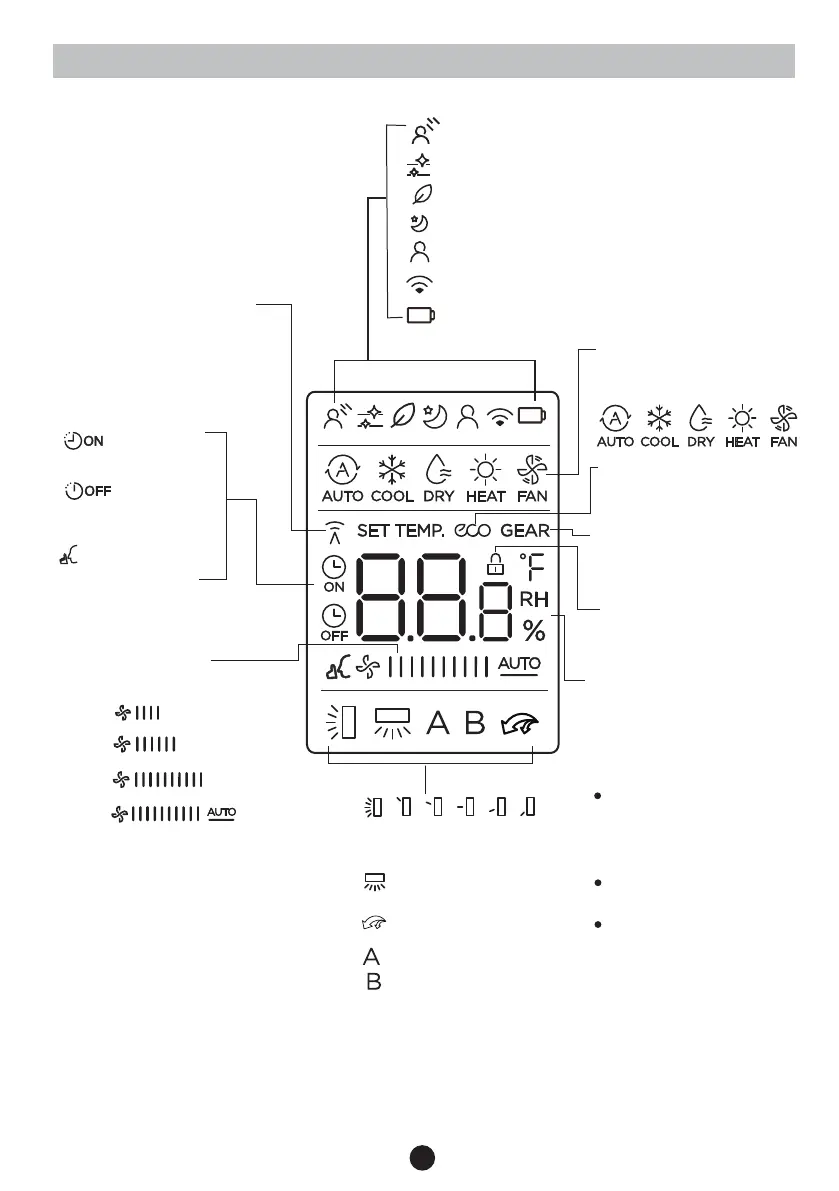

Remote Screen Indicators
Note:
All indicators shown in the figure are for the purpose of clear presentation. But during the actual
operation, only the relative function signs are shown on the display window.
Information are displayed when the remote controller is power up.
Transmission Indicator
MODE display
TIMER ON display
FAN SPEED display
TIMER OFF display
Silence feature
display
Horizontal louver
swing display
Vertical louver auto
swing display
TURBO mode display
Not available for
this unit
Temperature/Timer/Fan speed
display
Breeze Away display - not available
Active clean feature display - not available
Fresh feature display
Sleep mode display
Follow me feature display
Wireless control feature display
Low battery detection display(flashing)
LOW
MED
HIGH
AUTO
Lights up when remote
sends signal to indoor
unit
Displays selected fan speed:
Displays the current
including:
mode,
This fan speed can not be
adjusted in AUTO or DRY
mode.
ECO display
Displays when ECO
feature is activated
GEAR display
Displays when GEAR
feature is activated
LOCK display
Displays when LOCK feature
is activated.
Displays the set temperature
by default, or fan speed or
timer setting when using
TIMER ON/OFF functions.
Temperature range:
o
o
o
o
16-30 C //60-86 F
Timer setting range:
0-24 hours
Fan speed setting range:
AU -100%
This display is blank when
operating in FAN mode.
(20-28 C/68-82 F)
(Model dependent)
05
Model: RG10A1(D2S)/BGEF
Starts and stops the horizontal
louver movement. Hold down
for 2 seconds to initiate vertical
louver auto swing feature.
ON/OFF
SET
Turns the unit on or off.
MODE
OK
TIMER
FRESH
CLEAN
LED
Turbo
ECO/GEAR
Scrolls through operation modes
as follows:
AUTO
COOL
DRY
HEAT FAN
FAN SPEED
SWING
Increases temperate in
1°C (1°F) increments.
Max. temperature is
30°C (86°F).
NOTE: Press together &
buttons at the same time
for 3 seconds will alternate
the temperature display
between the °C & °F.
TEMP
TEMP
Used to confirm the selected
functions
Decreases temperature
O O
in 1 C(1 F) increments.
Min. temperature is
O O
16 C(60 F).
Used to starts and stops the
Fresh feature.
Set timer to turn unit on or off
ECO GEAR(75%)
GEAR(50%)
mode ECO
......
Scrolls through operation
functions as follows:
Breeze Away( ) Sleep
( )
Follow Me( )
AP mode( ) Breeze
Away ...
The selected symbol will
flash on the display area,
press OK button to confirm.
Selects fan speeds in the
following order:
AU
20%
60% 40% 80% 100%.
Press the TEMP or button
to increase/decrease the fan
speed in 1% increments.
Enables unit to reach pr
temperature in shortest
possible time
Previous setting
Used to start/stop the Self
Clean or Active Clean function.
(Model dependent, please refer
to the USER’S OPERATION &
INSTALLATION MANUAL).
Turns indoor unit’s LED display
and air conditioner buzzer on and
off (model dependent), which
create a comfortable and quiet
environment.
NOTE: HEAT mode is not
supported by the cooling only
appliance.
Press this button to enter the
energy efficient mode in a
sequence of following:
