44
Note: The network address are the Dip-switch F1 address plus Rotary switch ENC3 address.
10.5.4.2 If it receives the network address set by remote controller, the network address will be
changed .If it receives the cancel signal of network address set by remote controller, the network
address will be disposed according to the setting of Dip-switch F1 and Rotary switch ENC3.
10.5.4.3 The network address is useless for 4-cored wired controller, only valid for Central controller
and Non-polar wired controller.
10.5.5. Non-polar wired controller
10.5.1 Each Non-polar wired controller can be connect to Max. 16 indoor units .All the indoor units
must be the same series, and in the same network. The address of Multi-function board must be set
differently. The connection method must be Bus type.
10.5.2 The setting state are the same for all the indoor units connected to the same Non-polar wired
controller
10.5.6.Alarm port output
10.5.6.1 When the Air-condition in off state, the output signal is closed.
10.5.6.2 When the Air-condition in malfunction state, the output signal is closed.
10.5.6.3 When the Air-condition in on state, the output signal is disconnected.

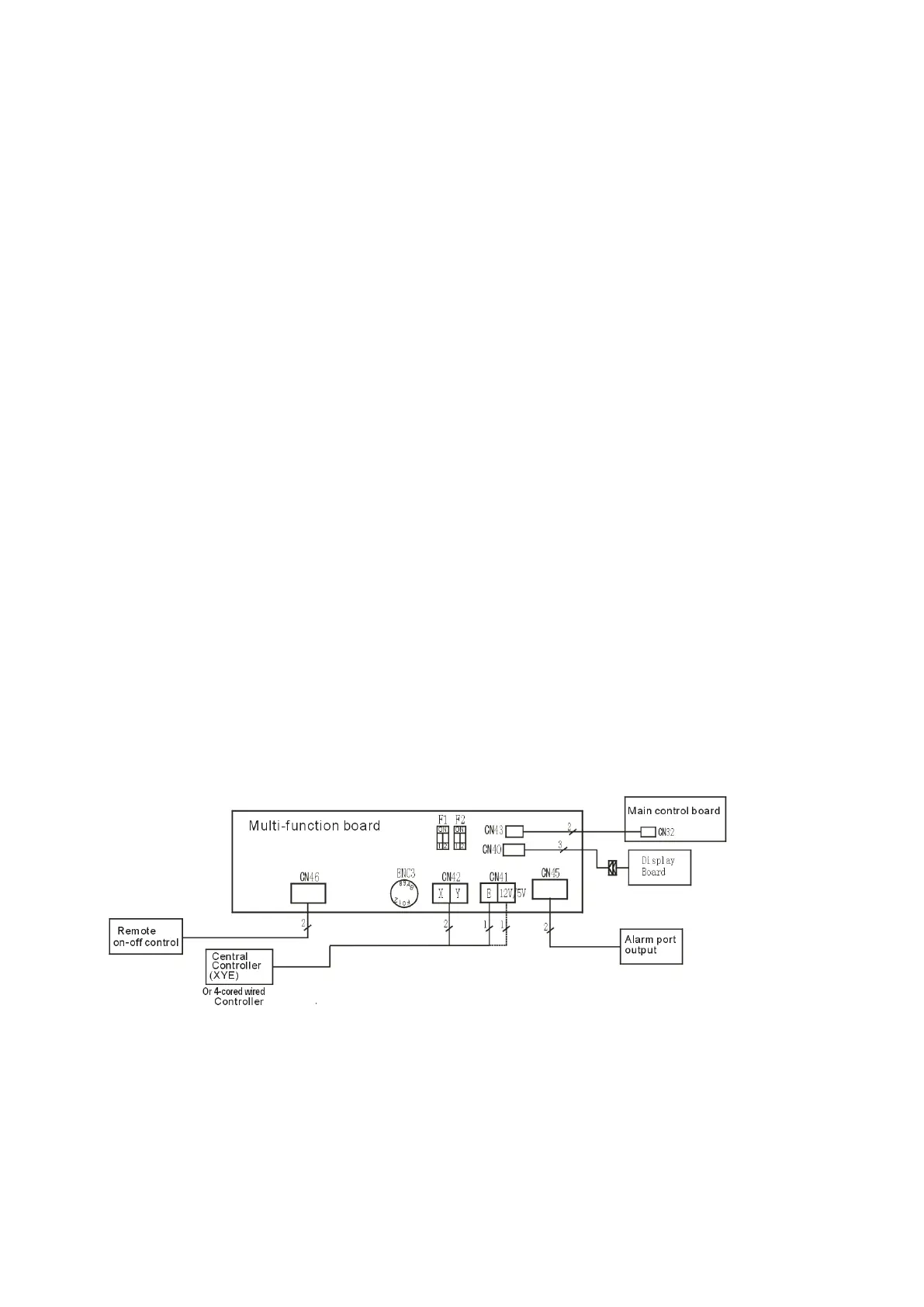

10.5.7．Wiring diagram
10.5.7.1 Connected to 4-cored wired controller or Central controller
Note: It must use shield cables to connect with 4-cored wired controller and Central controller.
The length should not exceed 50m.
10.5.7.2 Connected to Non-poplar wired controller
To Next Page
